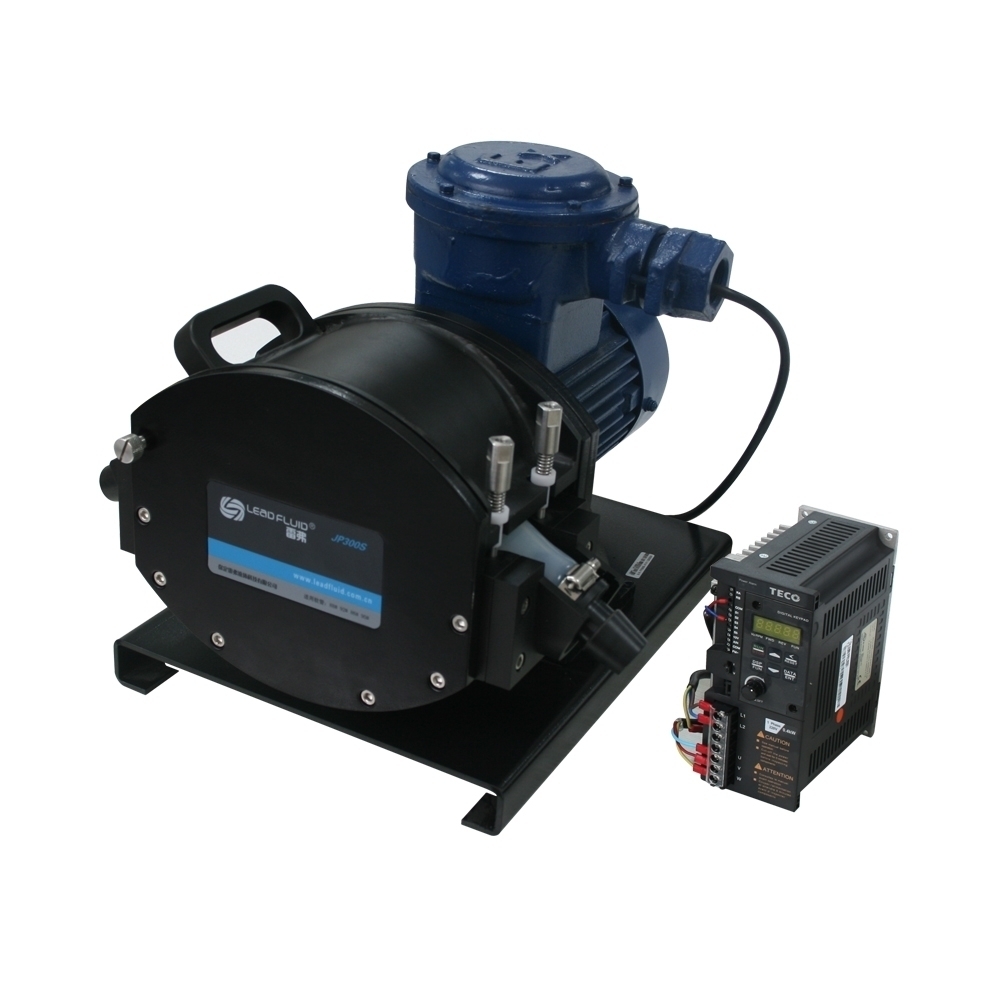

Function and Feature
• AC slow explosion-proof motor driver, separation design, Separate  driver and frequency converter.·Frequency converter control, with the start/stop, positive and negative, adjust speed ,communication etc functions.·Stepless speed ,the speed resolution is 0.1HZ.
• Large torque design , stable operation .
• Max flow  is 35L/min.
• The table structure, convenient operation.
• High protection grade of IP55, suitable to complex working environment.
• Suitable for high precision of the liquid transmission
• Frequency converter cannot place dangerous environment .

Technical Parameters

• Flow rate: Max 35L/min .
  • Speed range: 30-350rpm
  •  Frequency converter infinitely adjustable-speed (standard  configuration :converter   and motor, without connecting cable)
  • Control function: Start/stop，Positive and negative, adjust speed,  communication etc functions.
  • Pump head :PL48
  • Tube: 88#，92#，191#，193#
  • Power supply:AC380V±10%
  • Power consumption： 0.37kw
  • Working environment: Temperature 0℃ – 40℃ ，relative humidity<80%
  • Anti-explosion Grade: DIIBT4
  • IP Grade: IP55
  • Casing Dimensions: （LxWxH）416*280*334mm
  • Weight: 49Kg
