FG600S-Q Pneumatic Type Peristaltic Pump

$1,630.00$2,180.00

Pneumatic Type Explosion-proof Motor Peristaltic Pump FG600S-Q

Flow: Max 12L/min
Max: 1 Channel
SKU: FG600S-Q Category:

Function and Feature
• Adopts the Pneumatic Type Explosion-proof motor , safe and reliable .
• With the start/stop control.
• Large torque design ,can be installed  a variety of pump heads.
• The table structure ,convenient operation .
• Stepless seed regulation, by adjusting the air pressure or flow valve control .
• High IP65 protection grade, suitable for complex working environment .
• Suitable for liquid transfer without accuracy requirement .

Technical Parameters

  • Flow rate:Max 12L/min
  • Speed range :140-600rpm (On load, speed fluctuation is bigger than motor driven )
  • Adjust speed  :Stepless speed regulation ,by adjust the air pressure or flow valve control.
  • Control function: Start/stop (standard),reversing function (optional)
  • Gas supply pressure : 0.1-0.7MPa
  • Gas consumption:≥0.3m³/min
  • Working environment: Temperature -10℃-60℃,relative humidity <80%
  • IP grade: IP65
  • Casing dimensions (LxWxH): 309x316x237mm
  • Weight : 11Kg

FG600S-Q Peristaltic pump applicable pump head, tubing and flow rate:

Drive TypePump head Channel Number TubingOne channel flow rate (ml/min)
FG600S-QYZ15113# 14# 16# 19# 25# 17#9-1700ml/min

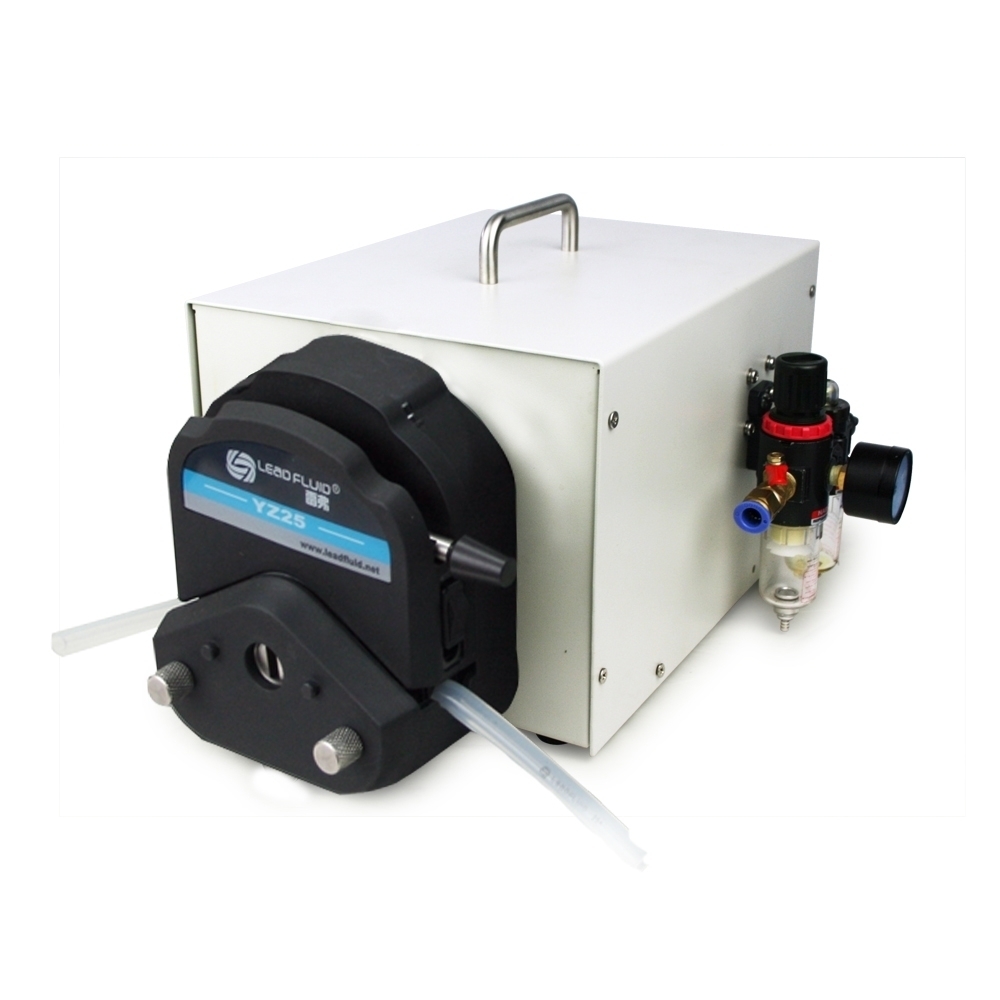

YZ25115# 24#9-1700ml/min

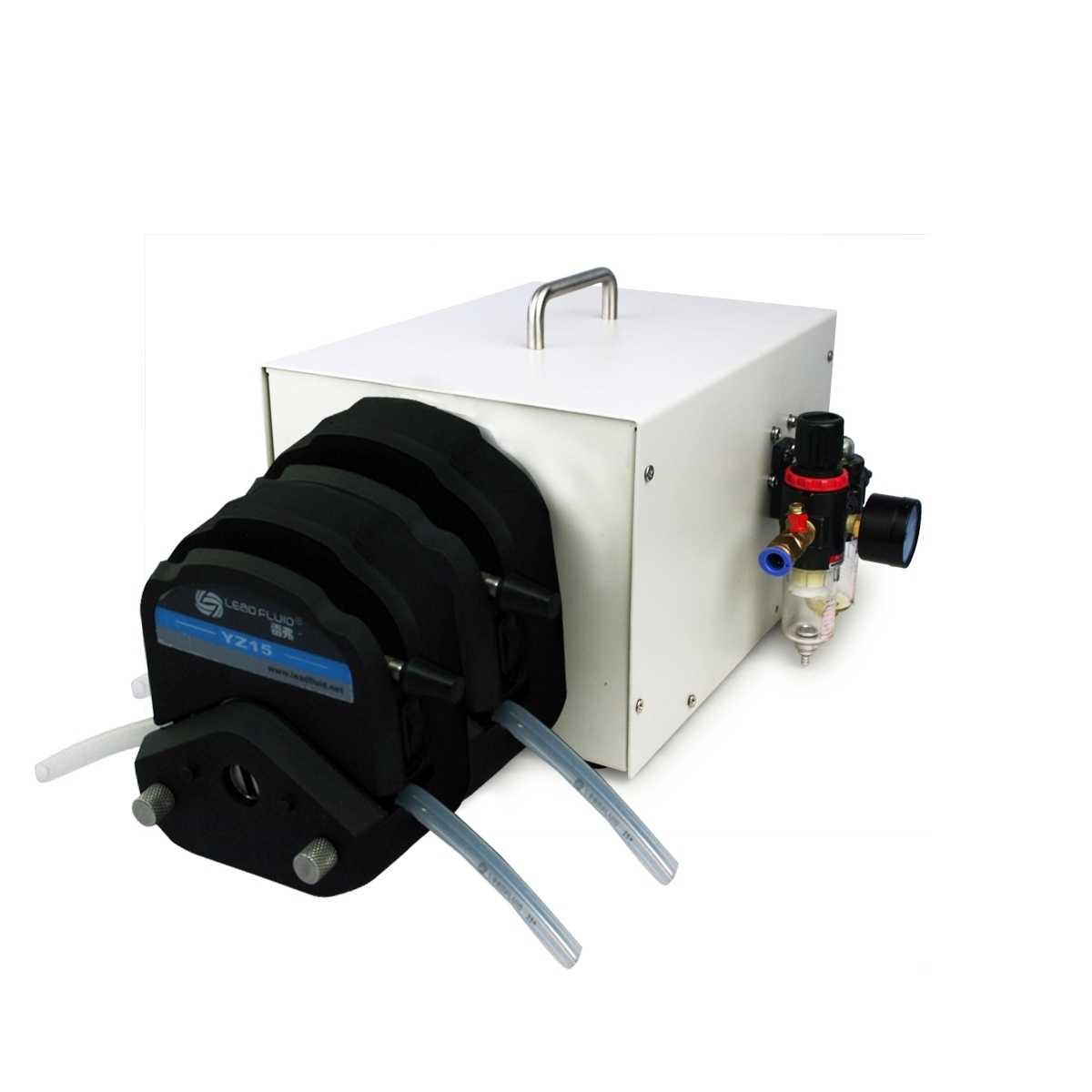

2×YZ15213# 14# 16# 19# 25# 17#250-1700ml/min

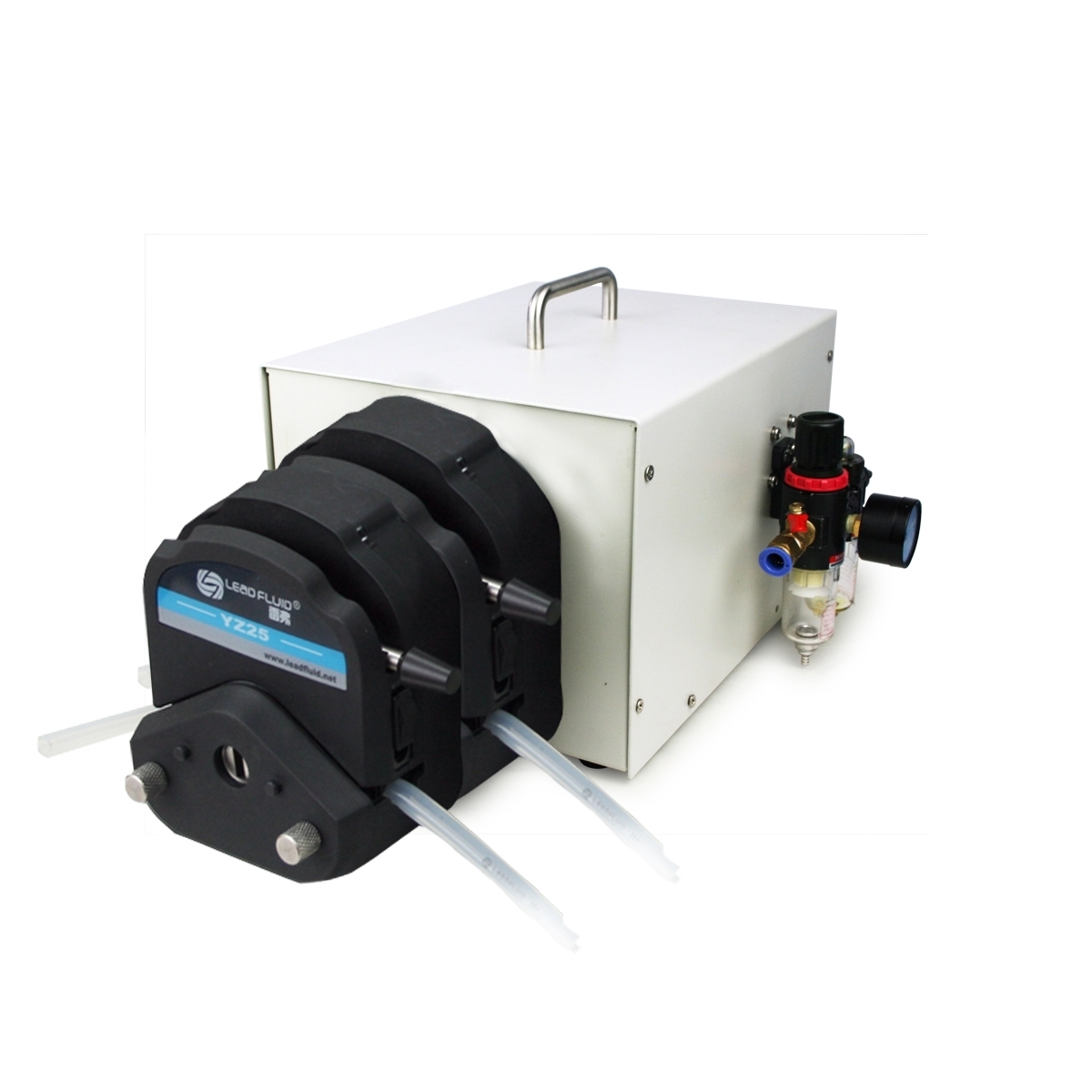

2×YZ25215# 24#250-1700ml/min

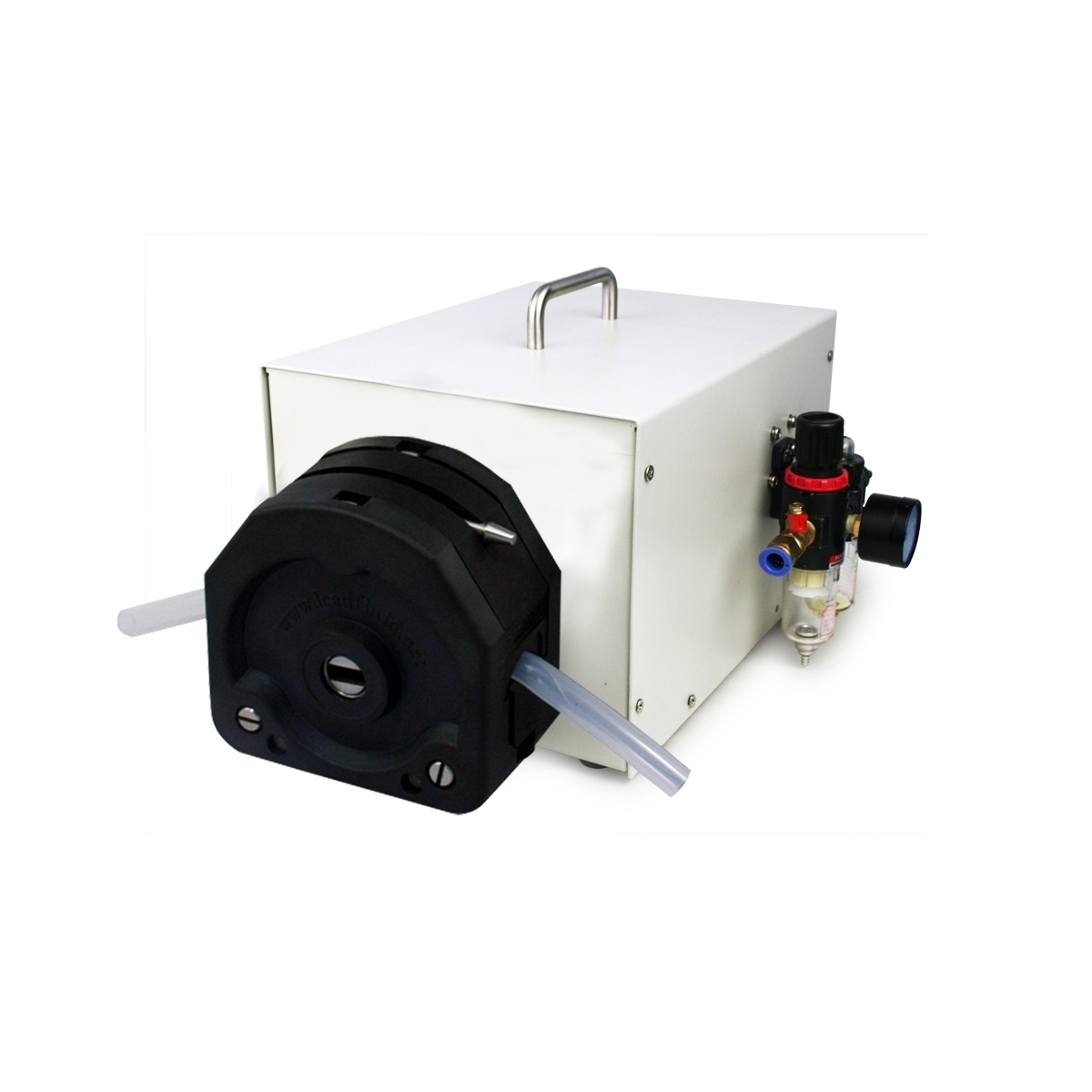

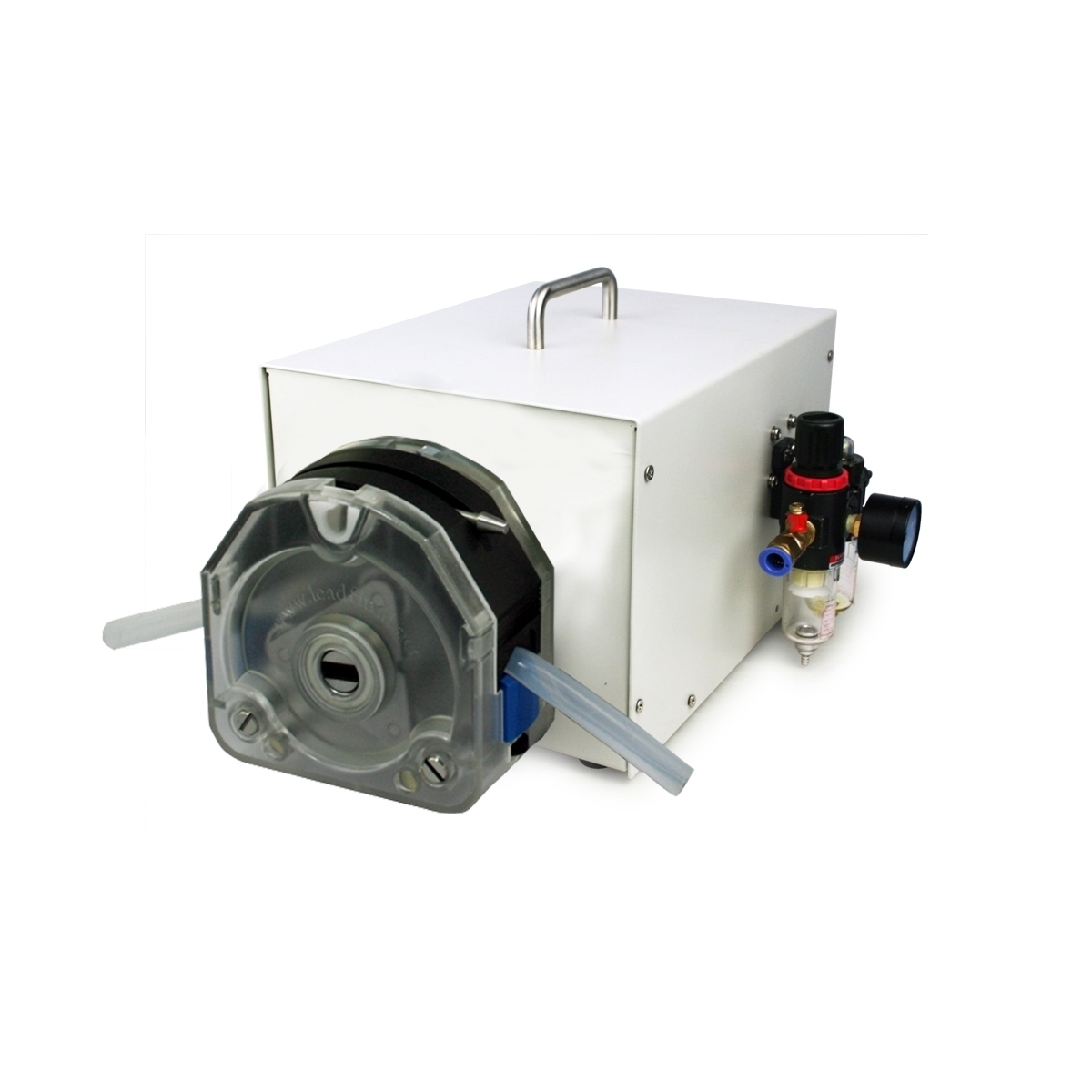

KZ25115# 24# 35# 36#350-6000ml/min

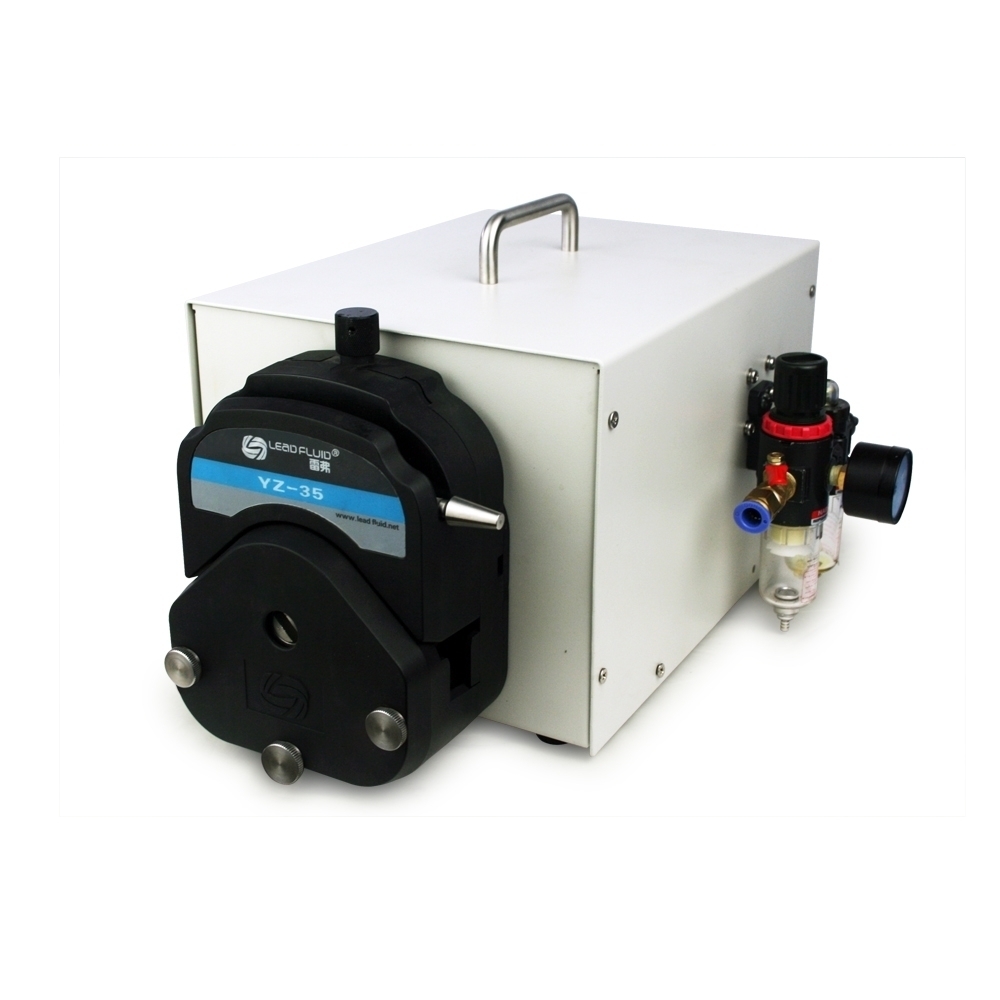

YZ35173# 82#2000-12000ml/min





Additional Information

Weight30 lbs
Dimensions20 × 20 × 20 in
