FG600S-A3 Explosion-proof Peristaltic Pump


AC Explosion-proof Motor Peristaltic Pump FG600S-A3380V

Flow: 0.006-6L/min
Max: 2 Channels
SKU: FG600S-A3 Category:

Function and Feature
•  AC slow explosion-proof motor driver, separation design, Separate  driver and frequency converter.
•  Frequency converter control, with the start/stop, positive and negative, adjust speed ,communication etc functions.
•  Stepless speed ,the speed resolution is 0.1HZ.
•  Large torque design , stable operation .
•  Can be installed a variety of pump heads.
•  The table structure, convenient operation.
•  High protection grade of IP55, suitable to complex working environment.
•  Suitable for high precision of the liquid transmission.
•  Must be used with frequency converter.

Technical Parameters

  • Flow range :0.006-6L/min
    • Speed range: 100-600rpm
    • Adjust speed: Frequency converter infinitely adjustable-speed (standard    configuration :converter and motor, without connecting cable)
    • Speed resolution: 0.1HZ(The corresponding rotational speed is1.8rpm)
    • Control function: Start/stop,Positive and negative, adjust speed,      communication etc functions.
    • Power supply: Three phase 380 v (AC220V  optional)
    • Power consumption: 0.37KW
    • Working environment: Temperature 0℃-40℃,relative humidity<80%
    • Anti-explosion Grade: DIIBT4
    • IP Grade: IP55
    • Casing Dimensions: (LxWxH)324*250*291
    • Weight: 26Kg

FG600S-A3 Peristaltic pump applicable pump head, tubing and flow rate

Drive Type Pump Head Tubing Flow Rate Per Channel

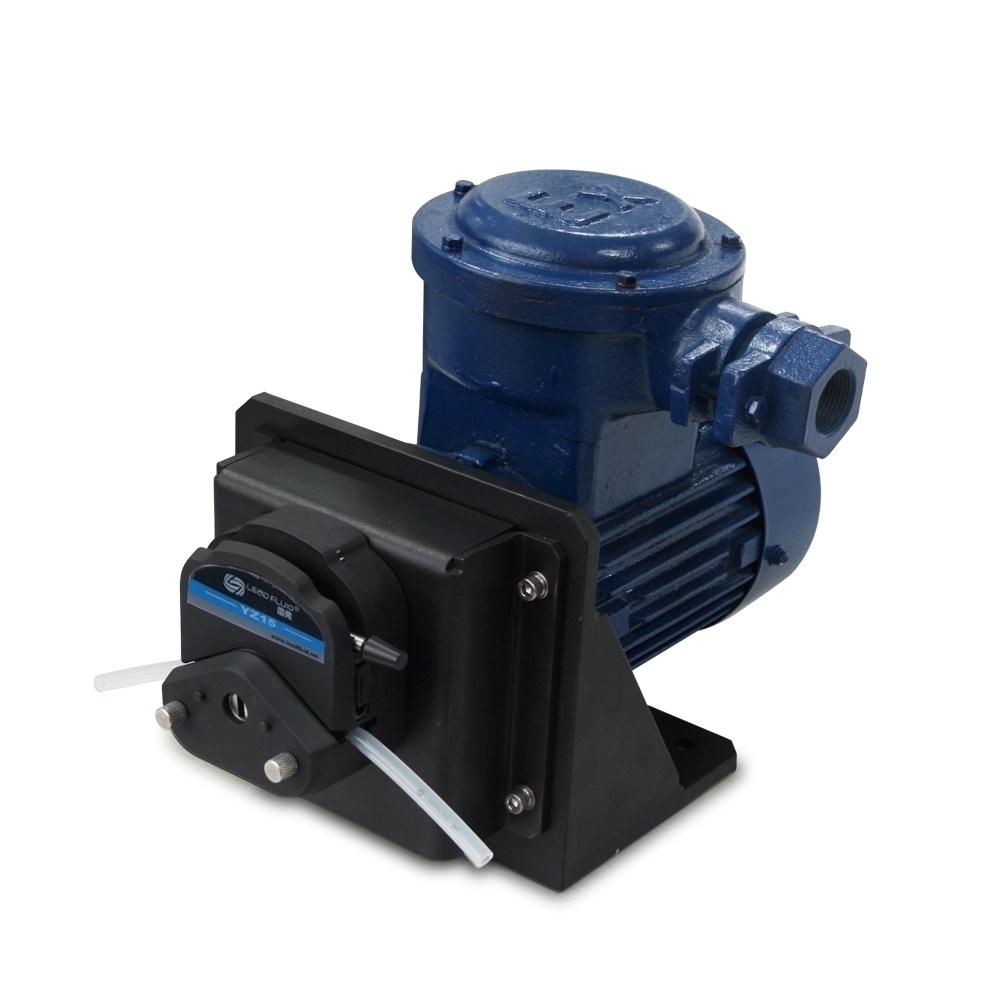

FG600S-A3 YZ15 13#,14#,16#,19#,25#,17# 6-1700

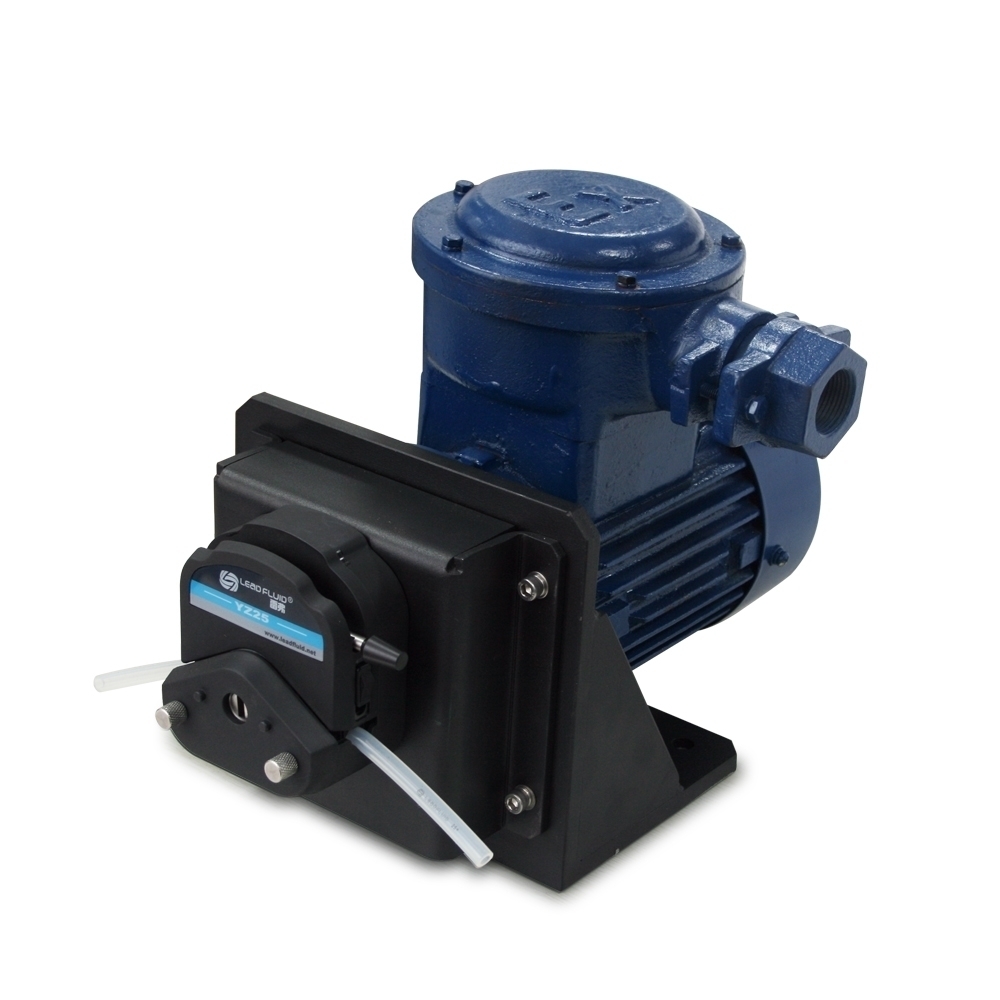

YZ25 15#,24# 170-1700
2×YZ15 13#,14#,16#,19#,25#,17# 170-1700

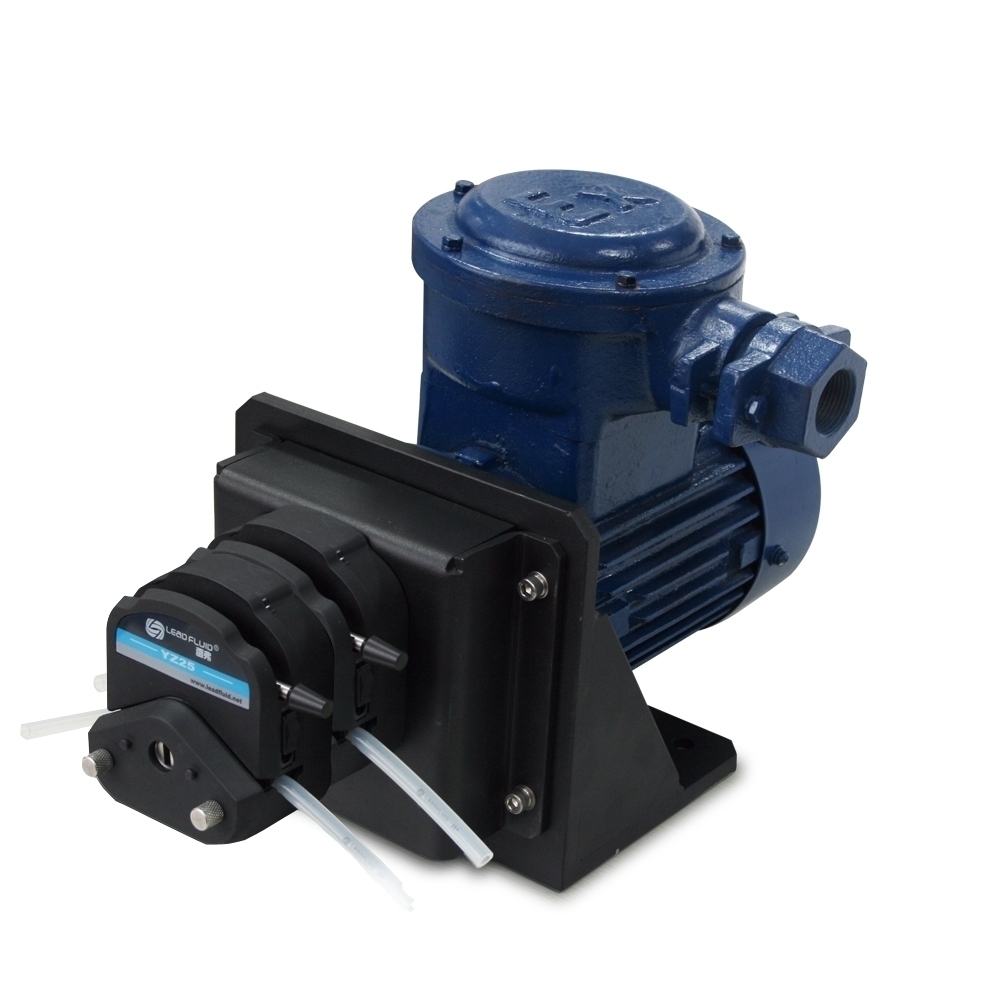

2×YZ25 15#,24# 250-6000

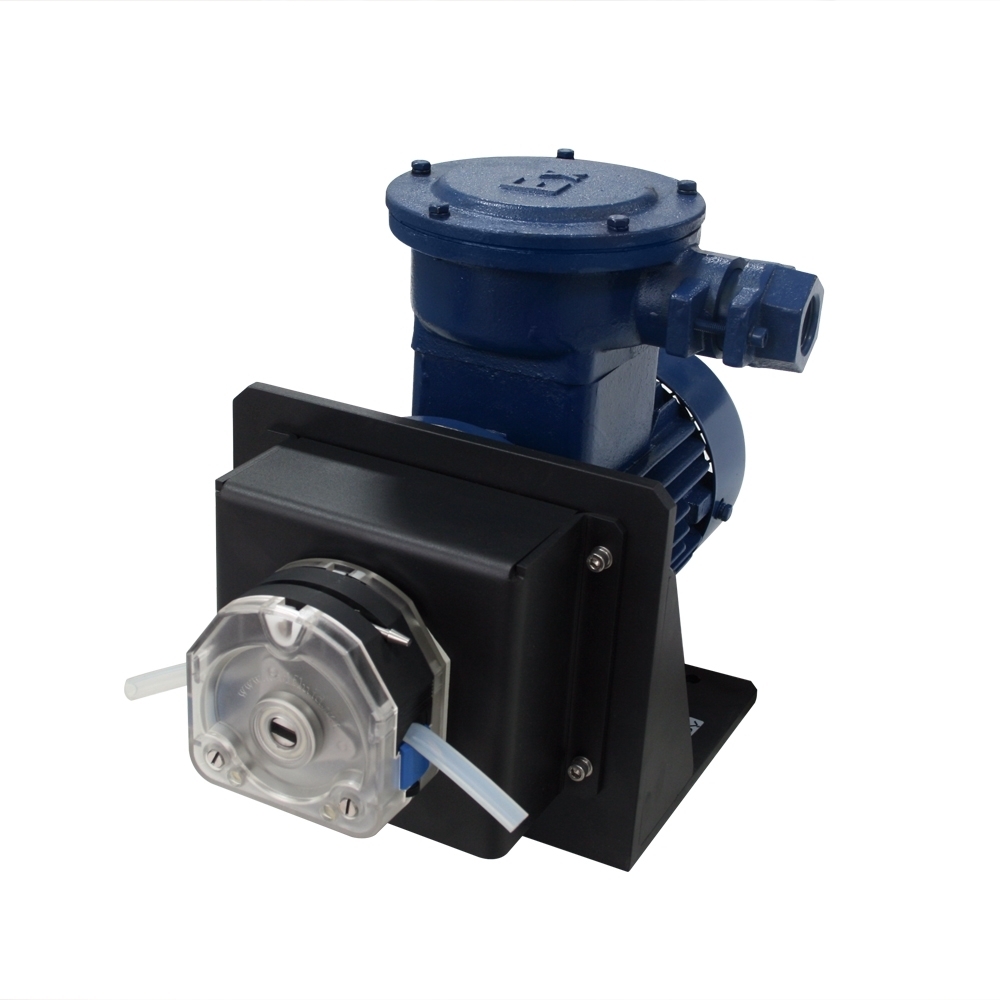

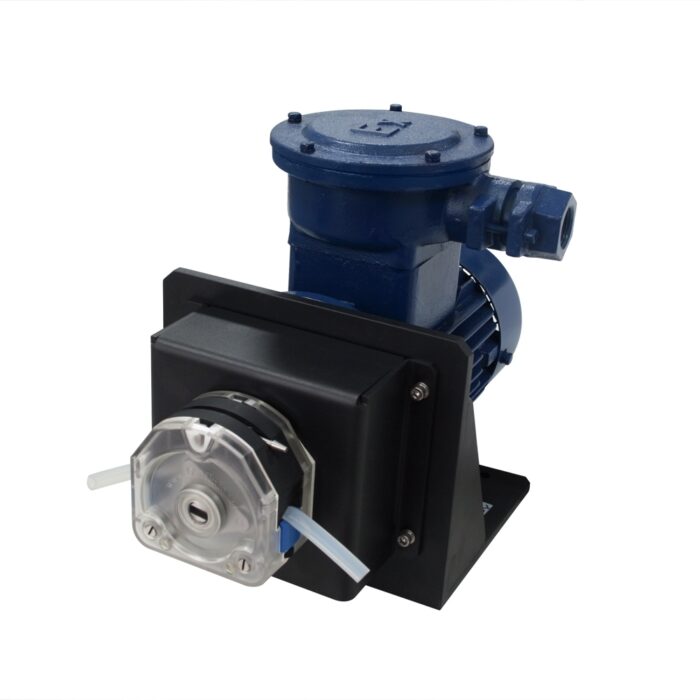

KZ25 15#,24#,35#,36# 250-6000

Additional Information

Weight 60 lbs
Dimensions 20 × 20 × 20 in
