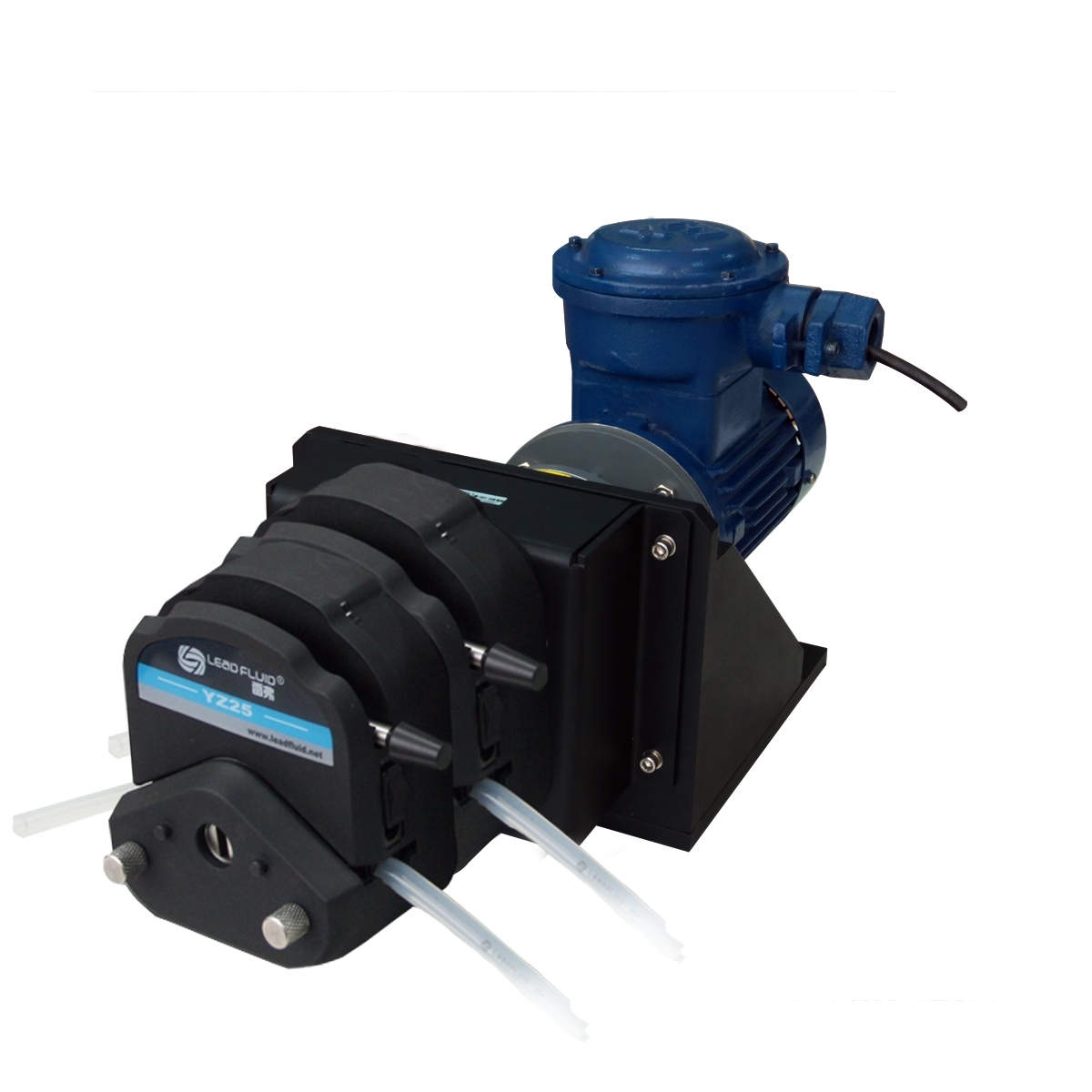

FG601S-A3 Explosion-proof Peristaltic Pump


AC Explosion-proof Motor Peristaltic Pump FG601S-A3380V

Flow: Max 12L/min
Max: 2 Channels
SKU: FG601S-A3 Category:

Function and Feature
•  AC slow explosion-proof motor driver, separation design, Separate  driver and frequency converter.
•  Frequency converter control, with the start/stop, positive and negative, adjust speed ,communication etc functions.
•  Stepless speed ,the speed resolution is 0.1HZ.
•  Large torque design , stable operation
•  Can be installed a variety of pump heads
•  High  protection grade of IP65, suitable to complex working environment.
•  380V can work without frequency converter ,speed is 570rpm.

Technical Parameters

  • Flow range 800-12000ml/min
    • Speed range: 5-50Hz (60-570rpm)
    • Speed resolution: 0.1HZ(1.14rpm)
    • Keys operation.
    • LED display.
    • Power supply : Three phase 380 v,50Hz/60Hz (AC220V  optional)
    • Motor parameter: Three phase 380 v/0.37KW 2800rpm
    • Power consumption: 0.37KW
    • Working environment: Temperature 0℃~40℃,relative humidity<80%
    • Casing Dimensions: (LxWxH)560x250x271.5 mm
    • Anti-explosion Grade: DIIBT4 (motor)
    • IP Grade: IP65
    • Weight: 36Kg

FG601S-A3 Peristaltic pump applicable pump head, tubing and flow rate:

Drive Type Pump head Channel Tubing(mm) One channel flow rate(mL/min)
FG601S-A3 2×KZ25 2 15#, 24#, 35#, 36# 120-6000mL/min

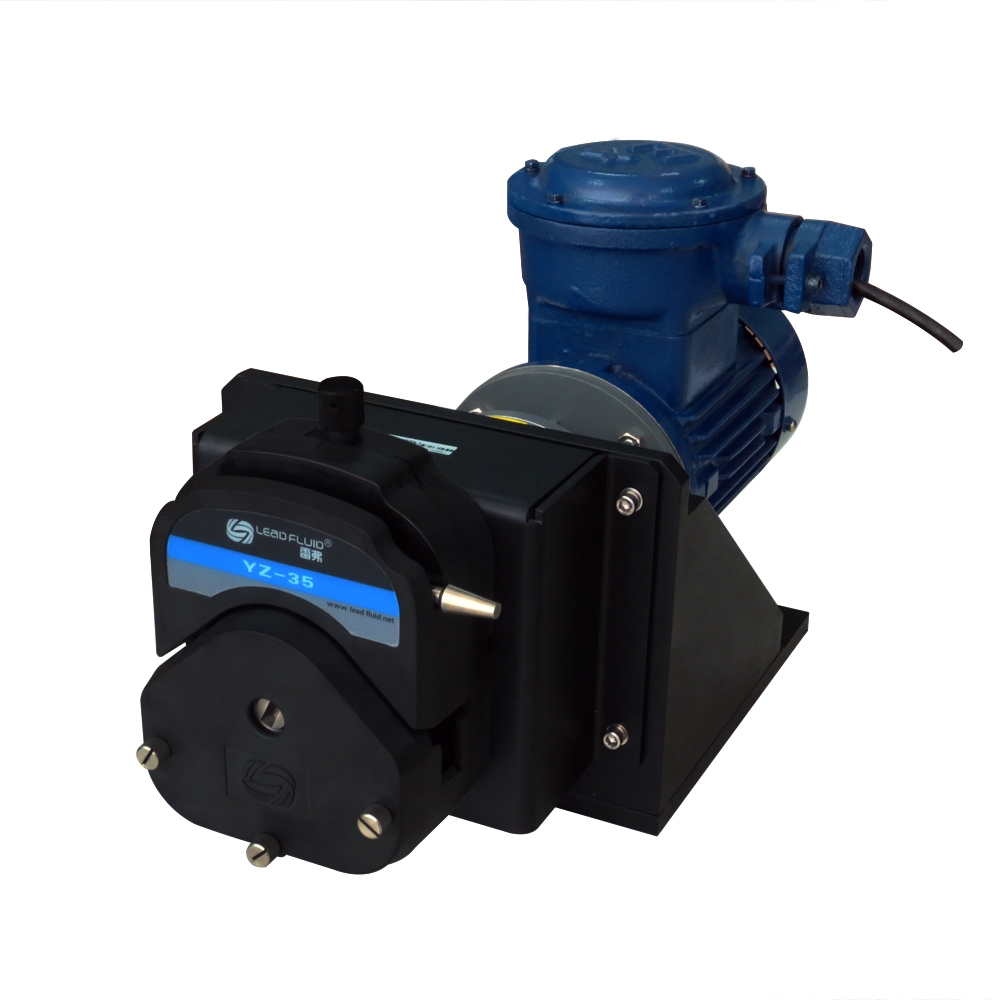

YZ35 1 73#, 82# 800-12000mL/min
2×YZ35 2 73#, 82#(above 100rpm, silicone tube)
