Functions and Features
- LCD displays rotating speed and working mode.
- Membrane keypad.
- Reversible direction, start/stop control and adjustable speed.
- Time dispense mode: automatically dispense by setting the duration for each dose, lag time between doses and number of cycles.
- 0.5% high precision rotating speed control with 0.1 rpm speed resolution when speed is between 0-100 rpm, 1 rpm speed resolution when speed is between 100-600 rpm.
- External logic level signal can control start/stop, direction and dispense functions; external analog signal can adjust the rotating speed. Signal is optically isolated.
- With RS485 MODBUS interface, easy to communicate with external device.
- Internal double-layer isolation structure; circuit board with conformal coating makes the pump dust-proof and moisture proof.
- Anti-electromagnetic interference feature, wide input voltage range for complex power environment.
- Stainless steel enclosure, easy to clean, resistant to the corrosion of the acid, alkali, sodium and organic solvents.
Specifications
- Flow range: 0.006-2900 mL/min
- Speed range: 0.1-600 rpm
- Speed resolution: between 0.1-100 rpm, 0.1 rpm resolution; between 100-600 rpm, 1 rpm resolution
- Speed accuracy: 0.5%
- Power supply: AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz
- Power consumption: < 60W
- External logic level control signal: 5V, 12V (standard), 24V (optional)
- External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional)
- Communication interface: RS485 MODBUS interface
- Operating condition: Temperature 0-40°C; Relative humidity < 80%
- IP grade: IP31
- Dimensions (L x W x H): 226 x 150 x 238 mm (8.90 x 5.91 x 9.37 inch)
- Weight: 5.2 kg (11.5 lbs)
BT600S Suitable Pump Heads and Tubings, Flow Parameters
Drive type | Pump head | Ch | Tubing size | Flow rate per channel (mL/min) |
BT600S (304SS case) |

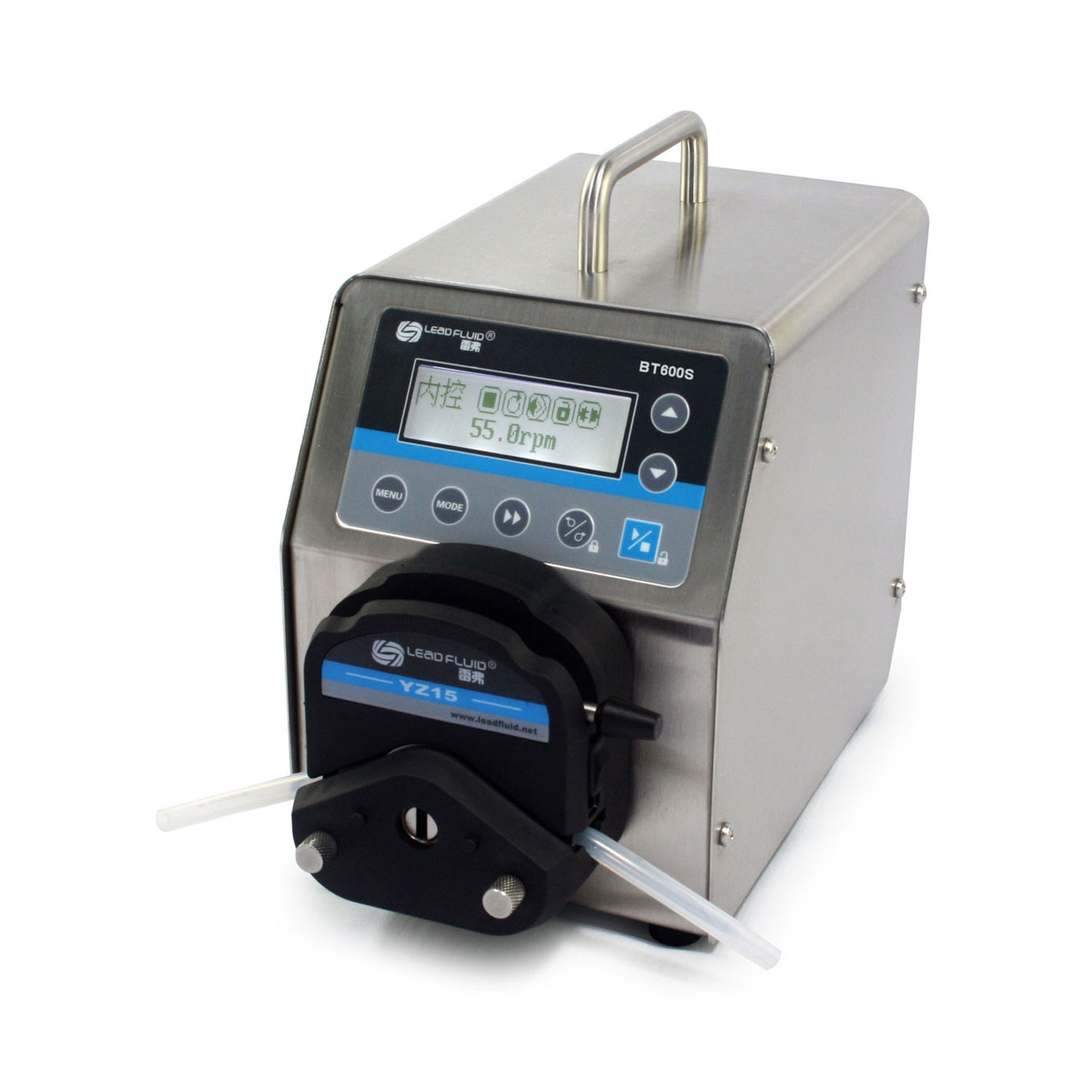

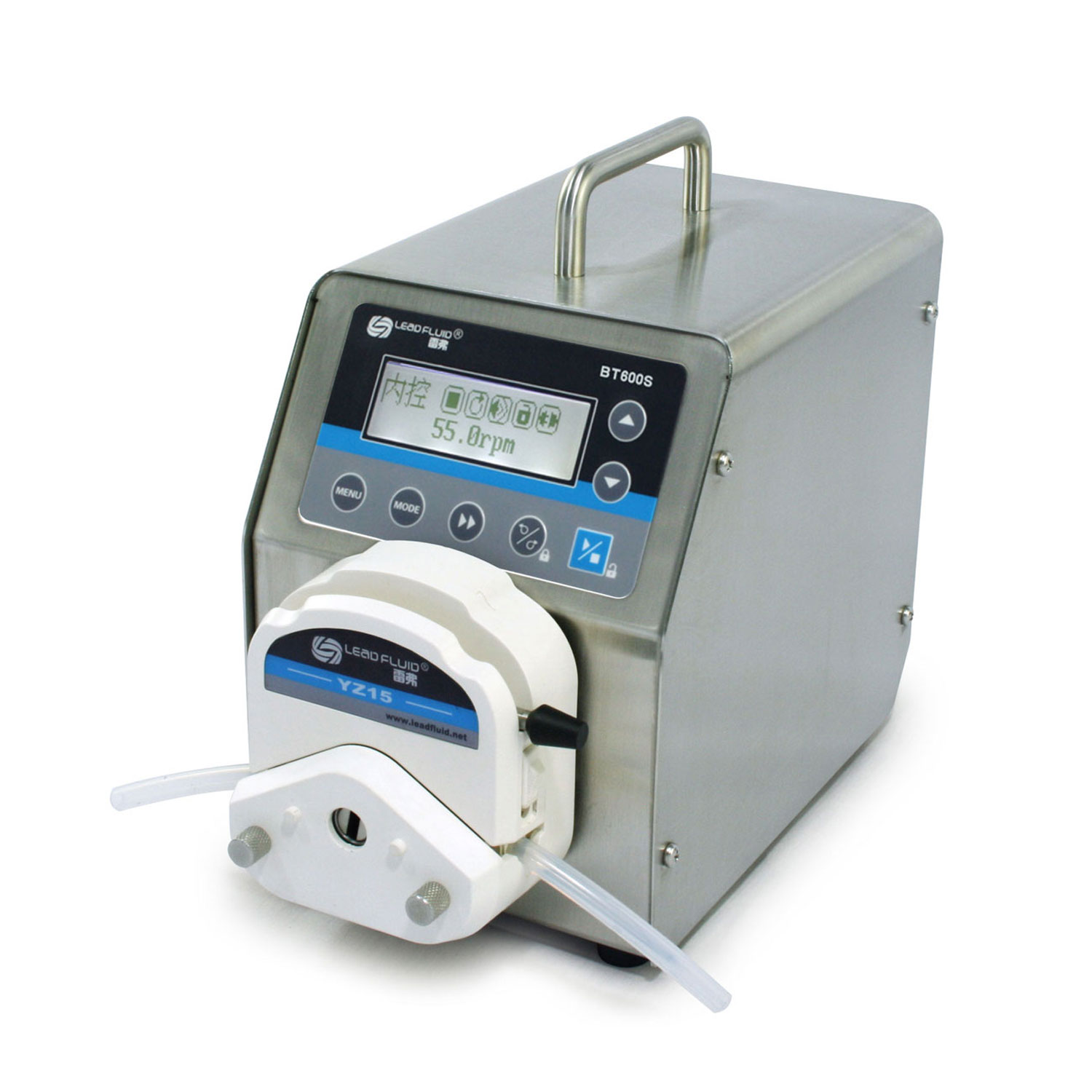

YZ15 | 1 | 13# 14# 16# 19# 25# 17# | 0.006-1700 |

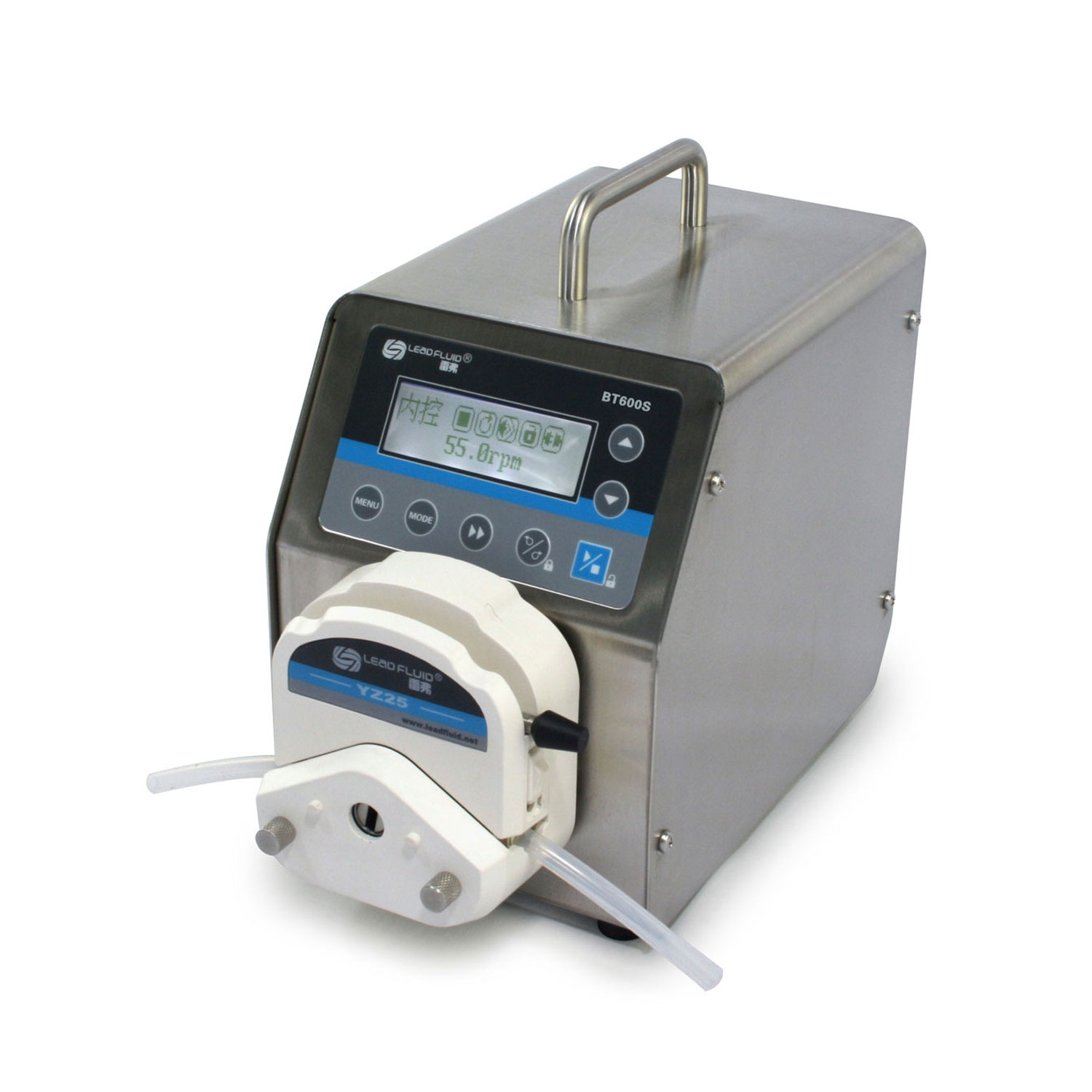

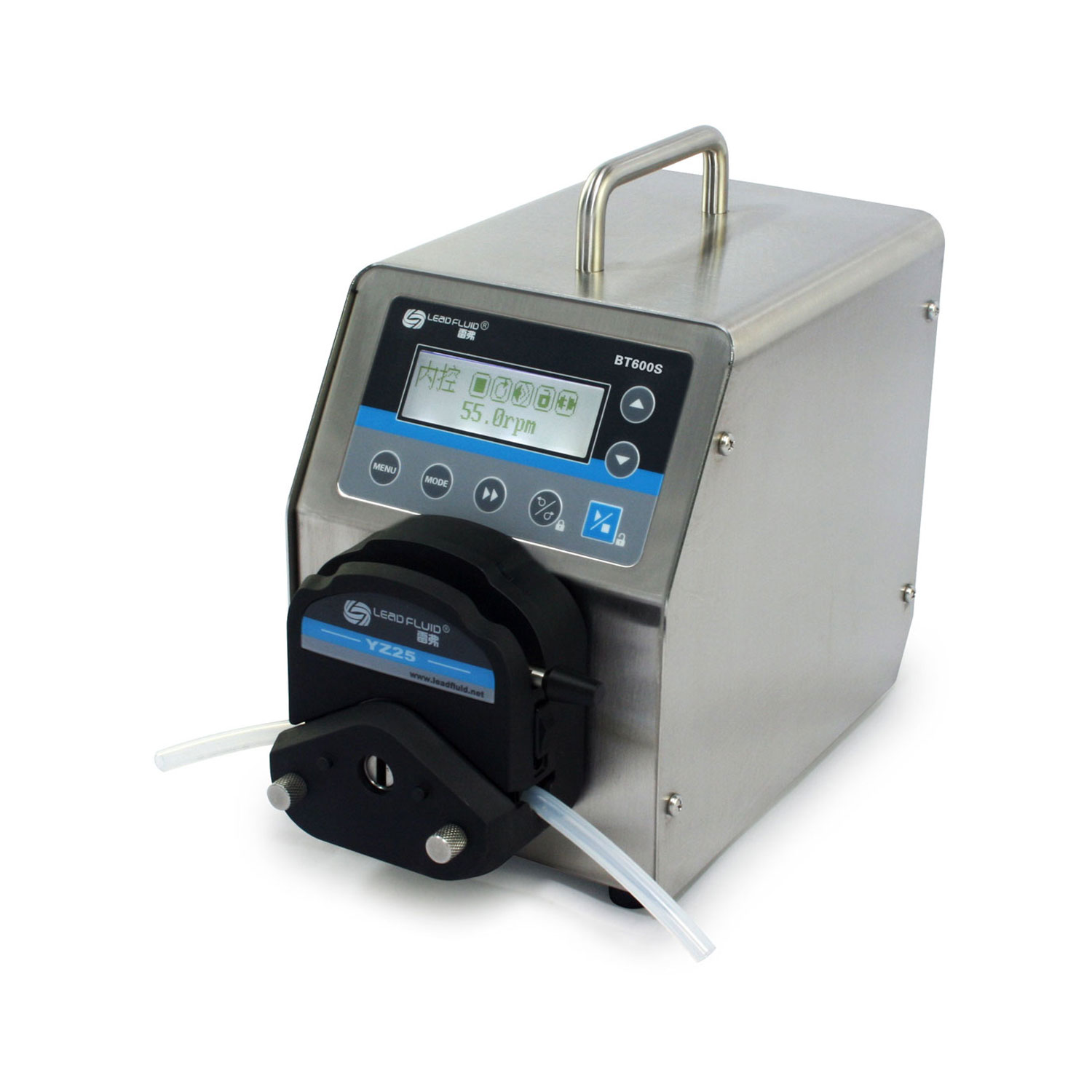

YZ25 | 1 | 15# 24# | 0.16-1700 | |

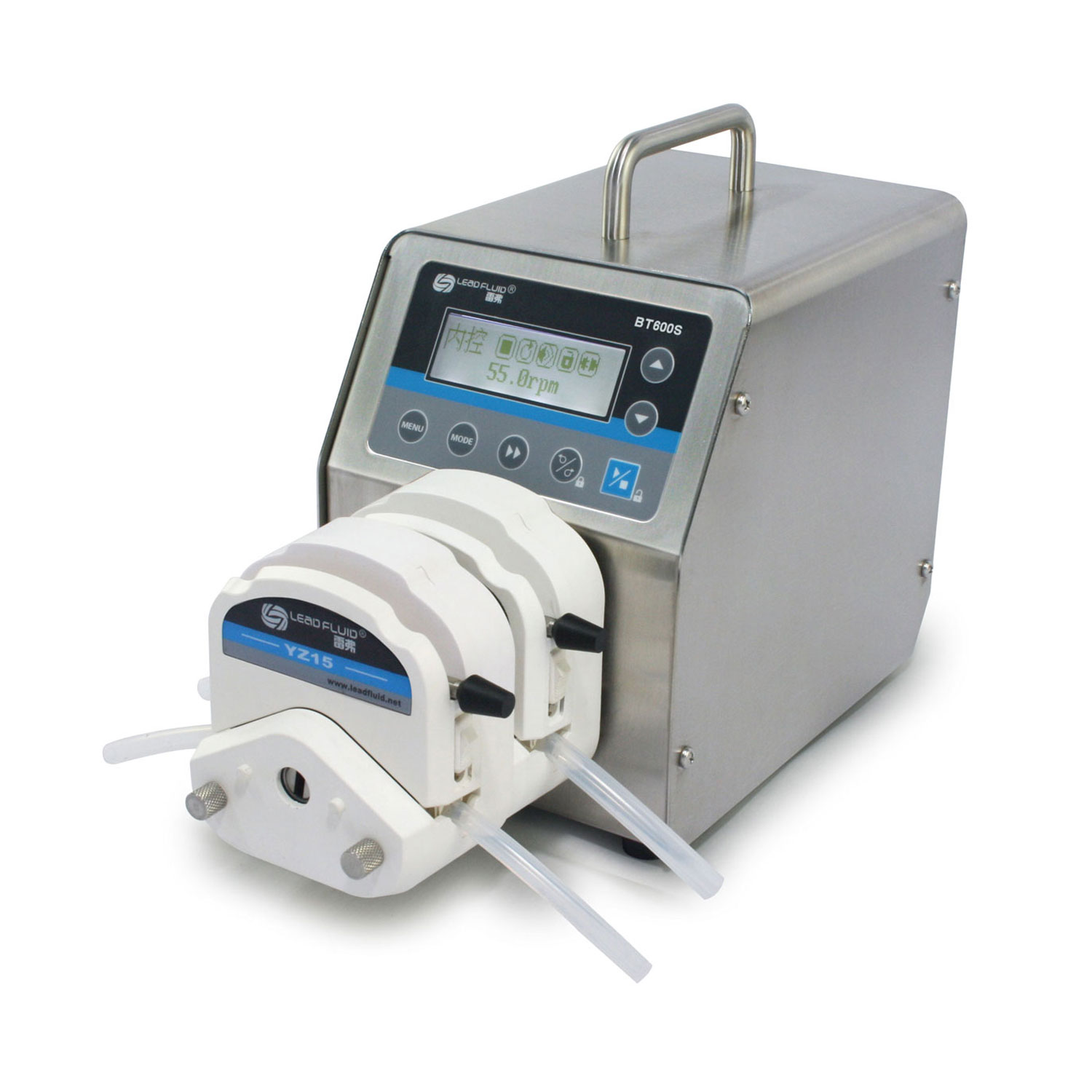

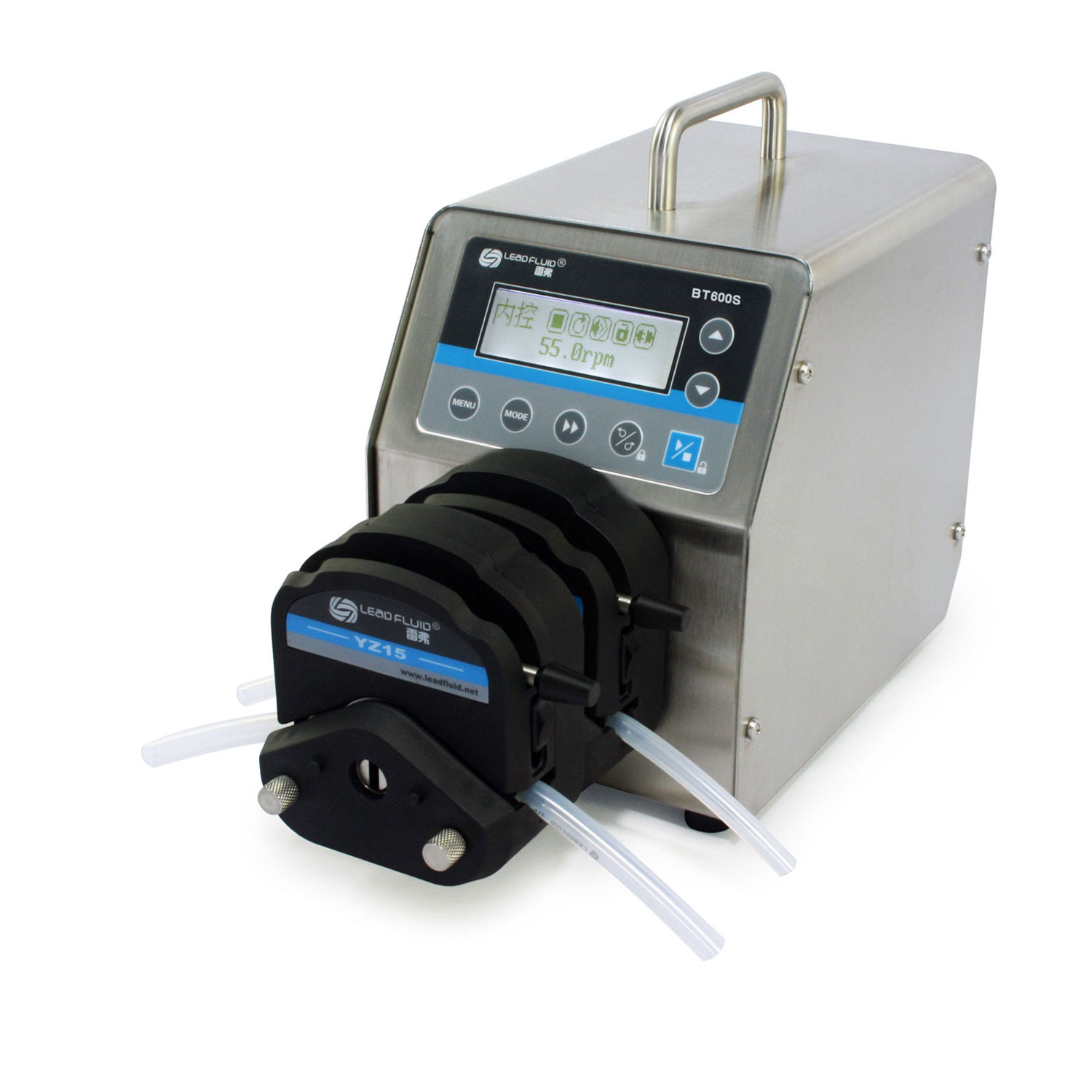

2 x YZ15 | 2 | 13# 14# 16# 19# 25# 17# | 0.006-1700 | |

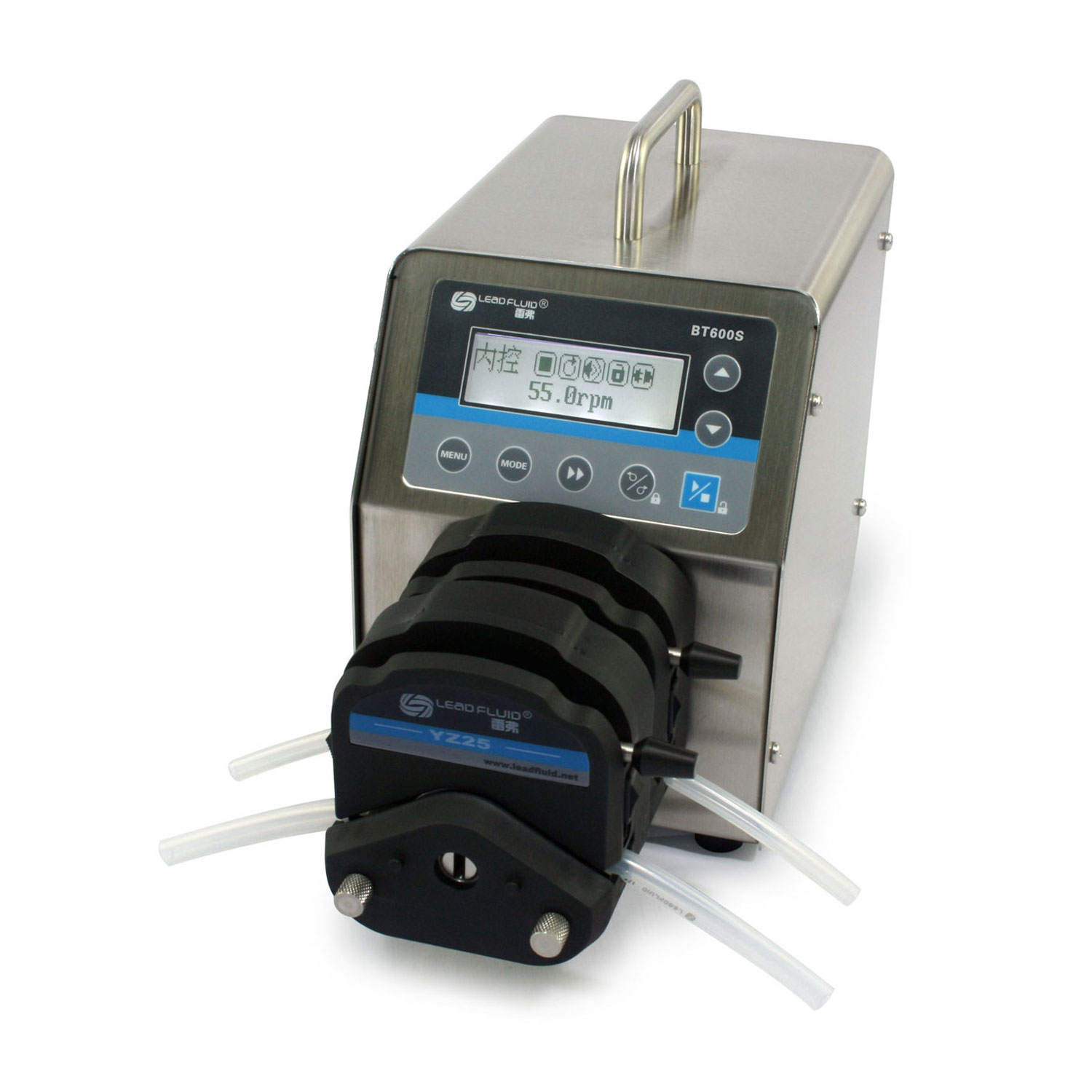

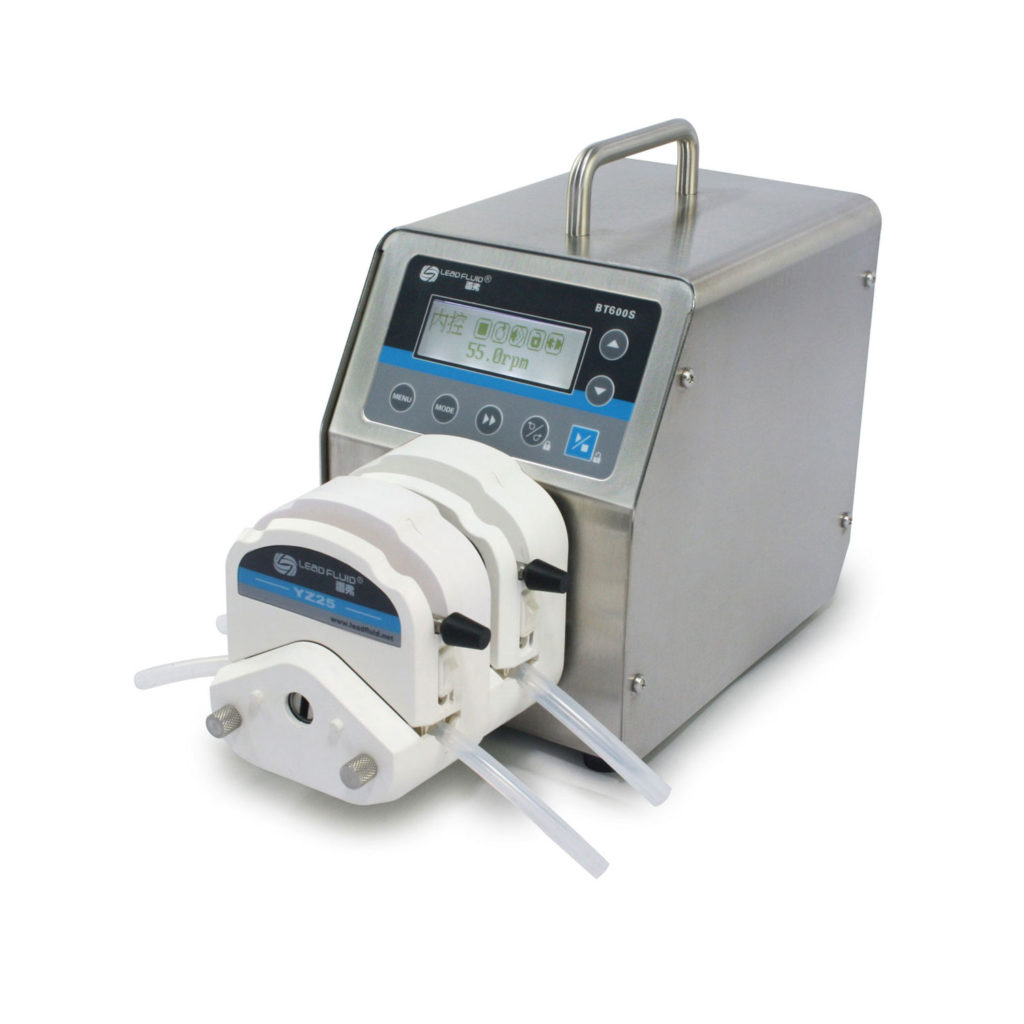

2 x YZ25 | 2 | 15# 24# | 0.16-1700 | |

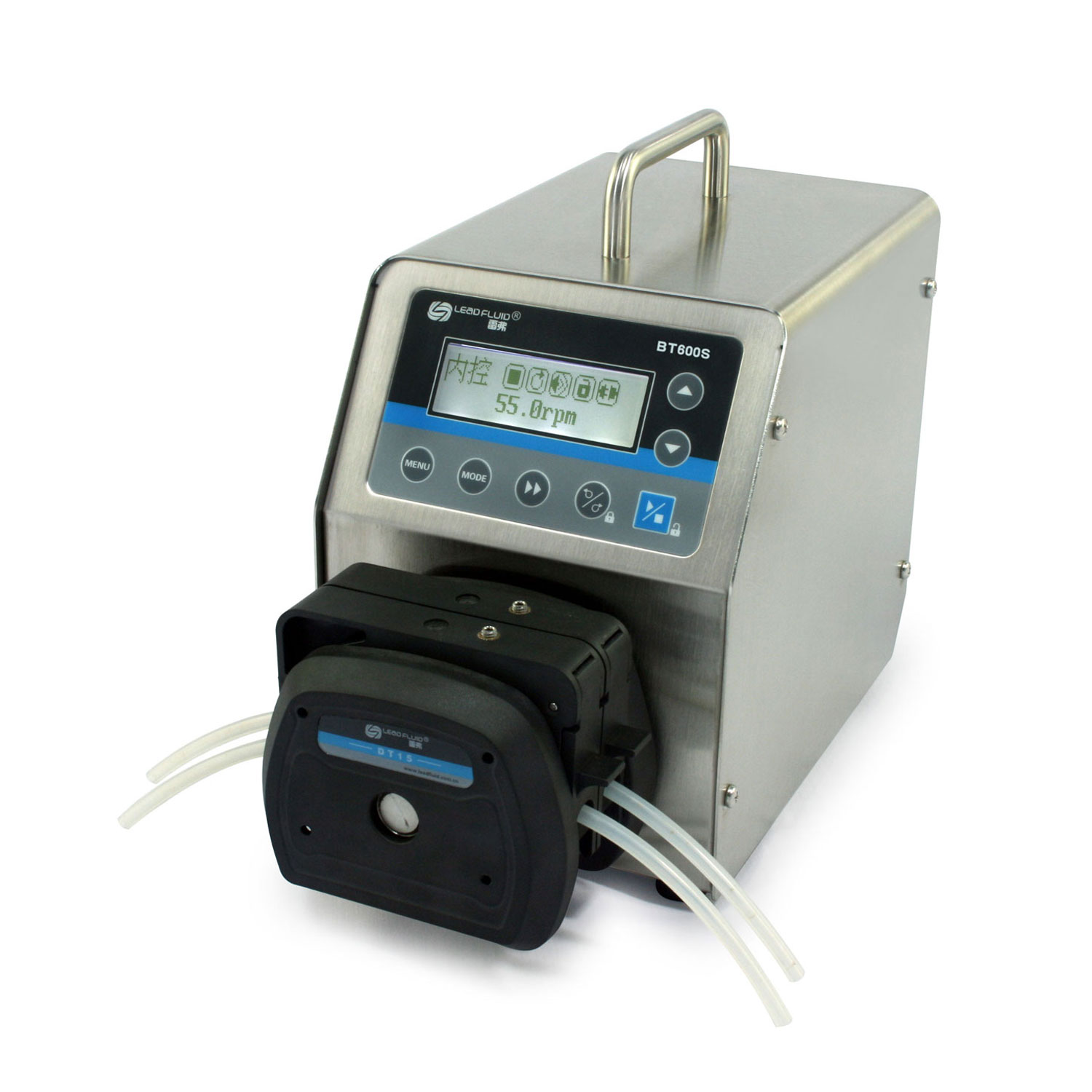

DT15-24 | 2 | 19# 16# 25# 17# | 0.047-1600 | |

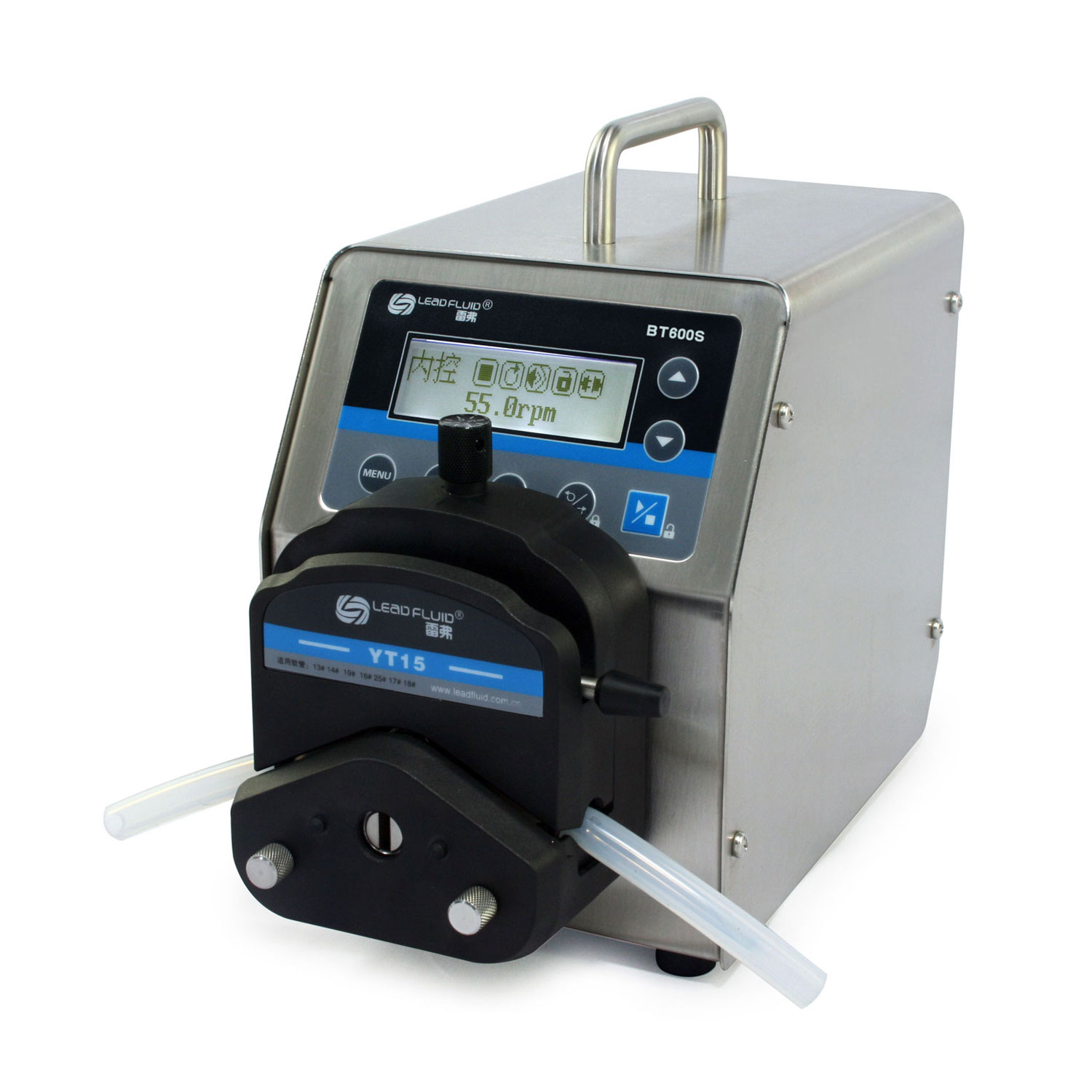

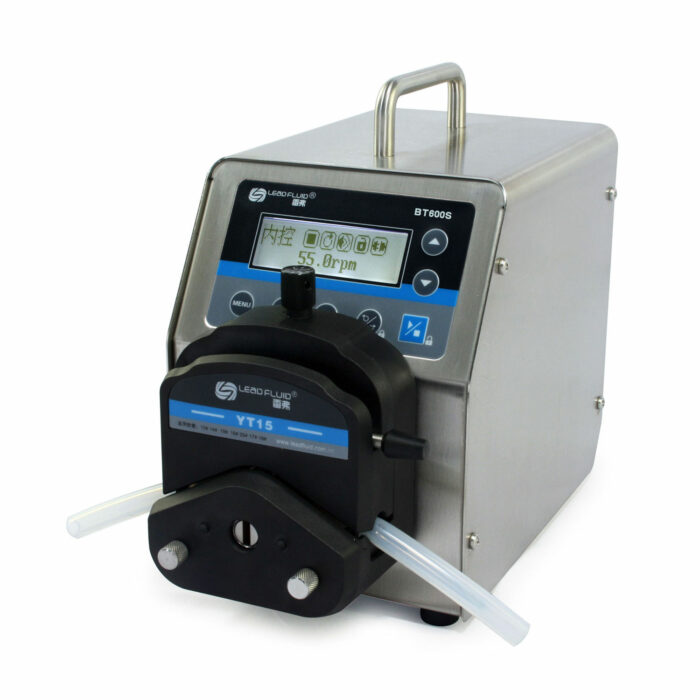

YT15 | 1 | 13# 14# 16# 19# 25# 17# 18# | 0.006-2300 | |

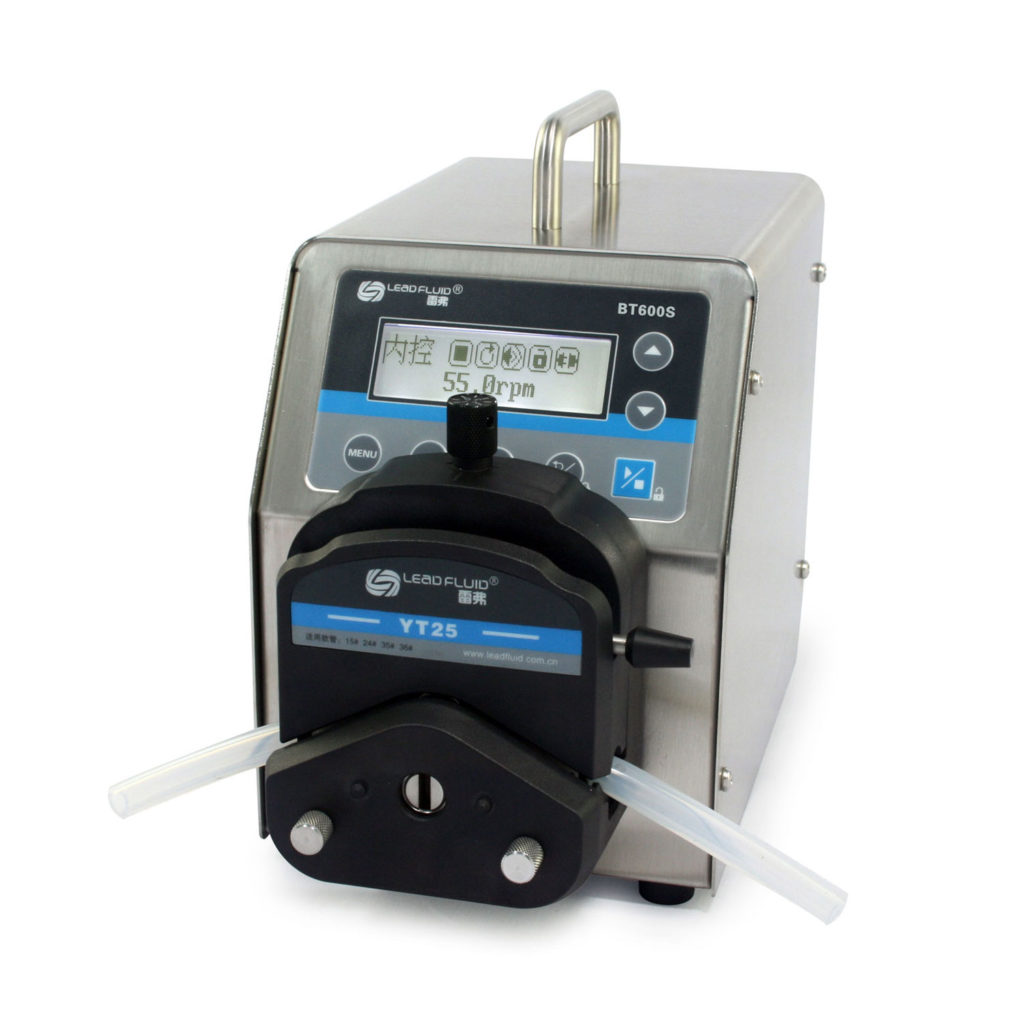

YT25 | 1 | 15# 24# 35# 36# | 0.16-2900 | |

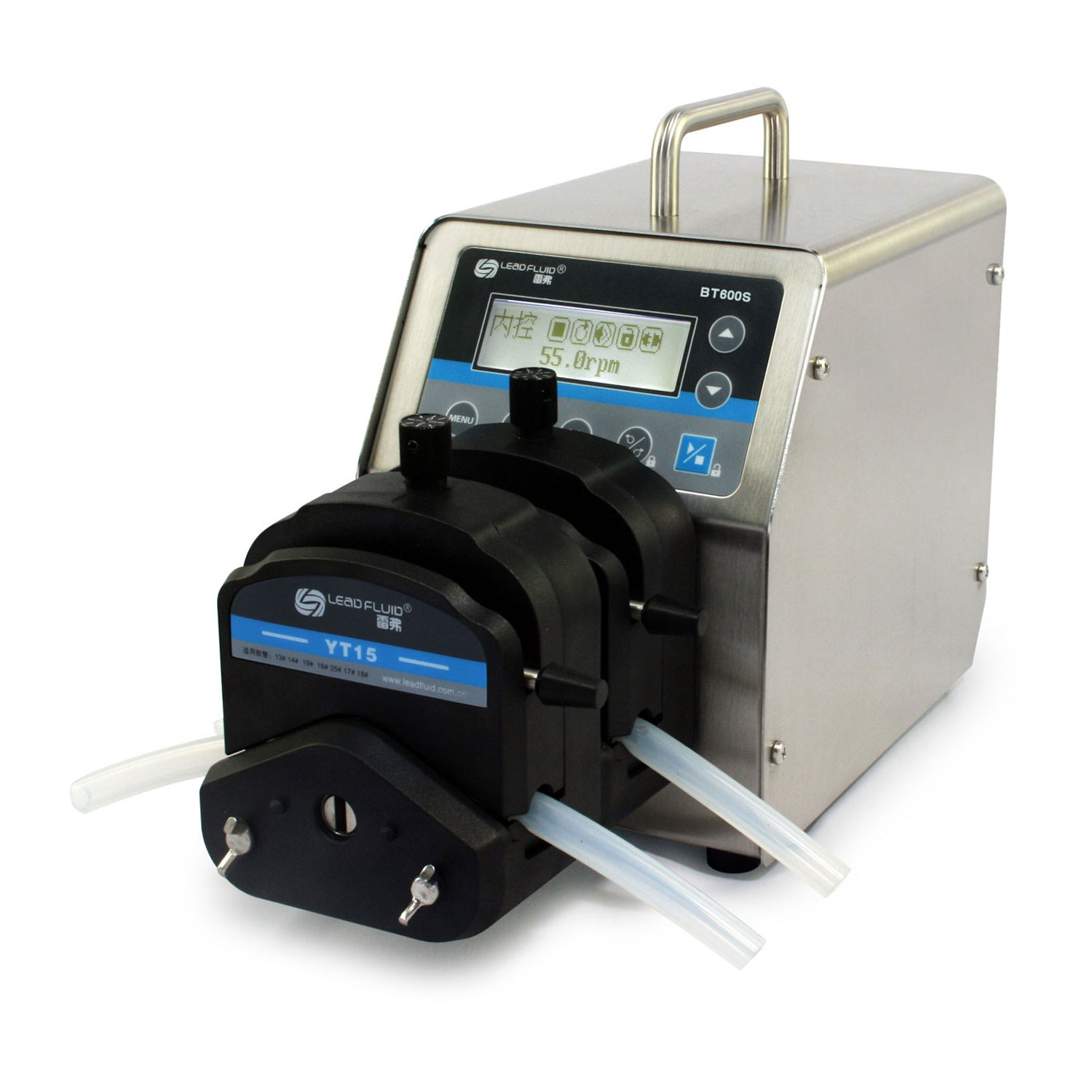

2 x YT15 | 2 | 13# 14# 16# 19# 25# 17# 18# | 0.006-2300 |
