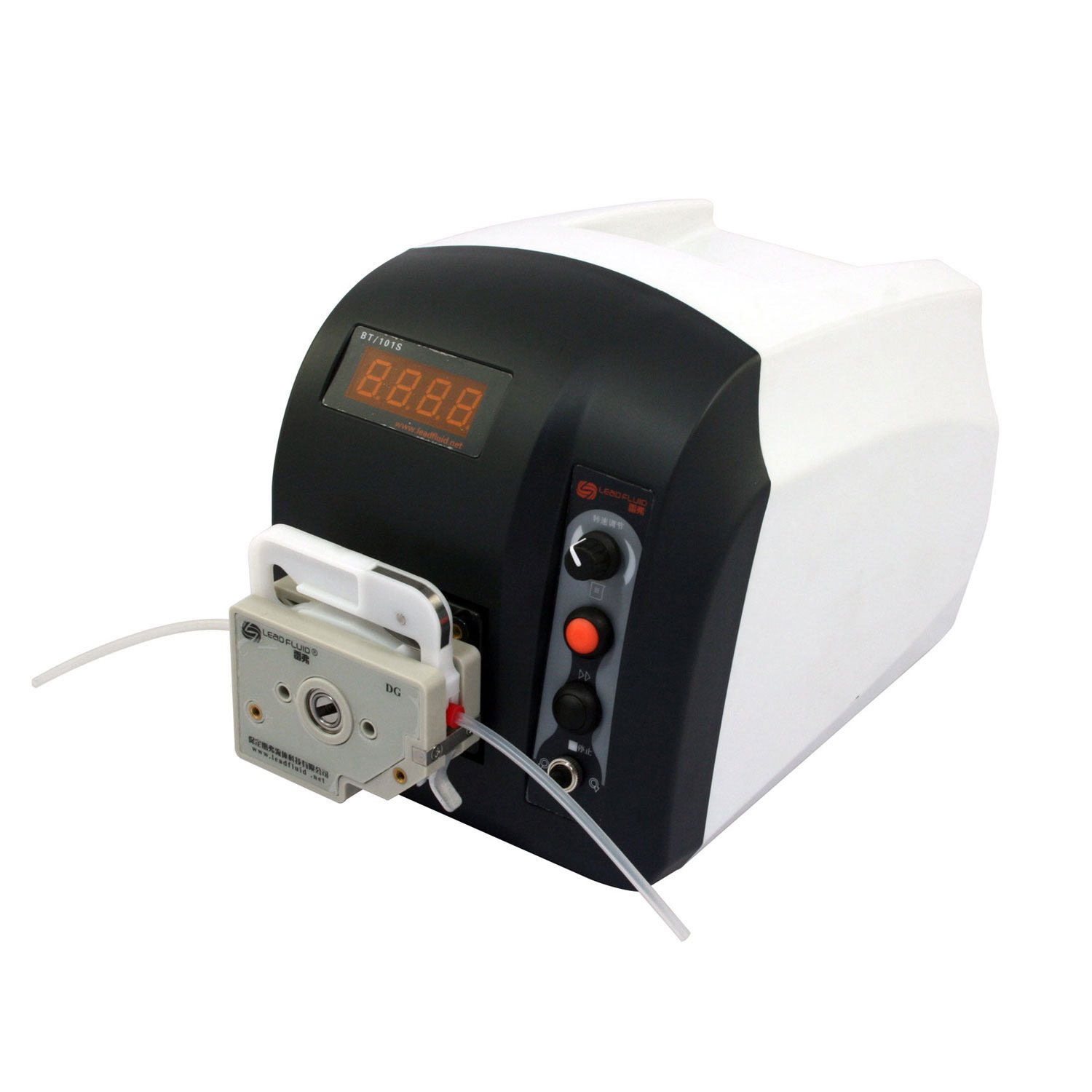

BT101S Basic Variable Speed Peristaltic Pump


Peristaltic pump BT101S provides flow range from 0.00011 to 720 mL/min with variable pump heads and tubings. It has basic functions such as reversible direction, start/stop, full speed (for fast cleaning), adjustable speed. Dispensing function can easily repeat liquid dispensing by time. With RS485 MODBUS interface, the pump is easy to be controlled by external device, such as computer, human machine interface or PLC.

Flow: 0.00011-720mL/min
Max: 4 Channels
SKU: BT101S Category:

Functions and Features

  • Four digits LED indicator displays working speed.
  • LED indicator displays the internal control, external control, footswitch and other working mode.
  • Membrane keypad operation.
  • Reversible direction, start/stop, full speed. Running parameters stored automatically.
  • Easy dispensing function, repeats liquid dispensing by time or volume.
  • Can drive multi-channels and various types of pump heads.
  • The circuit board with conformal coating makes it dust-proof and moisture-proof.
  • Anti-interference feature, wide input voltage range for complex power environment.
  • External on/off voltage signal controls start/stop, reversible direction and easy dispensing function, optically coupled isolator; External analog adjusts the rotating speed.
  • RS485 MODBUS interface, easy to be controlled by external device.
  • Optional footswitch or timer for dispensing fluid.


  • Flow range: 0.00011-720 mL/min
  • Speed range: 0.1-150 rpm
  • Speed resolution: 0.1-100 rpm, 0.1 rpm resolution; 100-150 rpm, 1 rpm resolution
  • Flow accuracy: 0.5%
  • Power supply: AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz
  • Power consumption: < 30W
  • External control on/off signal: 5V, 12V (standard), 24V (optional). External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional)
  • Communication interface: RS485 MODBUS interface
  • Operating condition: Temperature 0-40°C; Relative humidity <80%
  • IP grade: IP31
  • Dimensions (L x W x H): 260 x 181 x 198 mm (10.2 x 7.1 x 7.8 inch)
  • Weight: 4.5 kg (10 lbs)

BT101S Applicable Pump Heads and Tubings, Flow Parameters

Drive typePump headCHTubing size (mm)Flow rate (mL/min) per channel
(ABS Plastic case)
DG6-1 (6rollers)1Wall:0.8~1, ID:≤2.40.00016-26
DG10-1 (10rollers)1Wall:0.8~1, ID:≤2.40.00011-20

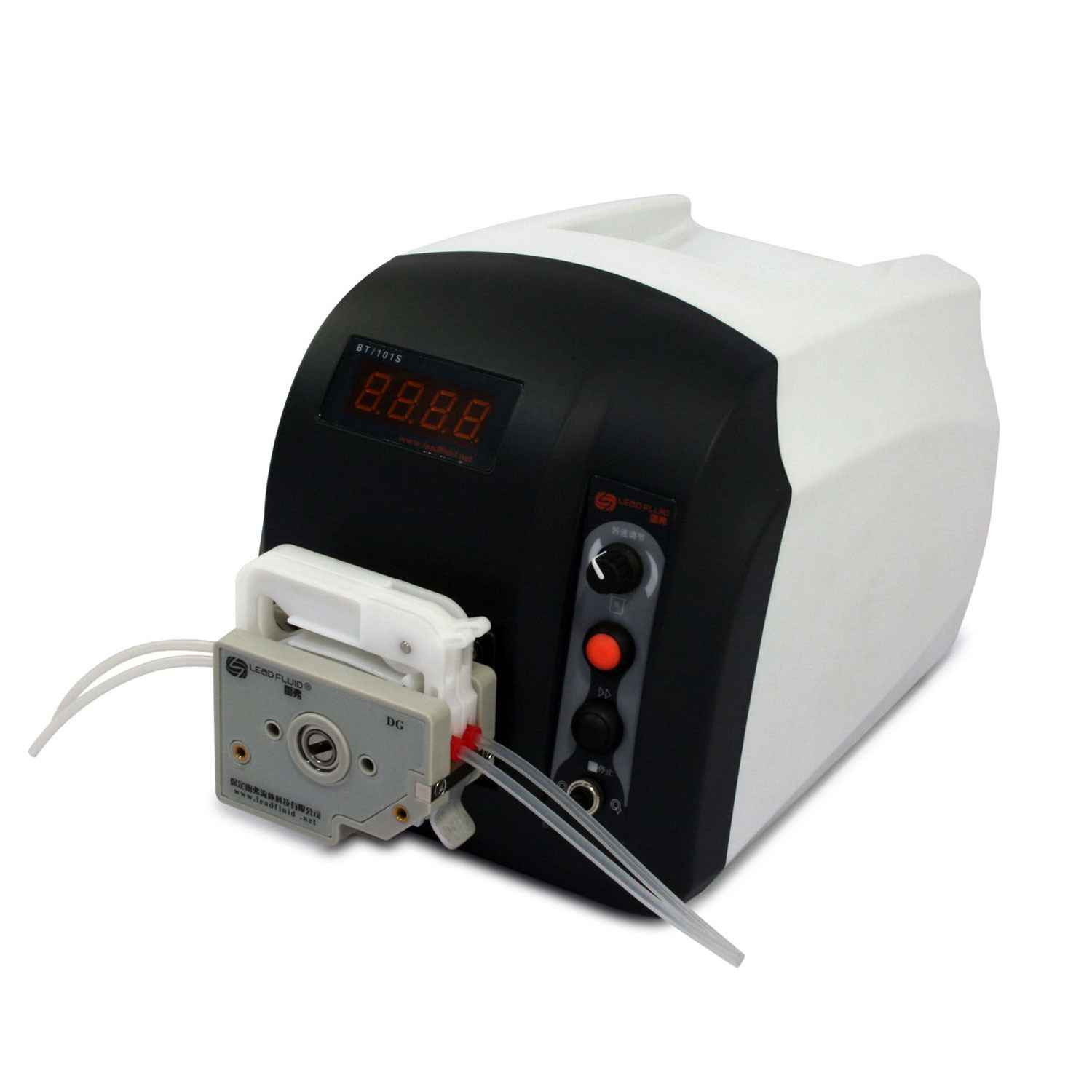

DG6-2 (6rollers)2Wall:0.8~1, ID:≤2.40.00016-26
DG10-2 (10rollers)2Wall:0.8~1, ID:≤2.40.00011-20

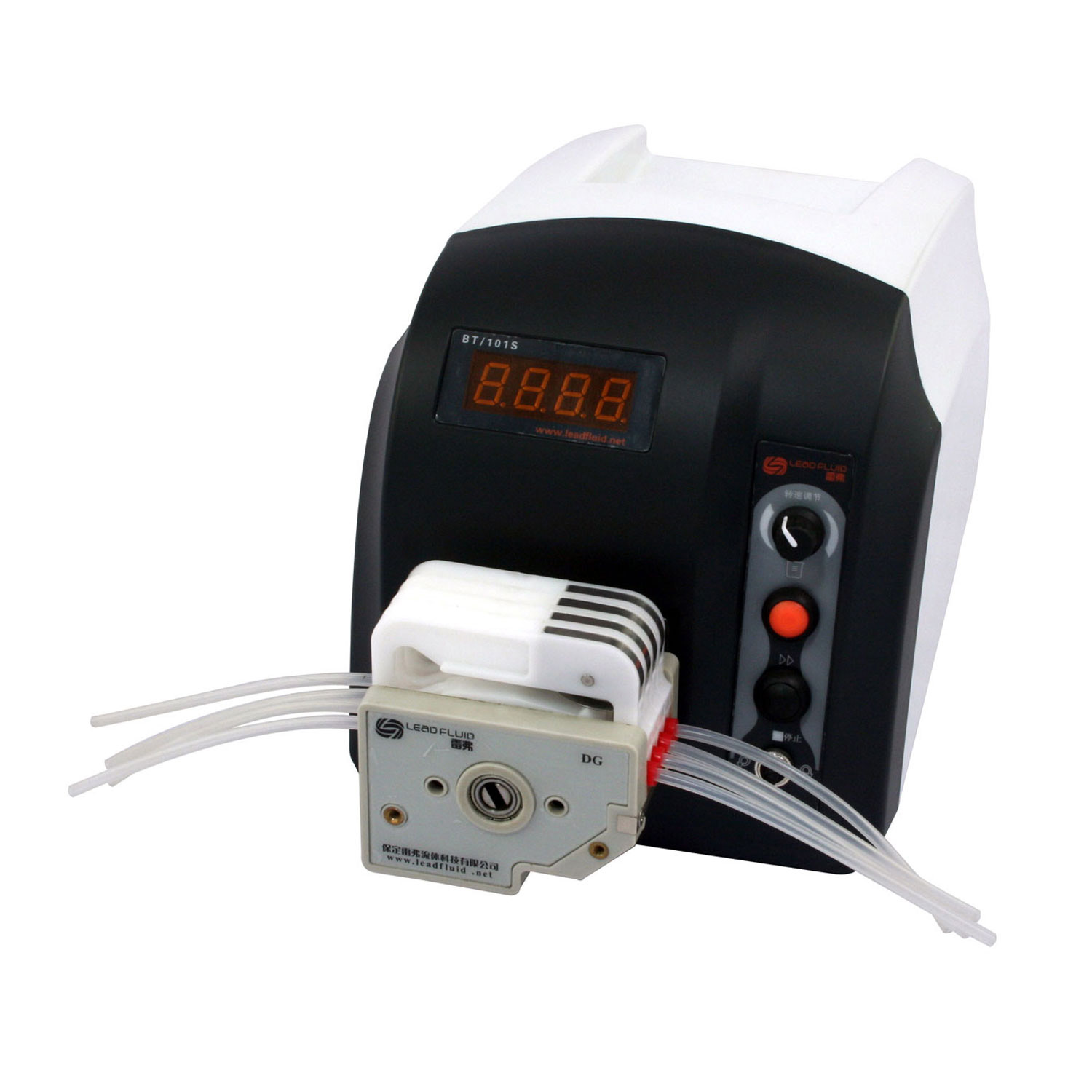

DG6-4 (6rollers)4Wall:0.8~1, ID:≤2.40.00016-26
DG10-4 (10rollers)4Wall:0.8~1, ID:≤2.40.00011-20

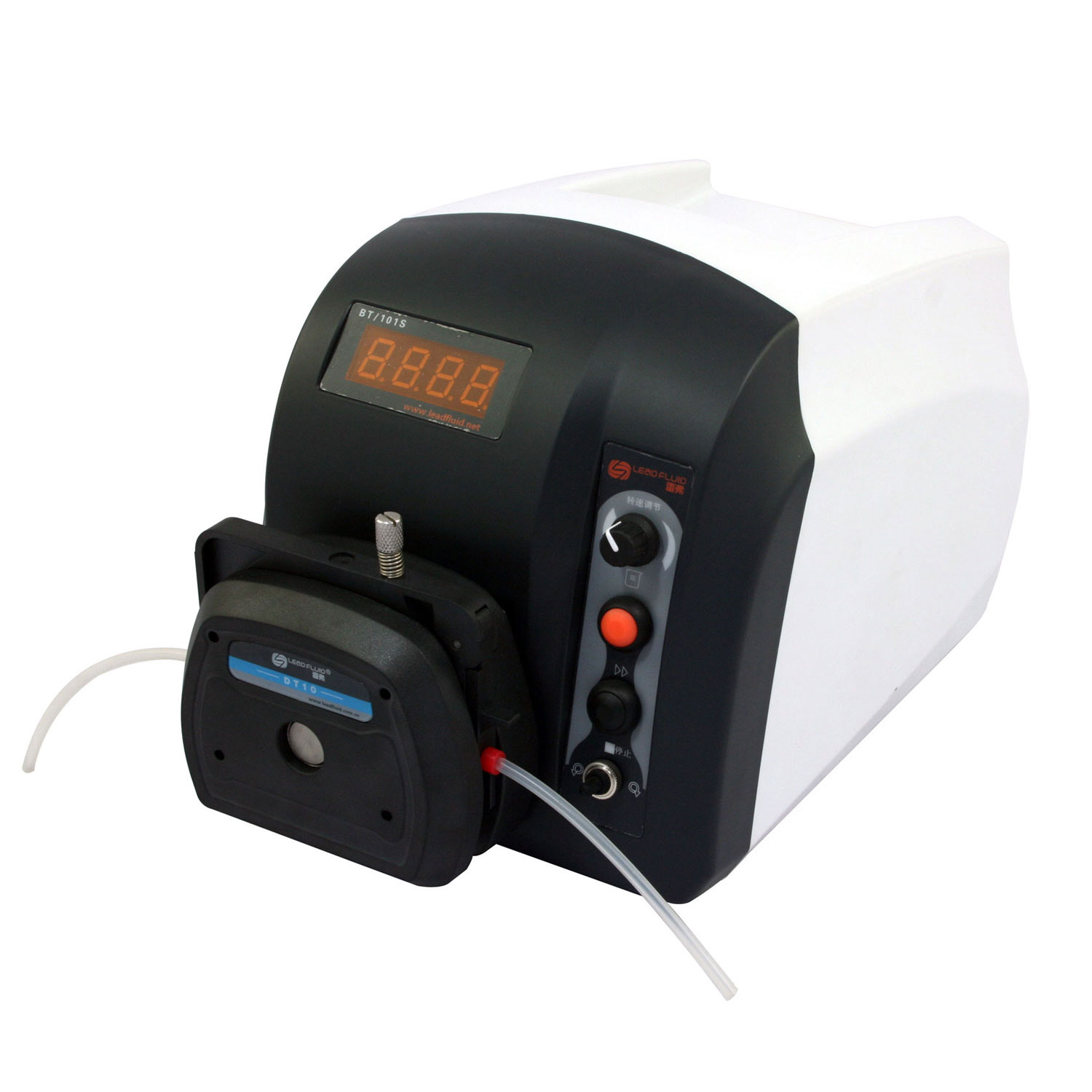

DT10-18113# 14# , Wall:0.8~1, ID:≤3.170.0002-82

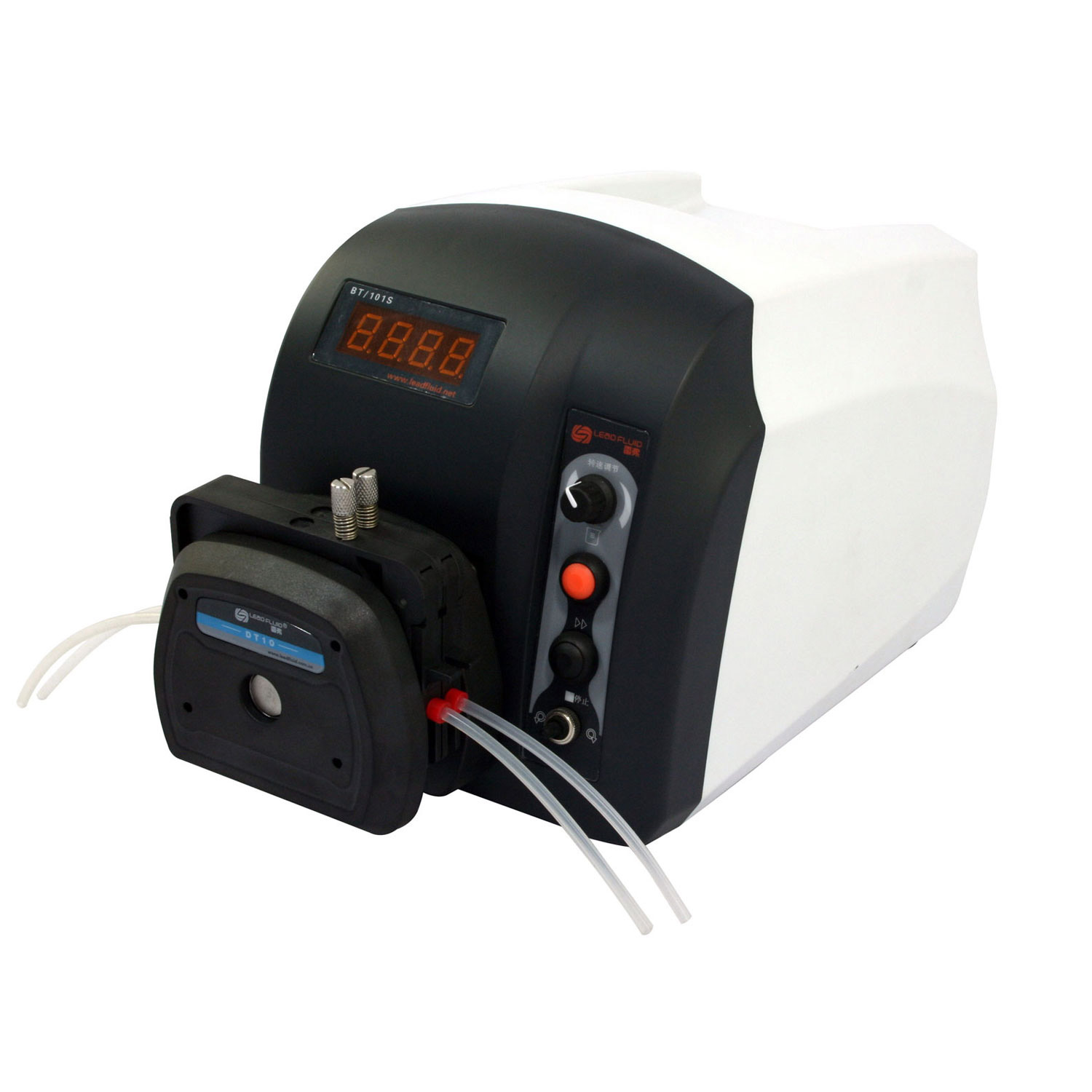

DT10-28213# 14# , Wall:0.8~1, ID:≤3.170.0002-82

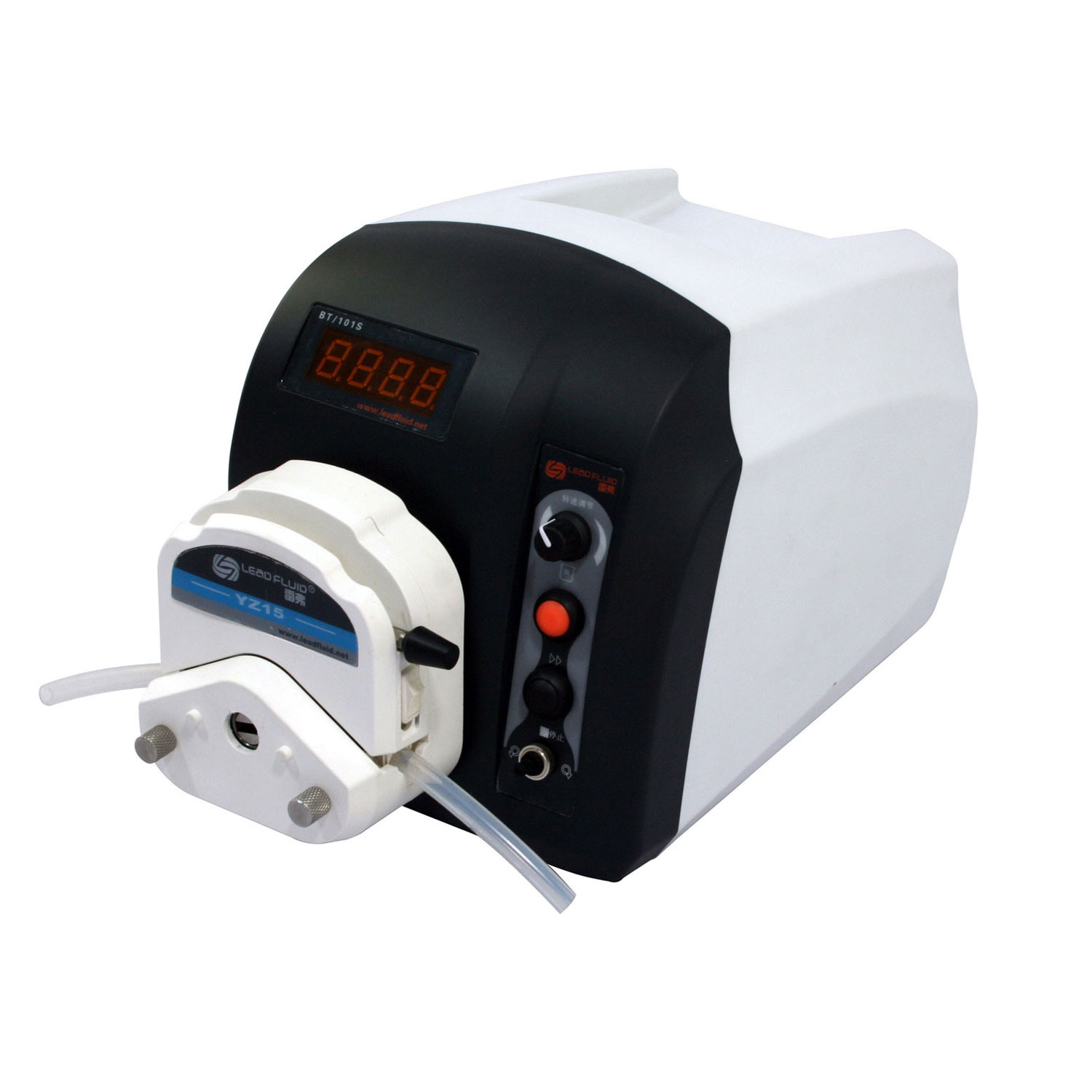

YZ15113# 14# 16# 19# 25# 17#0.006-420

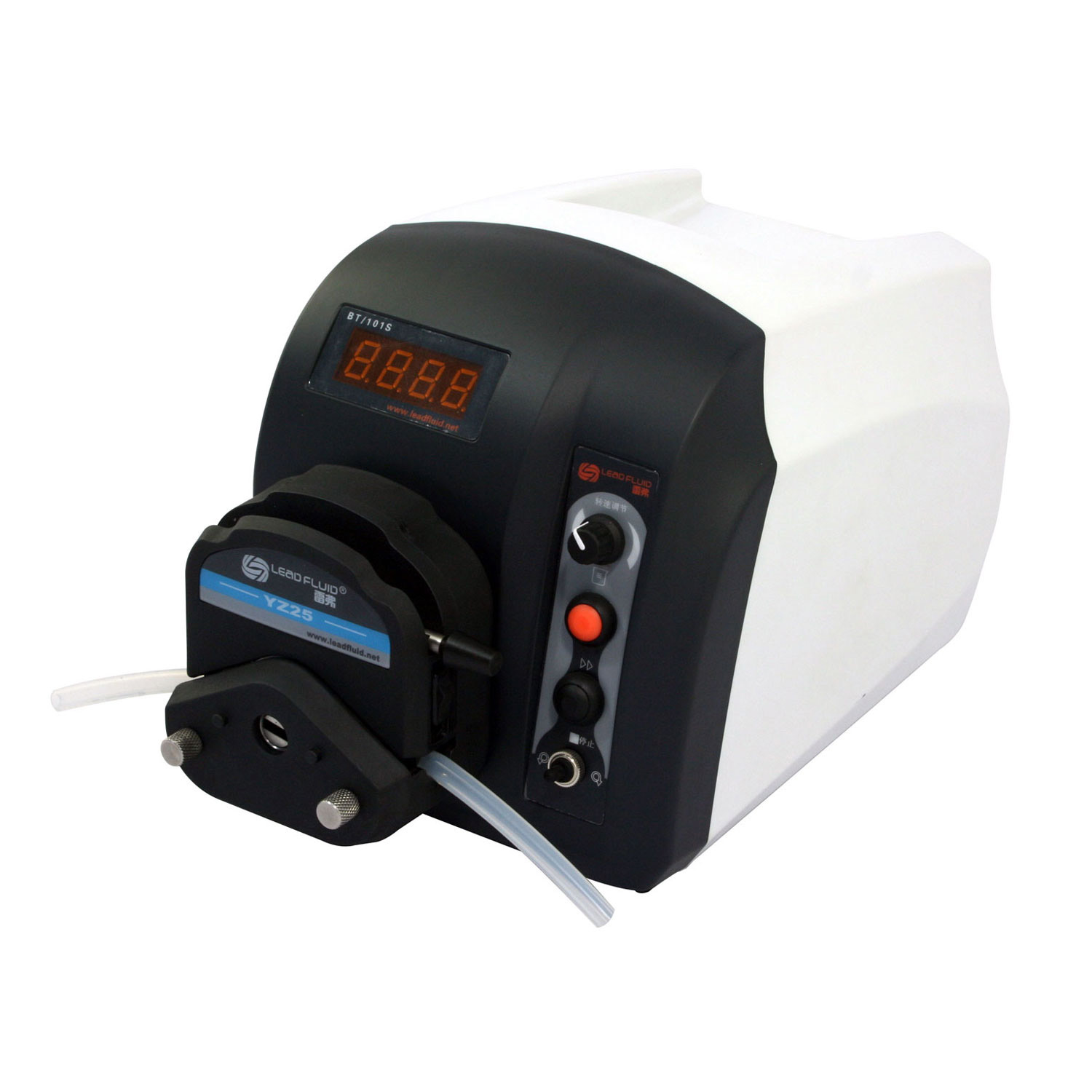

YZ25115# 24#0.16-420

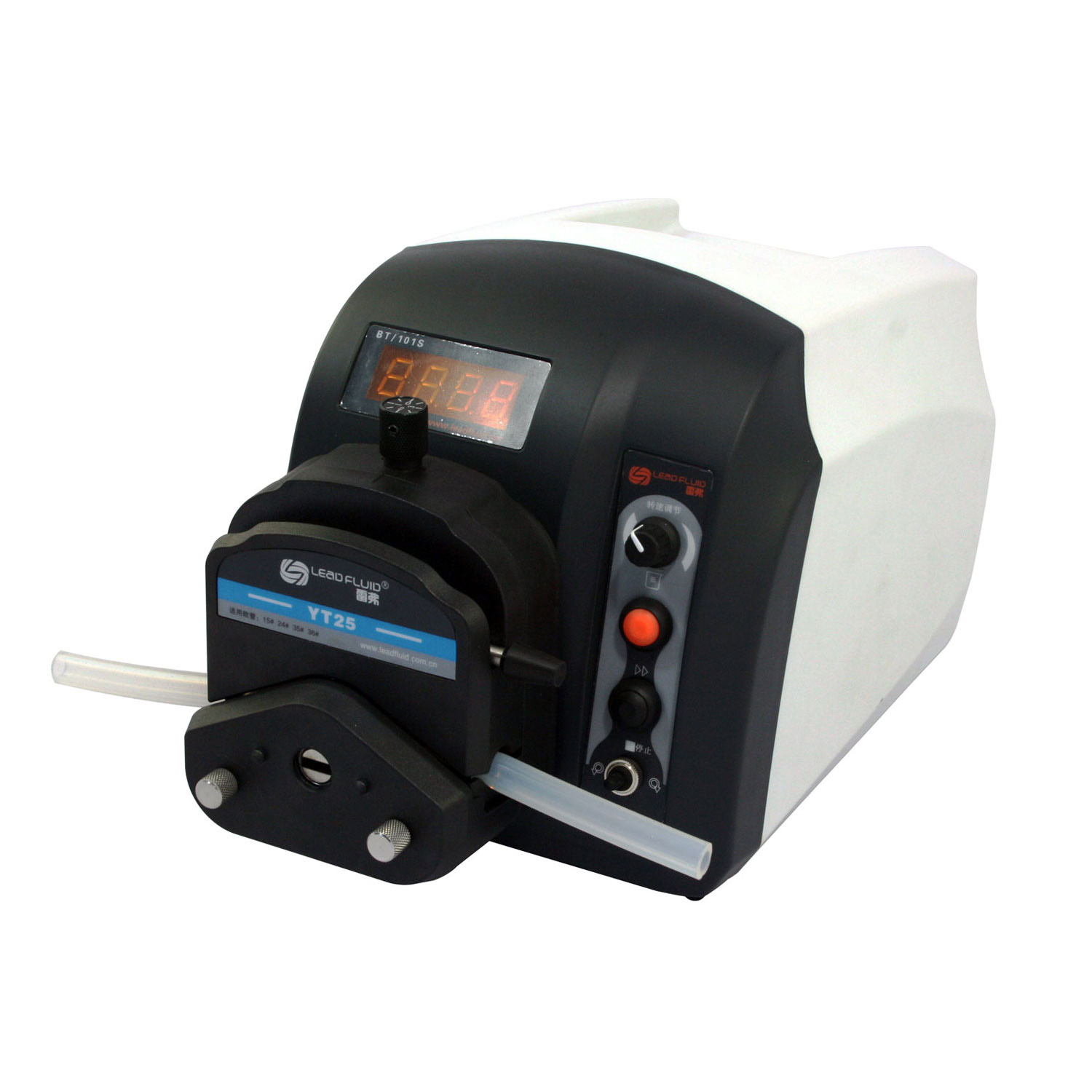

YT15113# 14# 16# 19# 25# 17# 18#0.006-570
YT25115# 24# 35# 36#0.006-720

Additional Information

Weight17 lbs
Dimensions11 × 12 × 17 in
