BT301S Basic Variable Speed Peristaltic Pump

$845.00$875.00

Peristaltic pump BT301S provides flow range from 0.006 to 1600mL/min with variable pump heads and tubings. It has basic functions such as reversible direction, start/stop, full speed (for fast cleaning), adjustable speed. Dispensing function can easily repeat liquid dispensing by time or volume. With RS485 MODBUS interface, the pump is easy to be controlled by external device, such as computer, human machine interface or PLC.

Flow: 0.006-1600mL/min
Max: 1 Channel
SKU: BT301S Category:

Functions and Features

  • Four digit digital LED indicator displays working speed.
  • LED indicator displays the internal control, external control, footswitch or other working mode.
  • Membrane keypad operation.
  • Reversible direction, start/stop, full speed. Running parameters stored automatically.
  • Easy dispensing function, repeats liquid dispensing by time or volume.
  • ABS plastic housing, patent protection, creative streamlined appearance.
  • Can drive multi-channels and various types of pump heads.
  • The circuit board with conformal coating makes it dust-proof and moisture-proof.
  • Anti-interference feature, wide input voltage range for complex power environment.
  • External on/off voltage control signal controls start/stop, reversible direction and easy dispensing function, optically coupled isolator; external analog control signal adjusts the rotating speed.
  • With RS485 MODBUS interface, easy to be controlled by external devices.
  • Optional footswitch or timer for dispensing fluid.

Specifications

  • Flow range: 0.006-1600 mL/min
  • Flow accuracy: 0.5%.
  • Speed range: 0.1-350rpm
  • Speed resolution: between 0.1-100 rpm, the speed resolution is 0.1 rpm; between100-350 rpm, the speed resolution is 1 rpm
  • Power supply: AC 220V±10%, 50Hz/60Hz (standard); AC 110V±10%, 50Hz/60Hz (optional)
  • Power consumption: < 40W
  • External control on/off signal: 5V, 12V (standard), 24V(optional). External analog control signal: 0-5V(standard), 0-10V, 4-20mA(optional)
  • Communication interface: RS485 MODBUS.
  • Ambient temperature: 0-40°C
  • Relative humidity: < 80%
  • IP grade: IP31
  • Dimensions (L x W x H): 260 x 181 x198mm (10.2 x 7.1 x 7.8 inch)
  • Weight: 4.7 kg (10.4 lbs)

BT301S Applicable Pump Heads and Tubings, Flow Parameters

Drive type Suitable pump heads channel Tubing size (mm) Flow rate (mL/min) per channel
BT301S
(ABS)

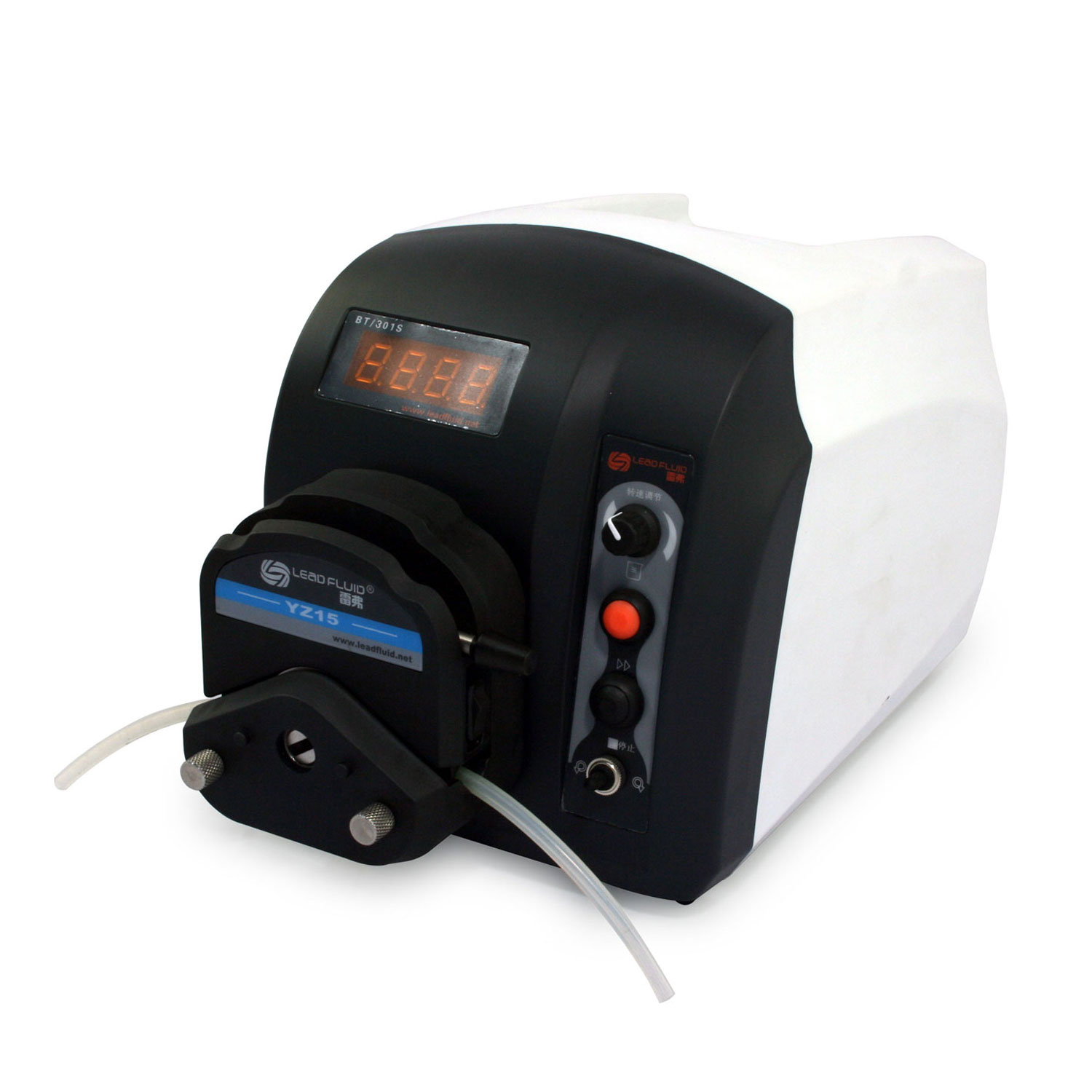

YZ15 1 13# 14# 16# 19# 25# 17# 0.006-990

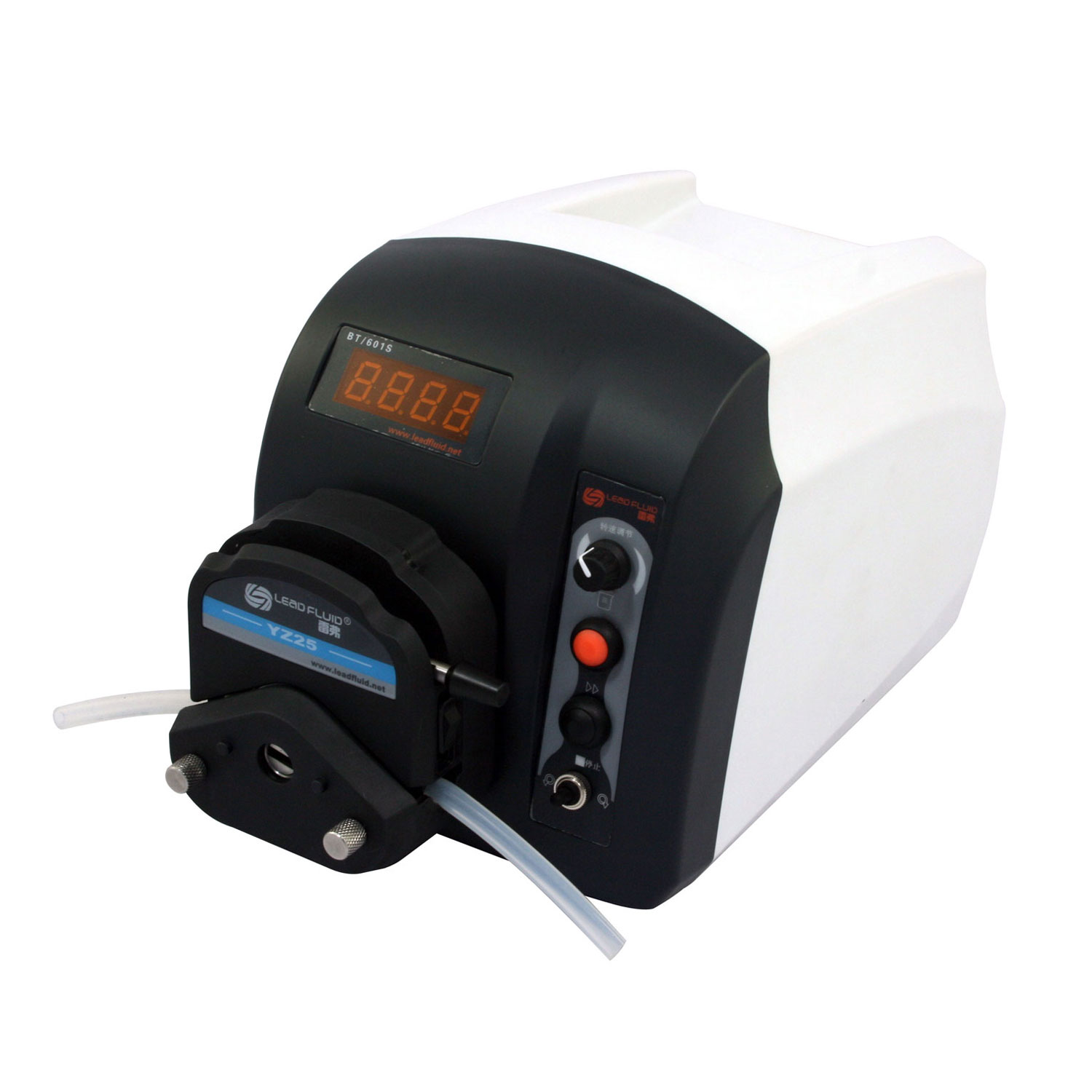

YZ25 1 15# 24# 0.16-990

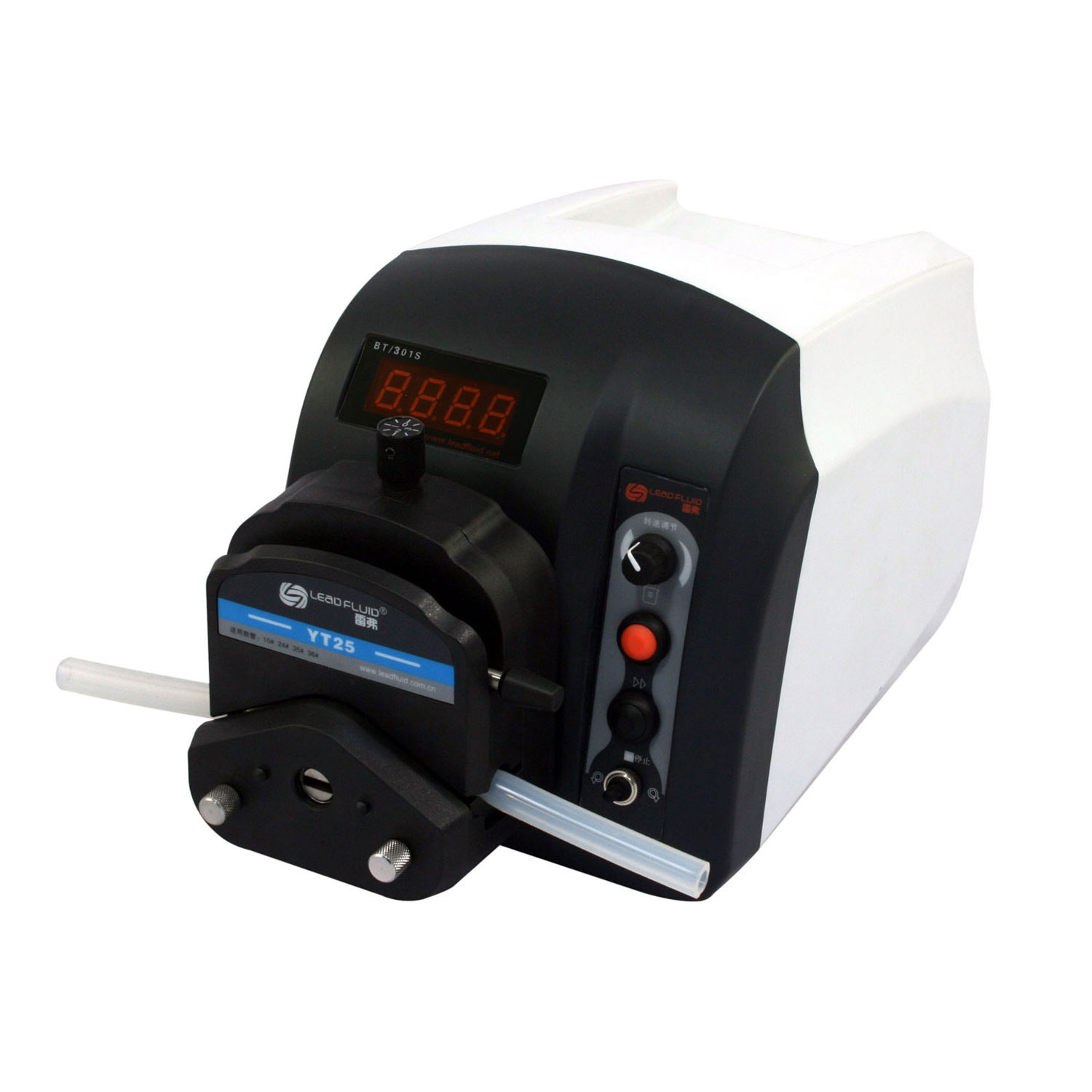

YT15 1 13# 14# 16# 19# 25# 17# 18# 0.006-1300

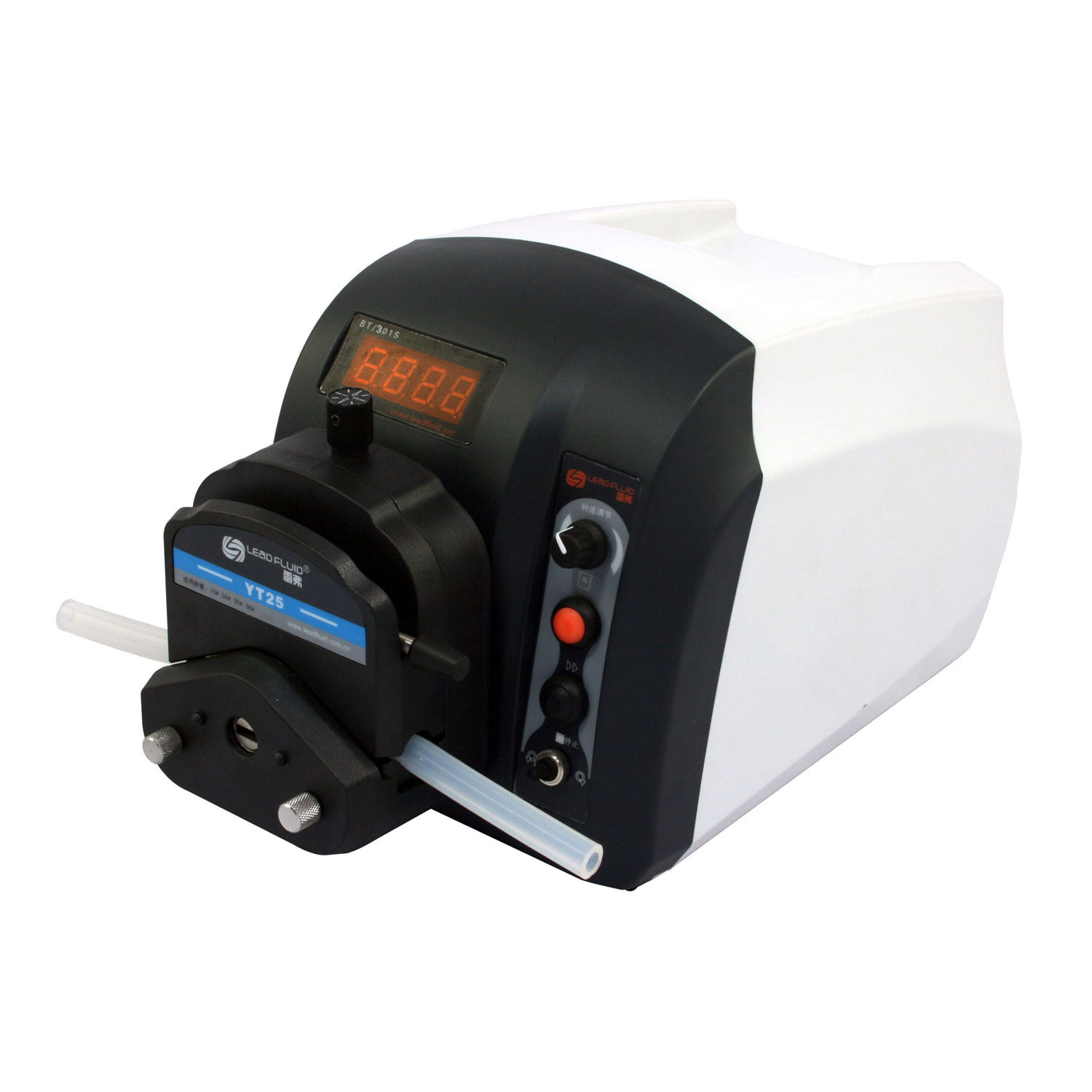

YT25 1 15# 24# 35# 36# 0.16-1600

Additional Information

Weight 17 lbs
Dimensions 11 × 12 × 17 in
