BT103S Microflow Variable-Speed Peristaltic Pump

Functions and Features

• Membrane keypad operation, simple, convenient and durable.
• High-quality closed-loop stepper motor drive, accurate speed and smooth operation, allowing for high-precision flow transmission.
• Basic functions such as forward and reverse, start/stop, full speed, speed regulation, state memory (power-down memory).
• Parameters include running time, interval time, number of cycles, etc. to meet the needs of timed dosing, liquid dispensing, and flow testing.
• The slow stop and anti-drip function can effectively prevent liquid dripping when stopping.
• Key lock function to prevent misoperation.
• Streamlined plastic housing, easy to clean.
• Circuit board with layered paint process for dust and moisture-proof.
• Excellent anti-interference characteristics, wide voltage range, suitable for complex power supply environment.
• A variety of external control signals can be used to control start/stop, forward/reverse rotation, speed adjustment, and optocoupler isolation.
• RS485 communication, compatible with Modbus protocol, for convenient connection with various control devices.
• Support blocking alarm, leakage alarm (optional).
• A thermal printer can be connected for real-time printing of operating parameters (optional).
• Can be connected with a variety of high-performance pump heads.

Specifications

• • Flow rate: 0.0001 to 480ml/min
  • Speed range: 0.1 to 100rpm
  • Speed resolution: 0.1rpm
  • Speed Accuracy: 0.2%
  • Display : monochrome 128×32 dot matrix LCD, 77x32mm
  • Key lock: long press the direction key to lock, long press the start/stop key to unlock
  • Timing function: running time 0.1- 999 seconds/minutes/hours/day, intermittent time 0.1- 999 seconds/minutes/hours/day
  • Cycle: 0-999 times (0 is infinite cycle)
  • Suction return angle: 0-720 degrees
  • External control signal input: (1) start/stop: passive contact, external control input level (5-24V); (2) Forward/reverse: passive contact, external control input level (5-24V); (3) Speed adjustment: analog 0-5V, 0-10V, 4~20mA (optional)
  • Communication interface: RS485 MODBUS interface
  • Operating condition: Temperature 0-40°C; Relative humidity <80%
  • IP grade: IP31
  • Dimensions (L x W x H): 232 x 140 x 145 mm (9.1x 5.5 x 5.7 inch)
  • Weight: 2.9 kg (6.4lbs)

  BT103S Suitable Pump Heads and Tubings, Flow Parameters

  Drive	Pump head	No. of channels	Tubing size (mm)	Flow rate (mL/min) per channel

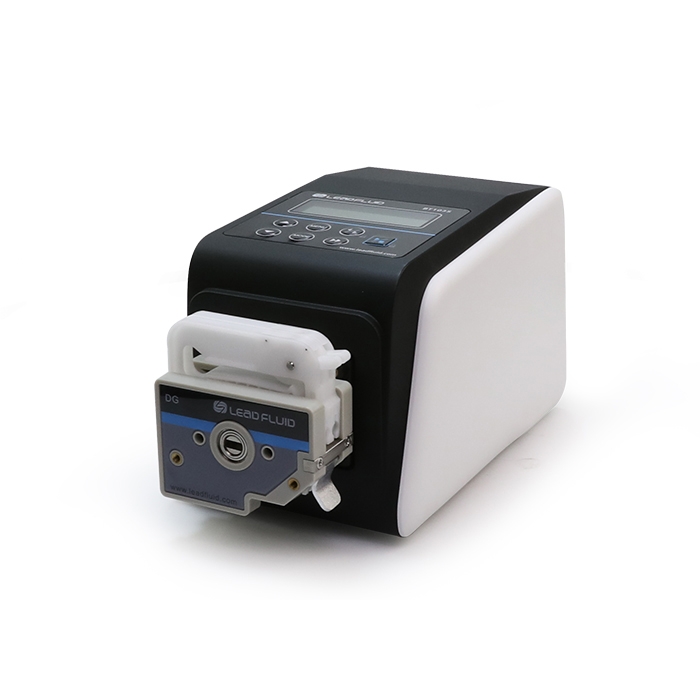

  BT103S	DG6-1	1	Wall 0.8-1, ID≤3.17	0.0002-49
  	DG10-1	1	Wall 0.8-1, ID≤3.17	0.0001-41
  	DG6-2	2	Wall 0.8-1, ID≤3.17	0.0002-49
  	DG10-2	2	Wall 0.8-1, ID≤3.17	0.0001-41
  	DG6-4	4	Wall 0.8-1, ID≤3.17	0.0002-49
  	DG10-4	4	Wall 0.8-1, ID≤3.17	0.0001-41

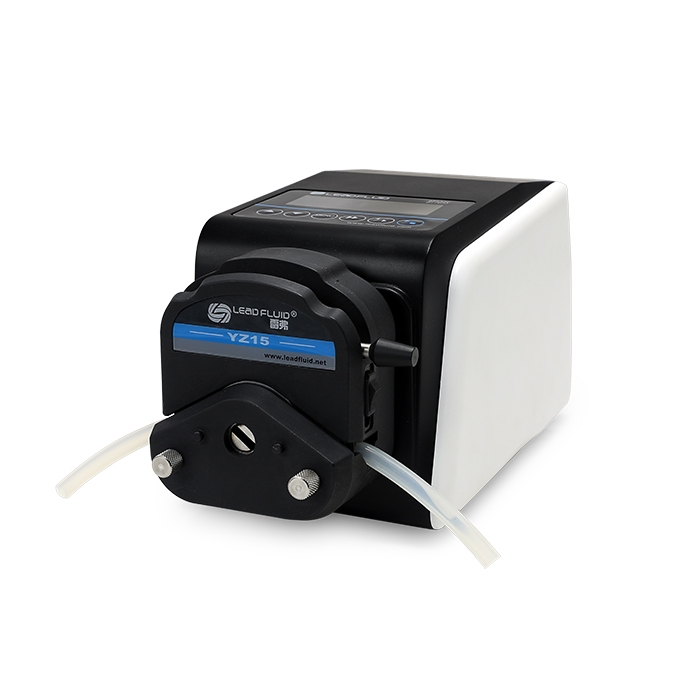

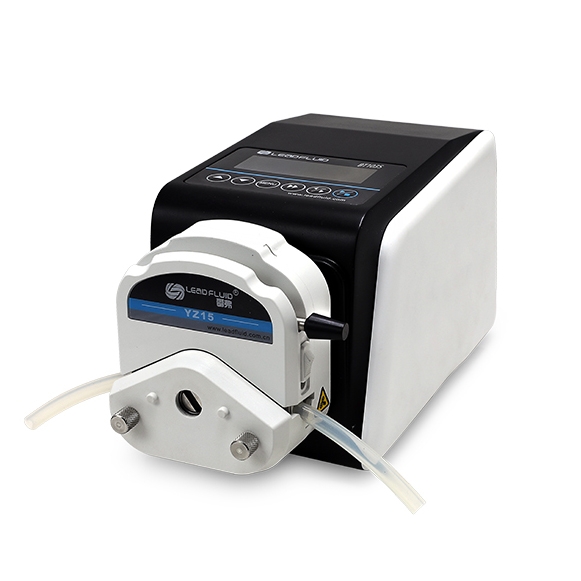

  	YZ15	1	13# 14# 19# 16# 25# 17# 18#	0.006-380
  	YT25	1	15# 24# 35# 36#	0.16-480
