BT100S Variable-Speed Peristaltic Pump

$572.50$925.00

BT100S basic variable-speed peristaltic pump provides flow range from 0.00011 to 720 mL/min with variable pump heads and tubings. It provides not only the basic functions such as reversible direction, start/stop and adjustable speed, but also Time Dispense Mode and Anti-Drip function. With MODBUS RS485 interface, pump is easy to communicate with external device, such as PC, HMI or PLC.

Flow: 0.00011-720mL/min
Max: 4 Channels
SKU: BT100S Category:

Functions and Features

  • LCD displays rotating speed and working mode.
  • Membrane keypad.
  • Reversible direction, start/stop control and adjustable speed.
  • Time dispense mode: automatically dispense by setting the duration for each dose, lag time between doses and number of cycles.
  • 0.5% high precision rotating speed control with 0.1 rpm speed resolution when speed is between 0-100 rpm, 1 rpm speed resolution when speed is between 100-600 rpm.
  • External logic level signal can control start/stop, direction and dispense functions; external analog signal can adjust the rotating speed. Signal is optically isolated.
  • With RS485 MODBUS interface, easy to communicate with external device.
  • Internal double-layer isolation structure; circuit board with conformal coating makes the pump dust-proof and moisture proof.
  • Anti-electromagnetic interference feature, wide input voltage range for complex power environment.
  • Stainless steel enclosure, easy to clean, resistant to the corrosion of the acid, alkali, sodium and organic solvents.

Specifications

  • Flow range: 0.00011-720 mL/min
  • Speed range: 0.1-150 rpm
  • Speed resolution: 0.1-100 rpm, 0.1 rpm resolution; 100-150 rpm, 1 rpm resolution
  • Speed accuracy: 0.5%
  • Power supply: AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz
  • Power consumption: < 40W
  • External logic level control signal: 5V, 12V (standard), 24V (optional).
  • External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional)
  • Communication interface: RS485 MODBUS
  • Operating condition: Temperature 0~40°C; Relative humidity <80%
  • IP grade: IP31
  • Dimensions (L x W x H): 226 x 150 x 238 mm (8.90 x 5.91 x 9.37 inch)
  • Weight: 4.7 kg (10.4 lbs)

BT100S Suitable Pump Heads and Tubing, Flow Parameters

Drive typePump headChTubing size (mm)Flow rate per channel (mL/min)
BT100S
(304SS case)

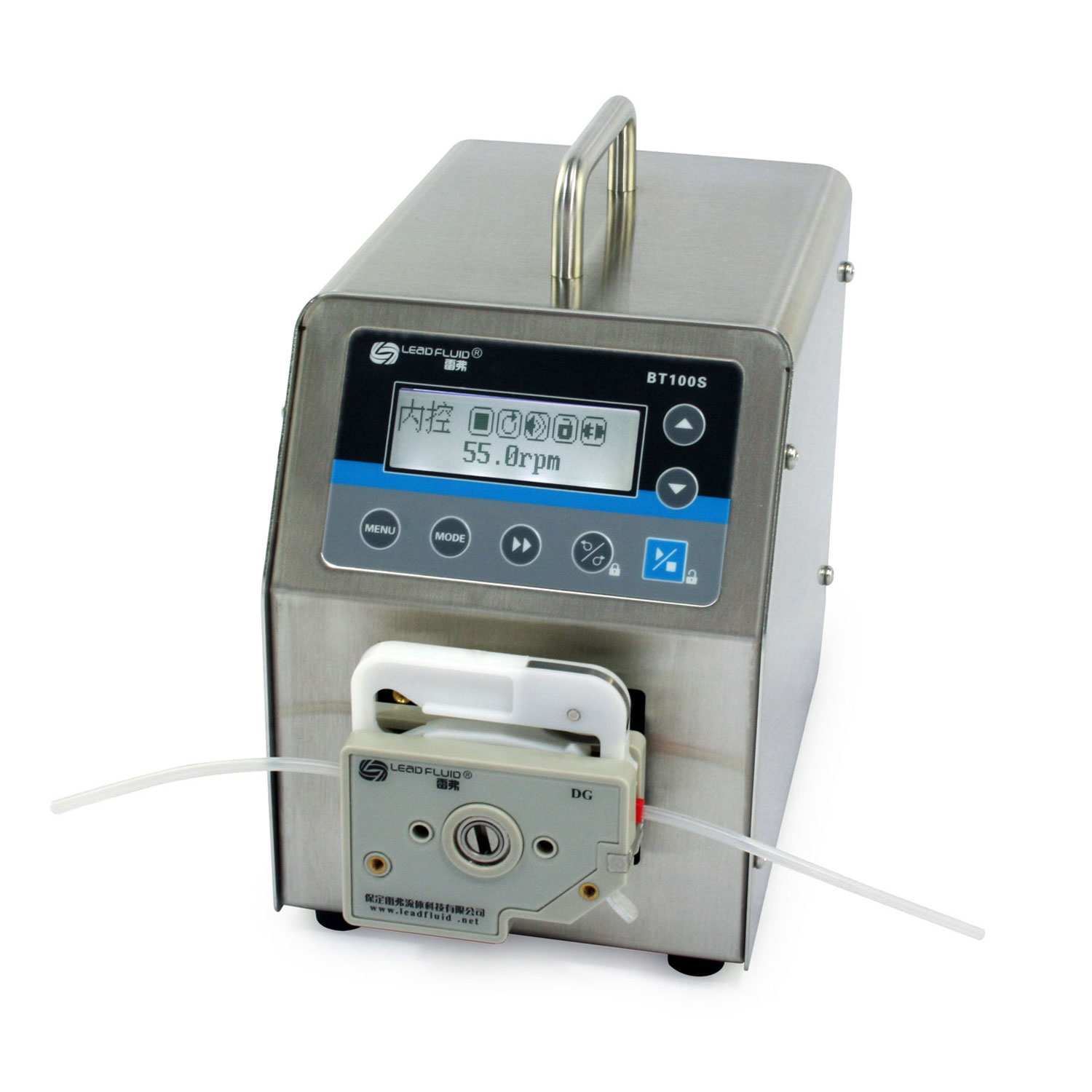

DG6-1 (6rollers)1Wall:0.8-1, ID:≤2.40.00016-26
DG10-1 (10rollers)1Wall:0.8-1, ID:≤2.40.00011-20

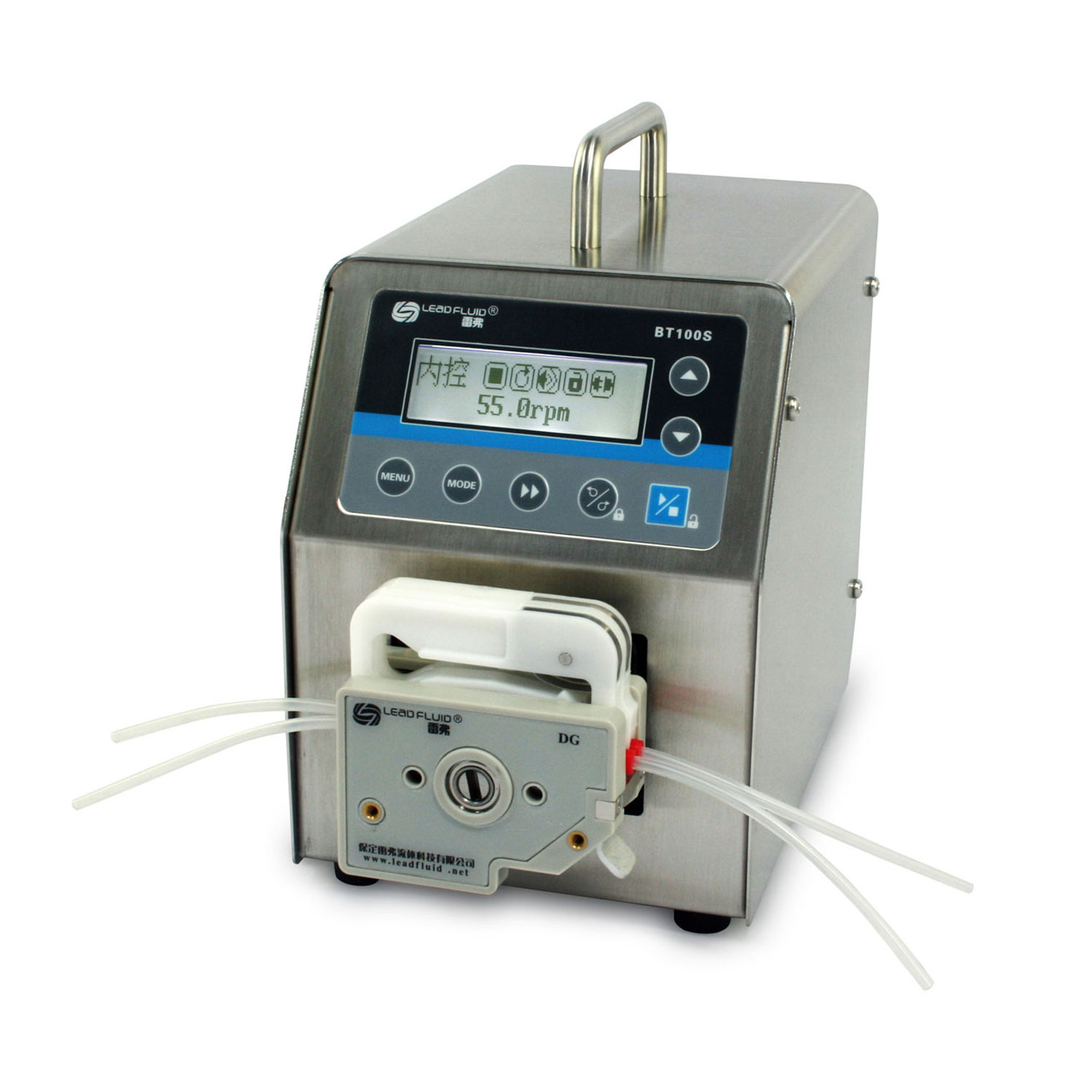

DG6-2 (6rollers)2Wall:0.8-1, ID:≤2.40.00016-26
DG10-2 (10rollers)2Wall:0.8-1, ID:≤2.40.00011-20

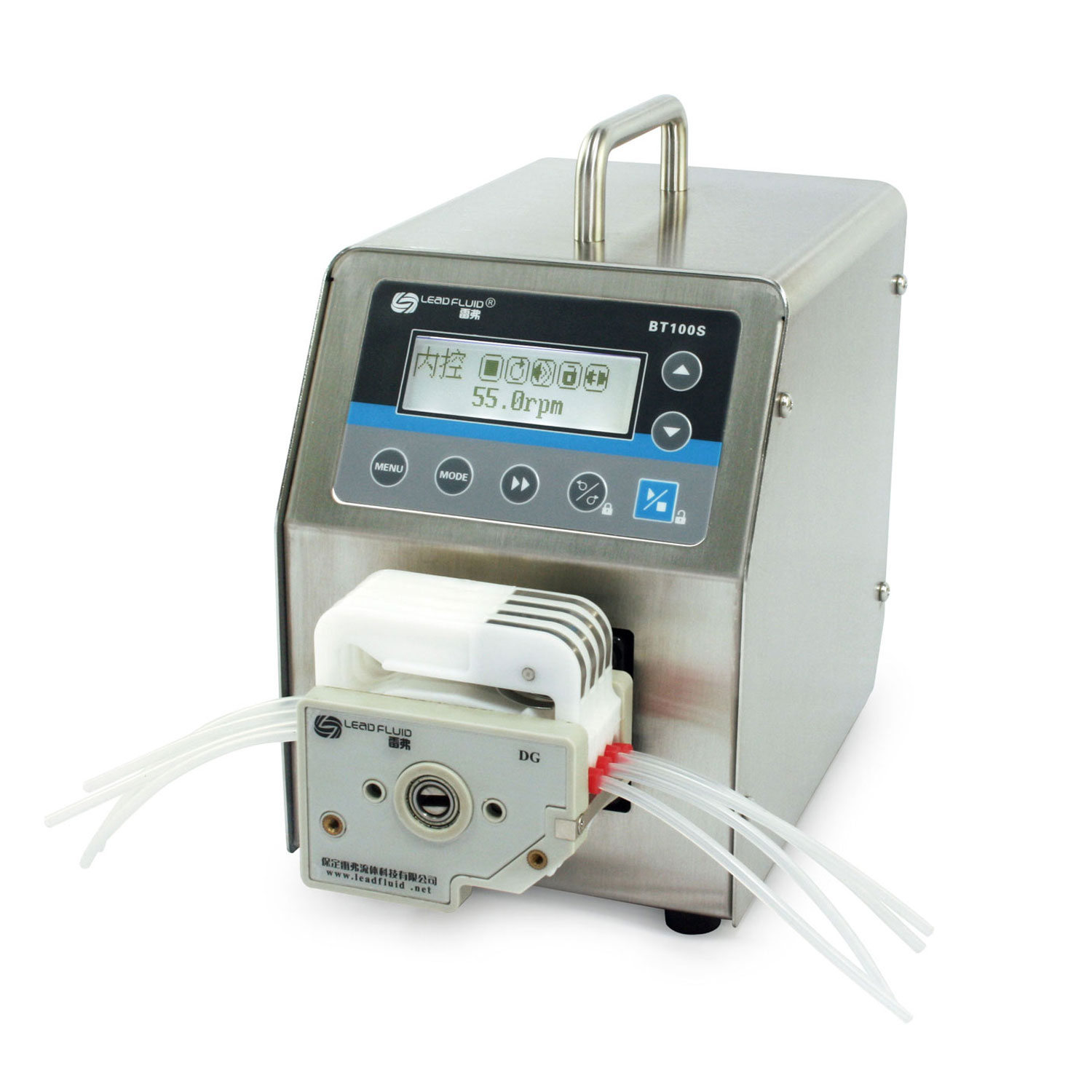

DG6-4 (6rollers)4Wall:0.8-1, ID:≤2.40.00016-26
DG10-4 (10rollers)4Wall:0.8-1, ID:≤2.40.00011-20

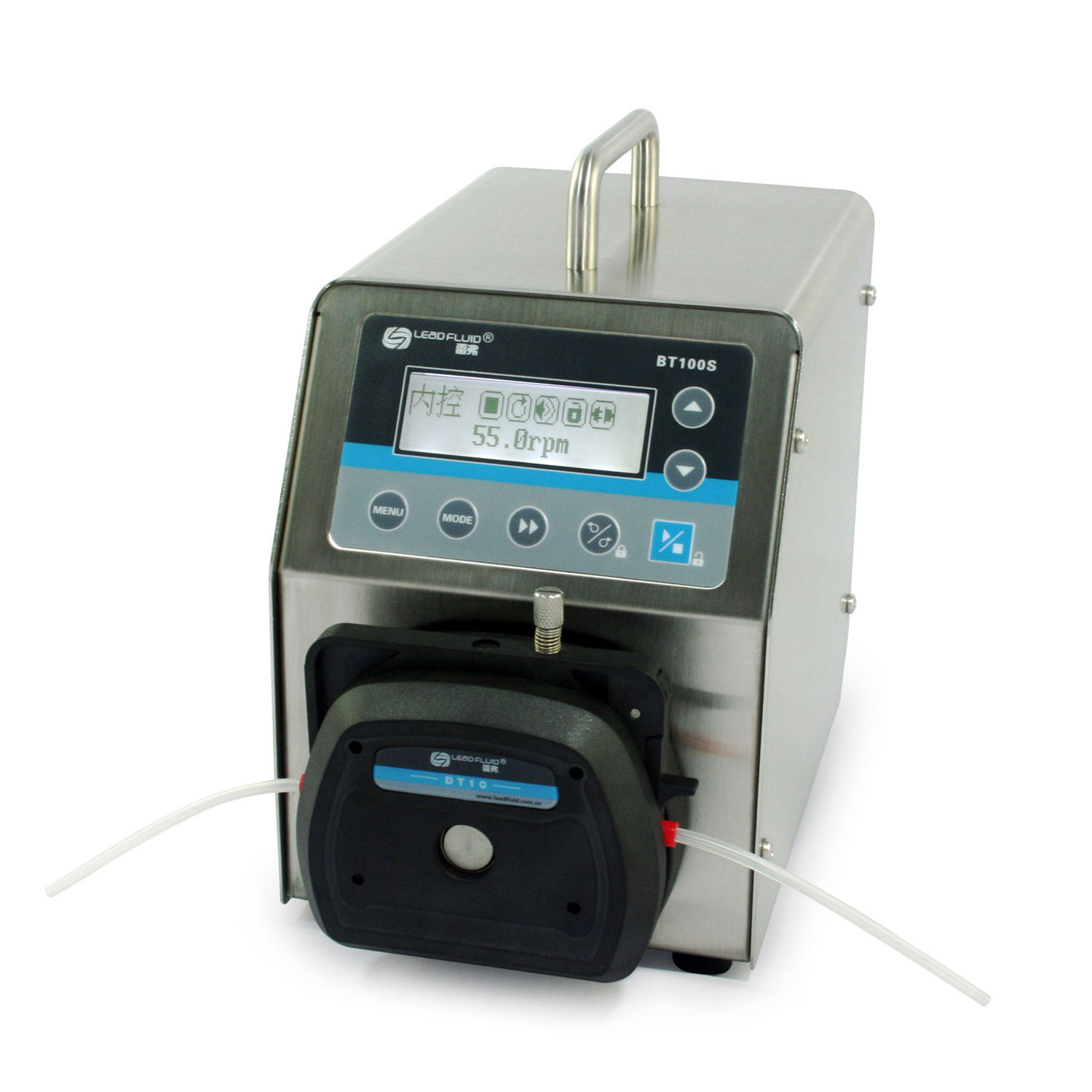

DT10-18113# 14# , Wall: 0.8-1, ID:≤3.170.0002-82

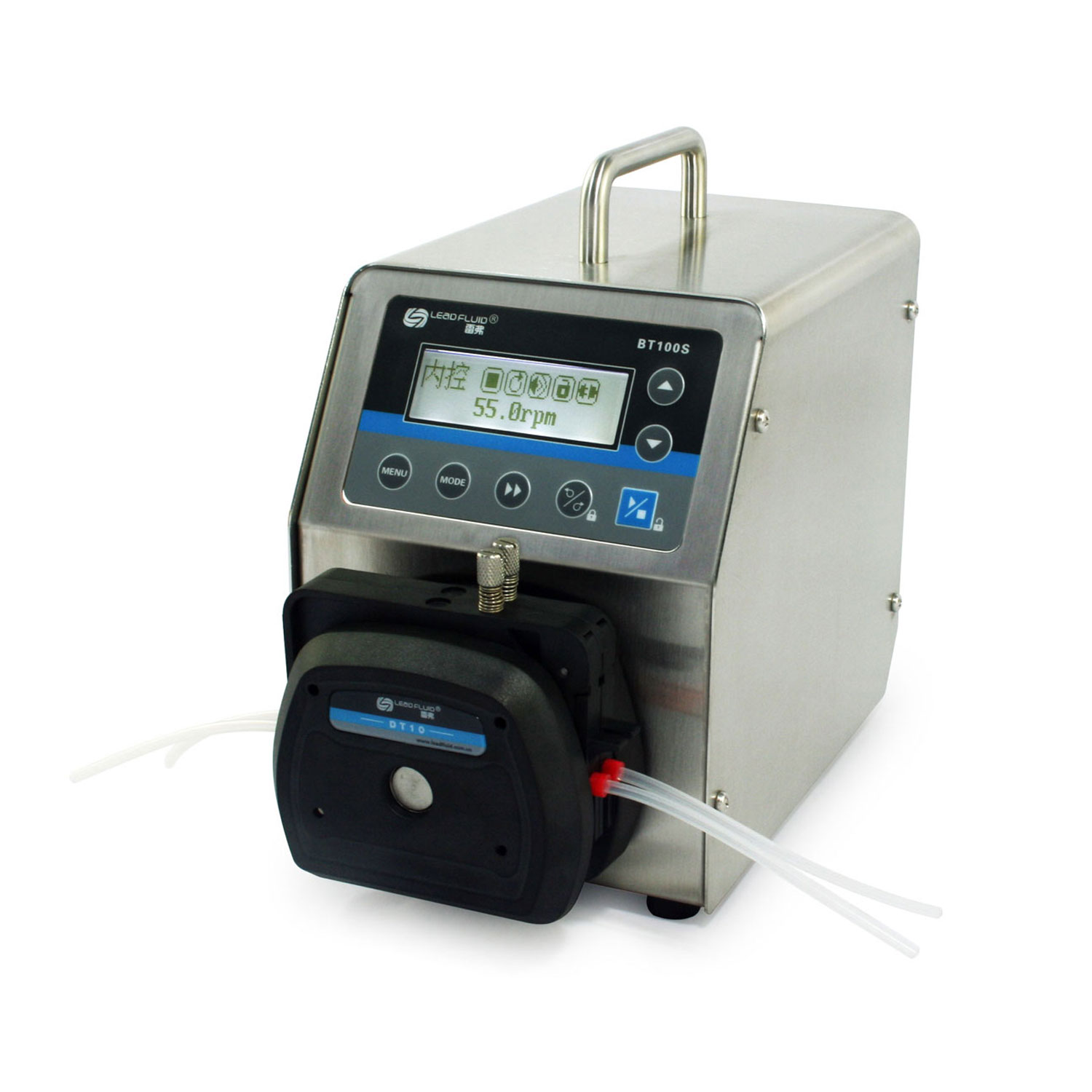

DT10-28213# 14# , Wall: 0.8-1, ID:≤3.170.0002-82

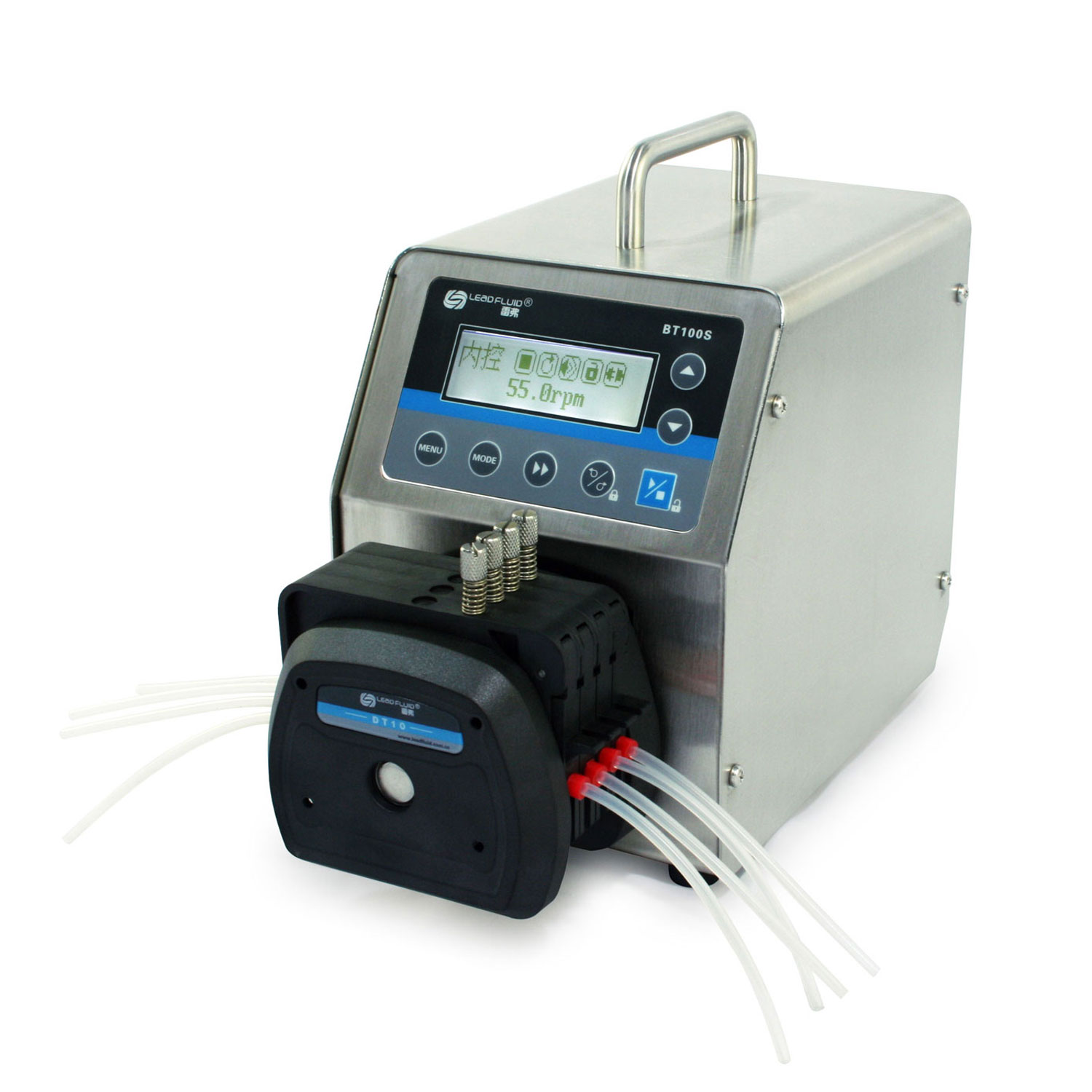

DT10-48413# 14# , Wall: 0.8-1, ID:≤3.170.0002-82

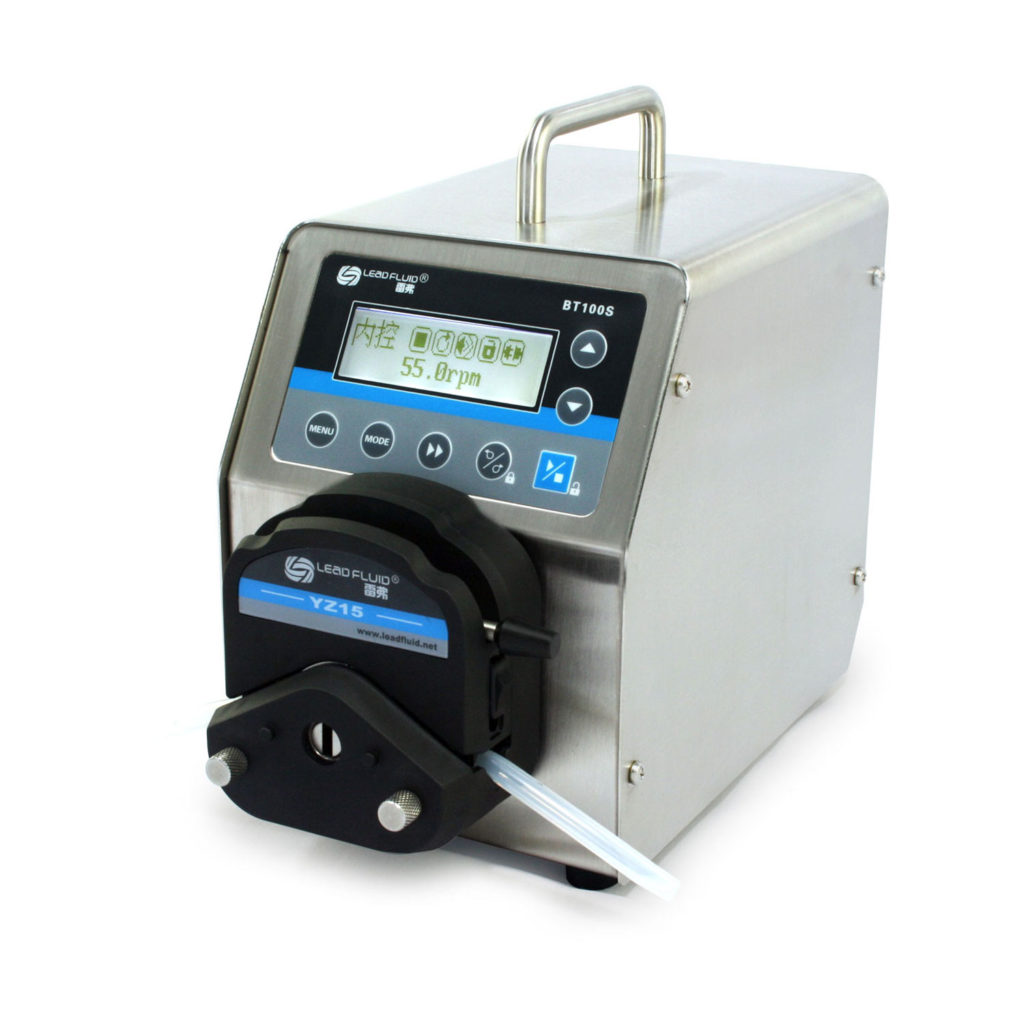

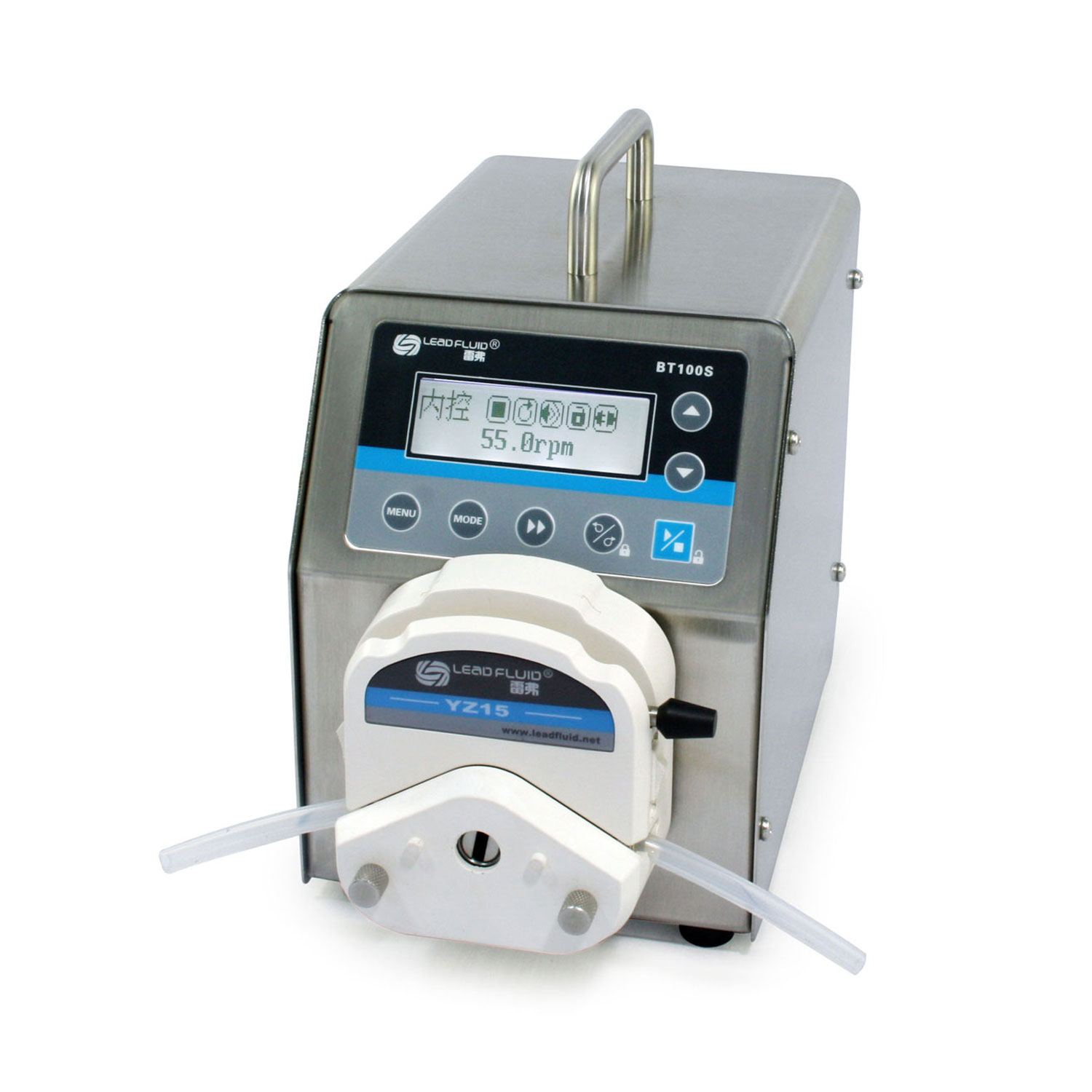

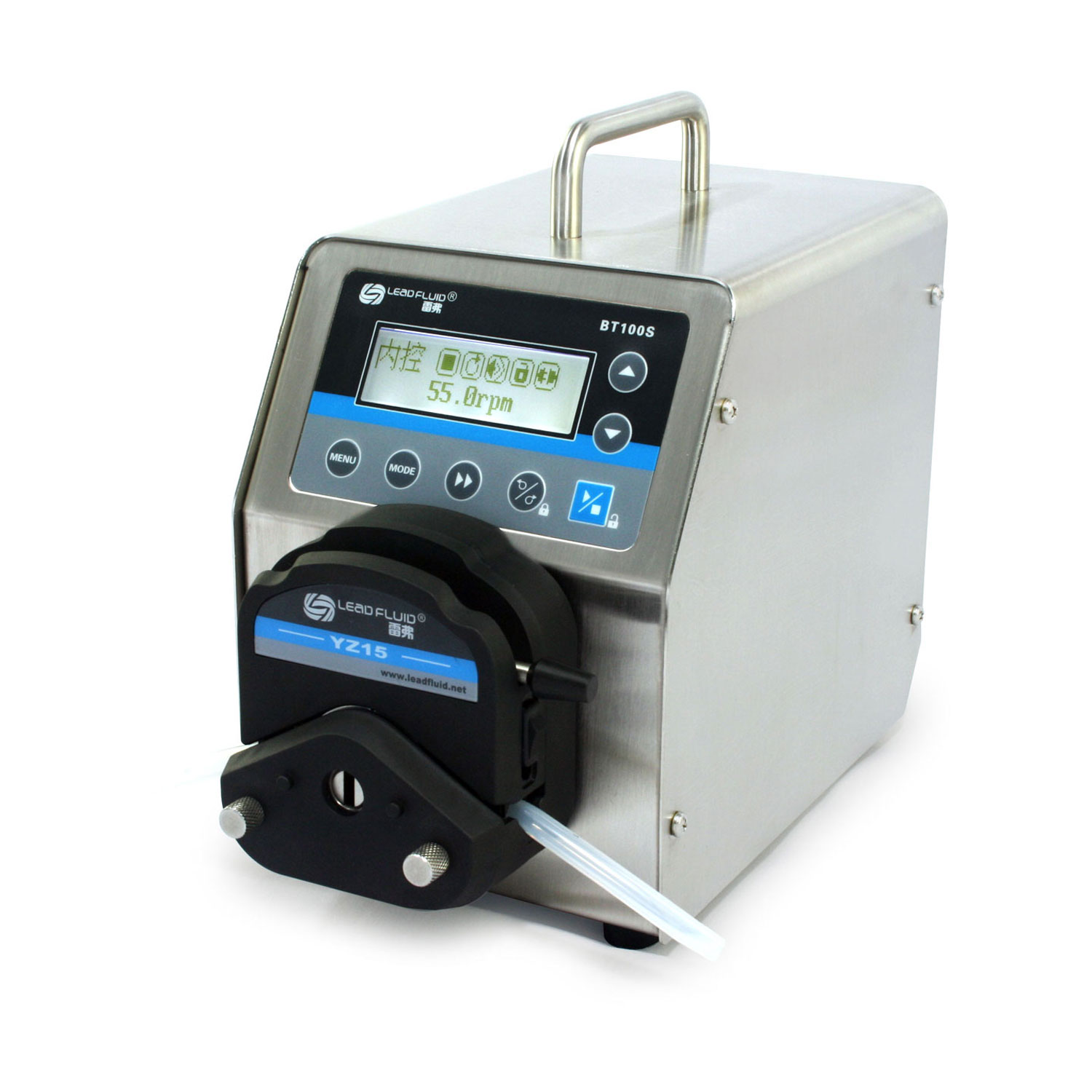

YZ15113# 14# 16# 19# 25# 17#0.006-420

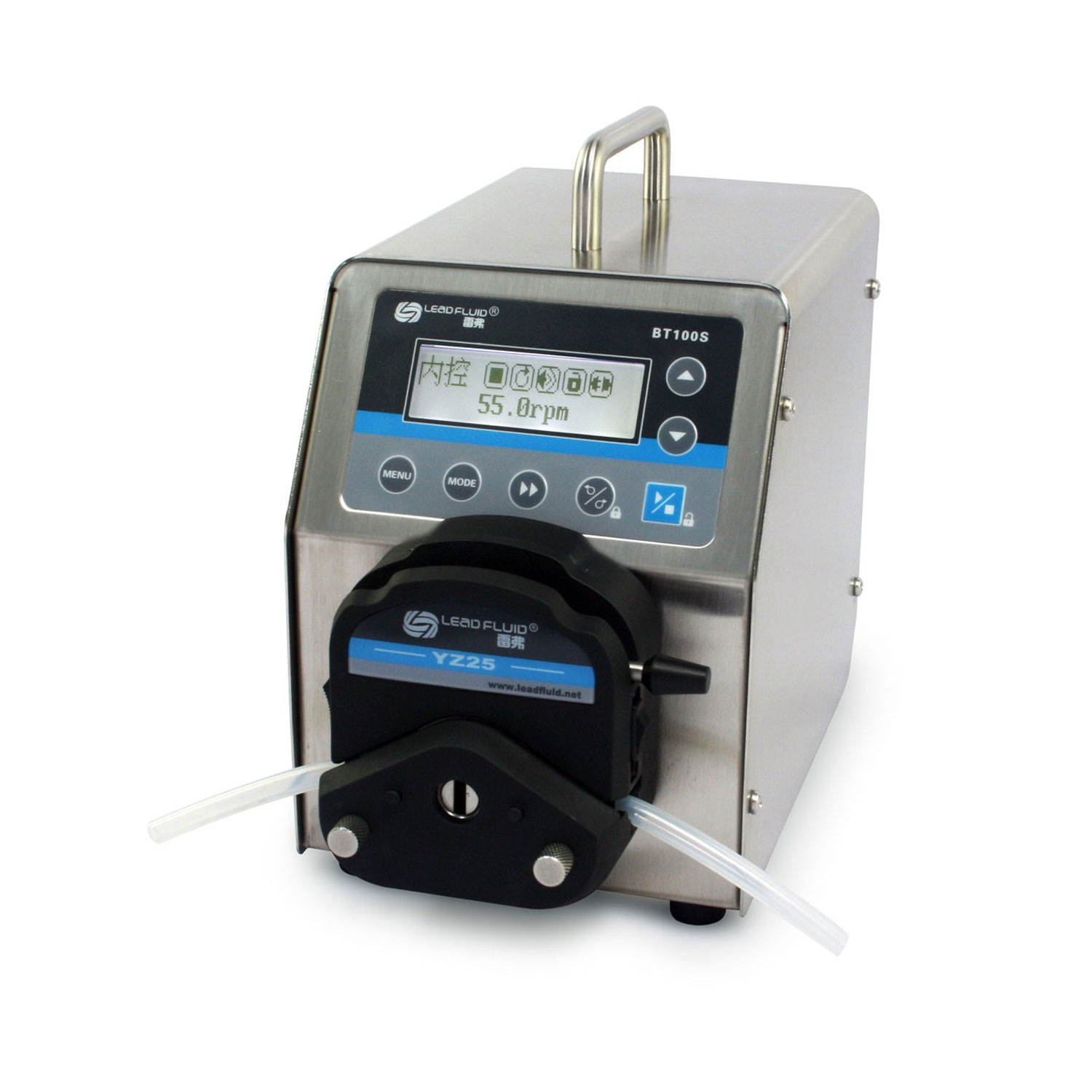

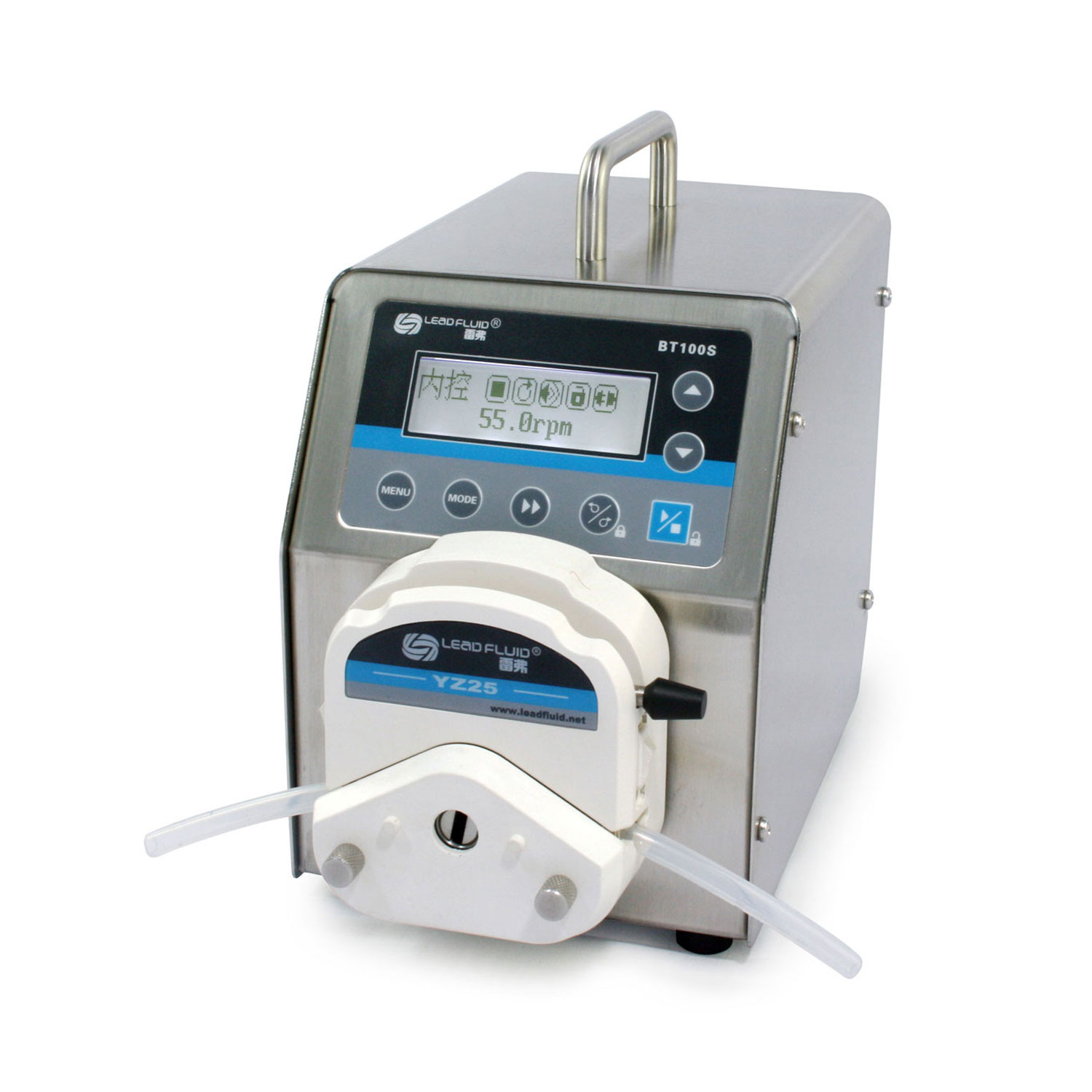

YZ25115# 24#0.17-420

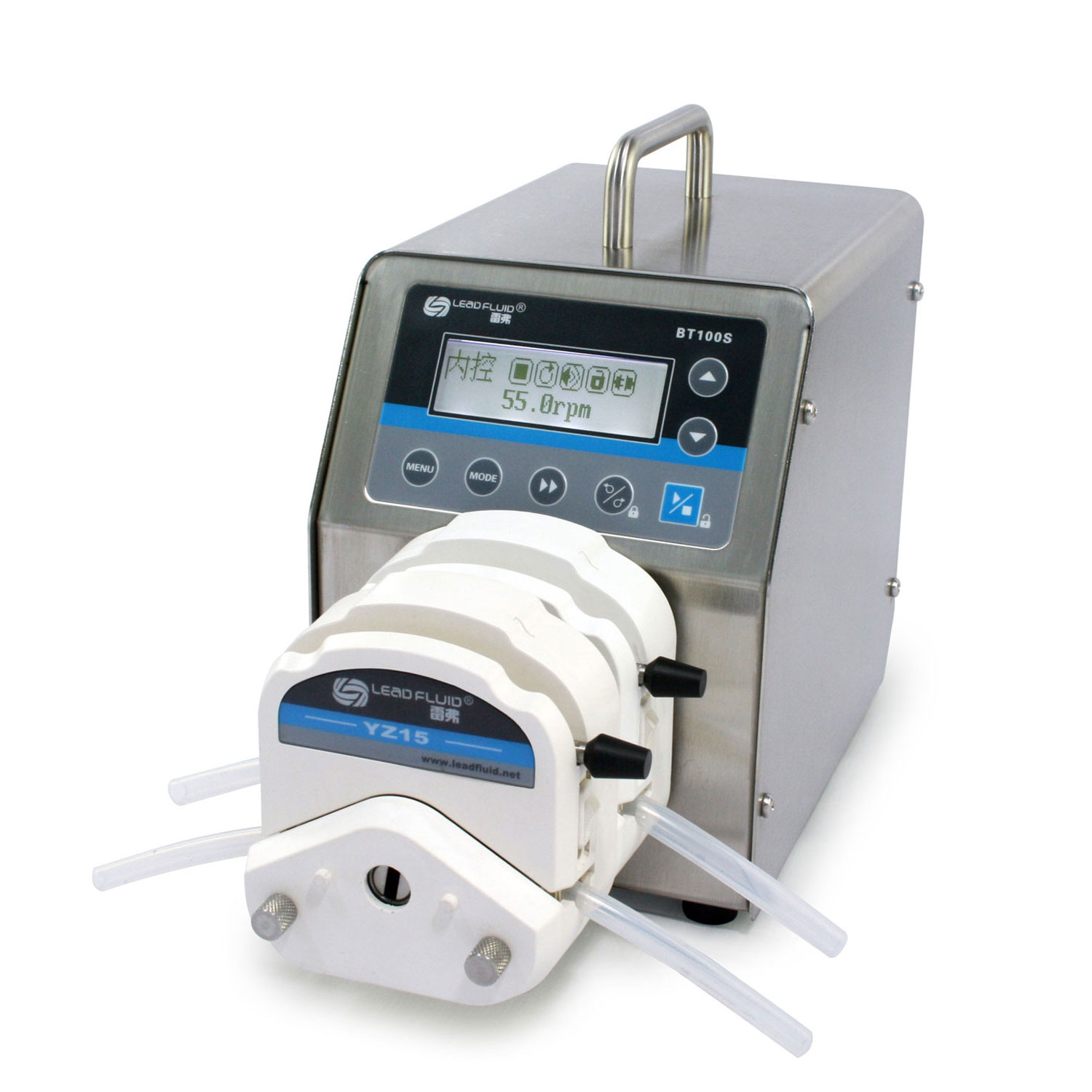

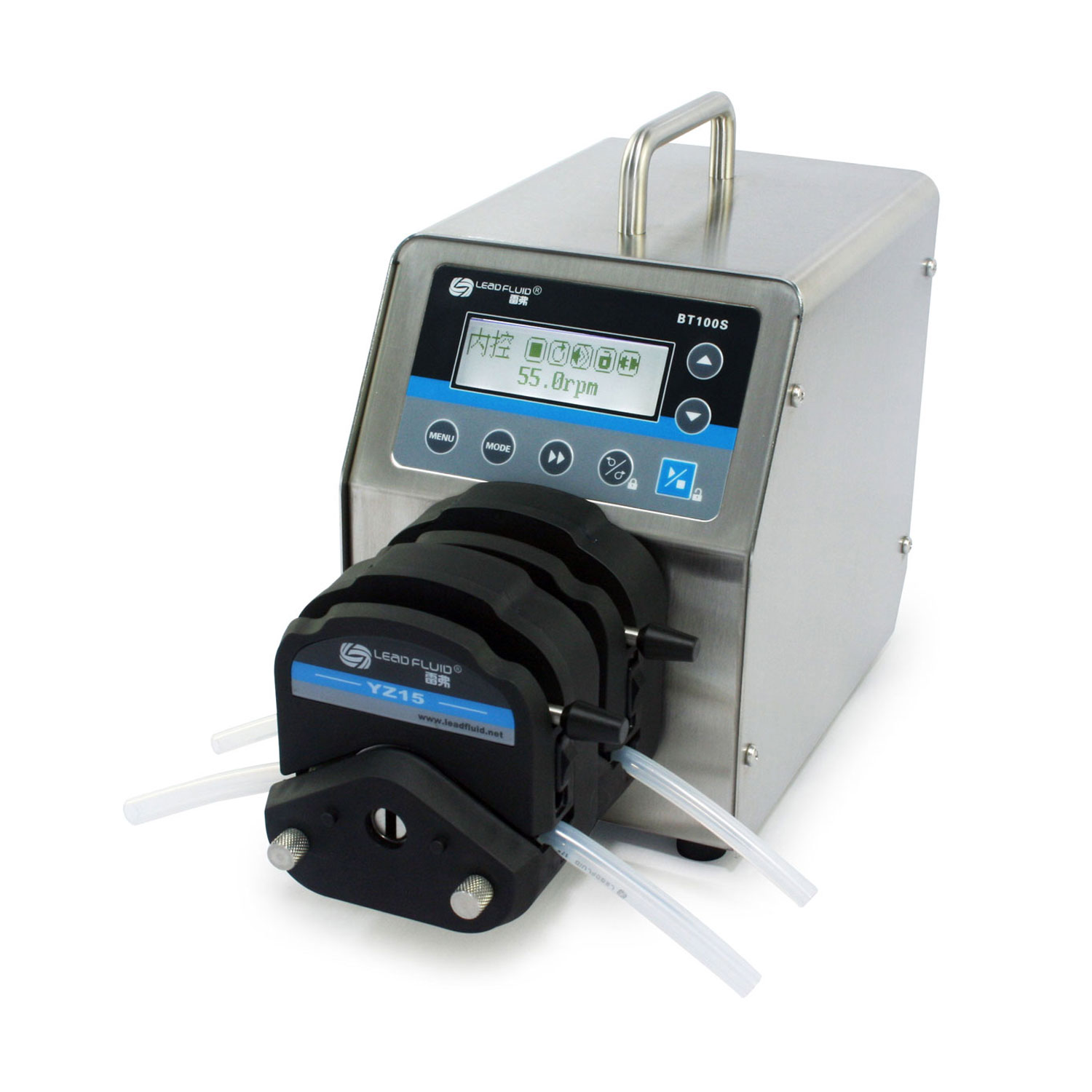

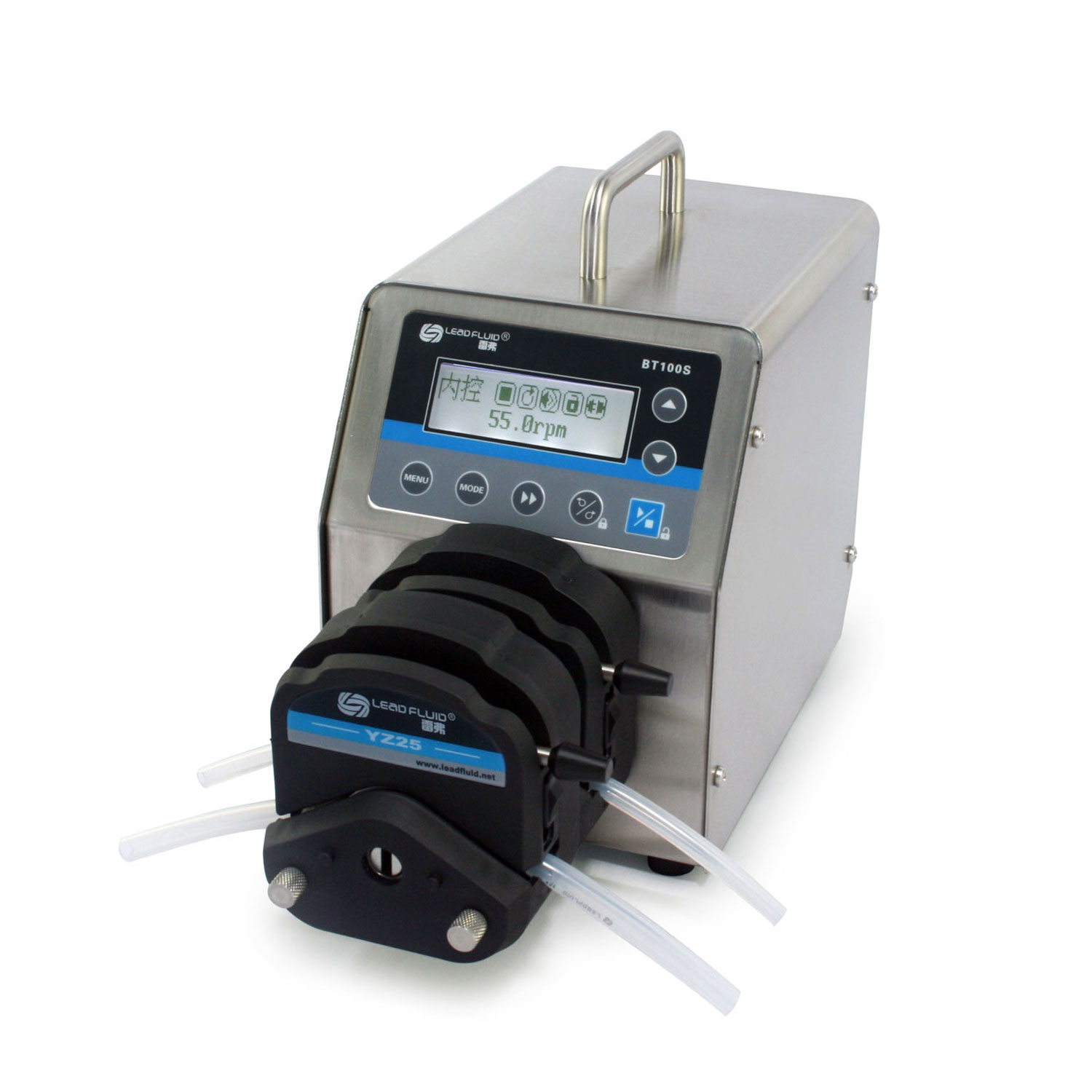

2 x YZ15213# 14# 16# 19# 25# 17#0.006-420
2 x YZ25215# 24#0.17-420

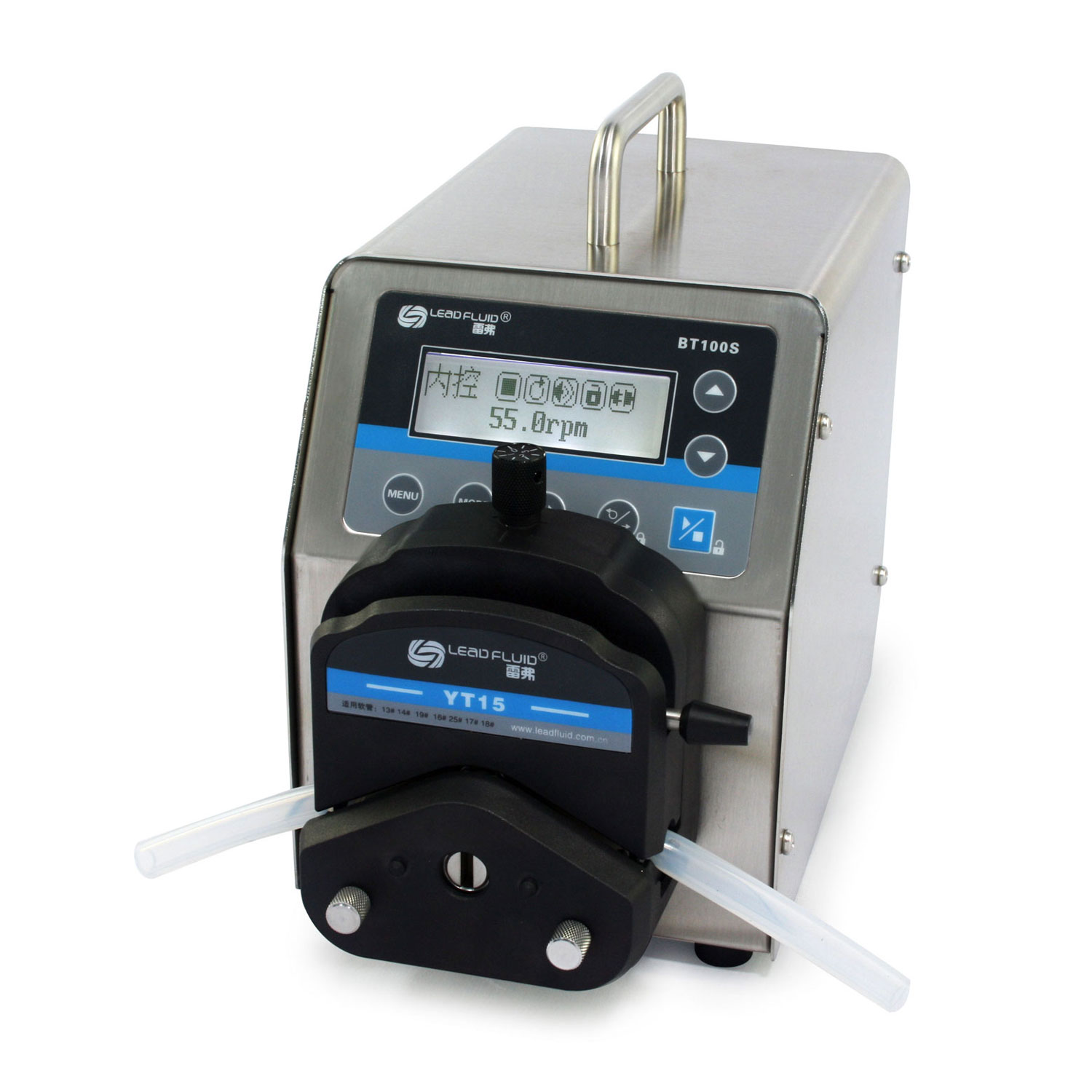

YT15113# 14# 16# 19# 25# 17# 18#0.006-570

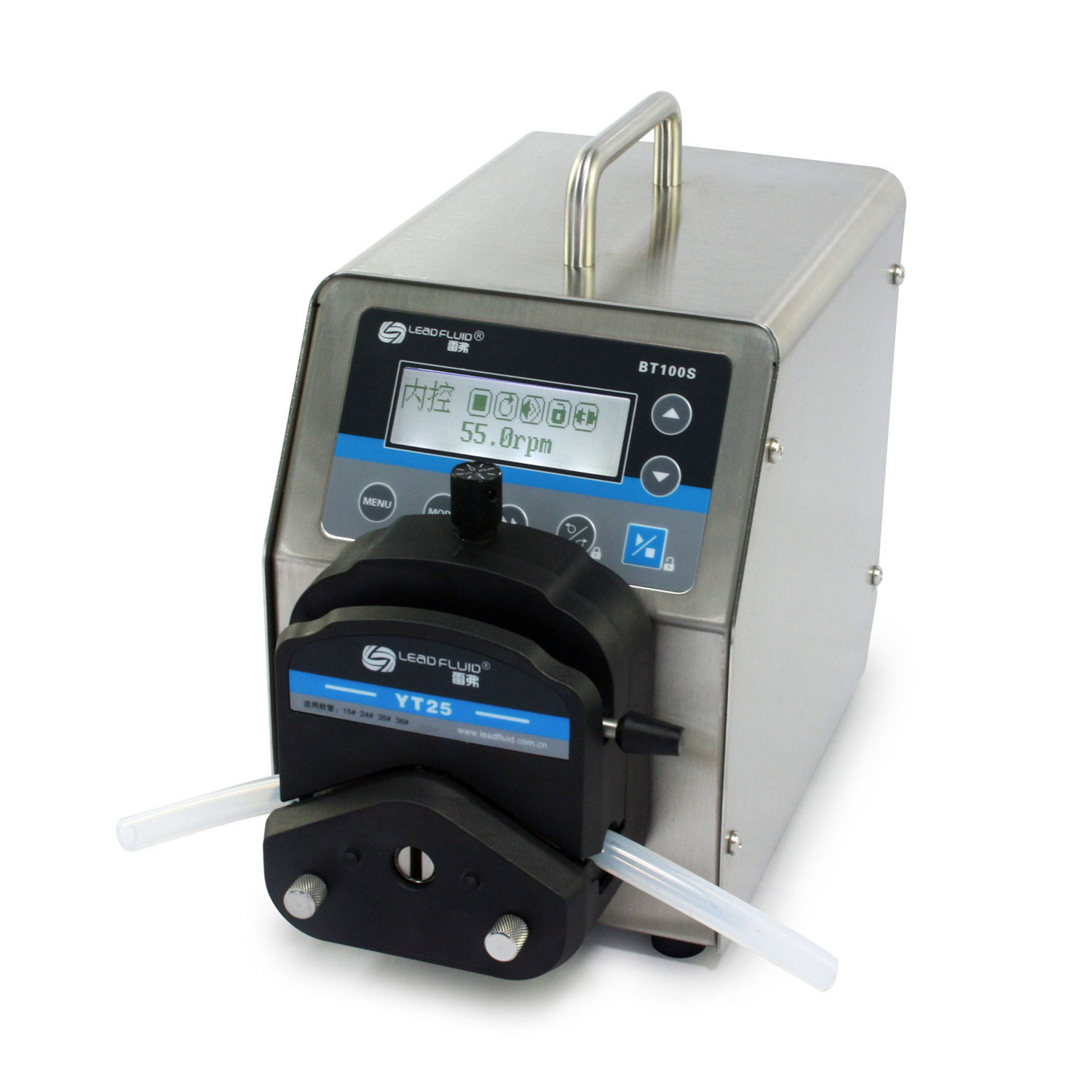

YT25115# 24# 35# 36#0.17-720

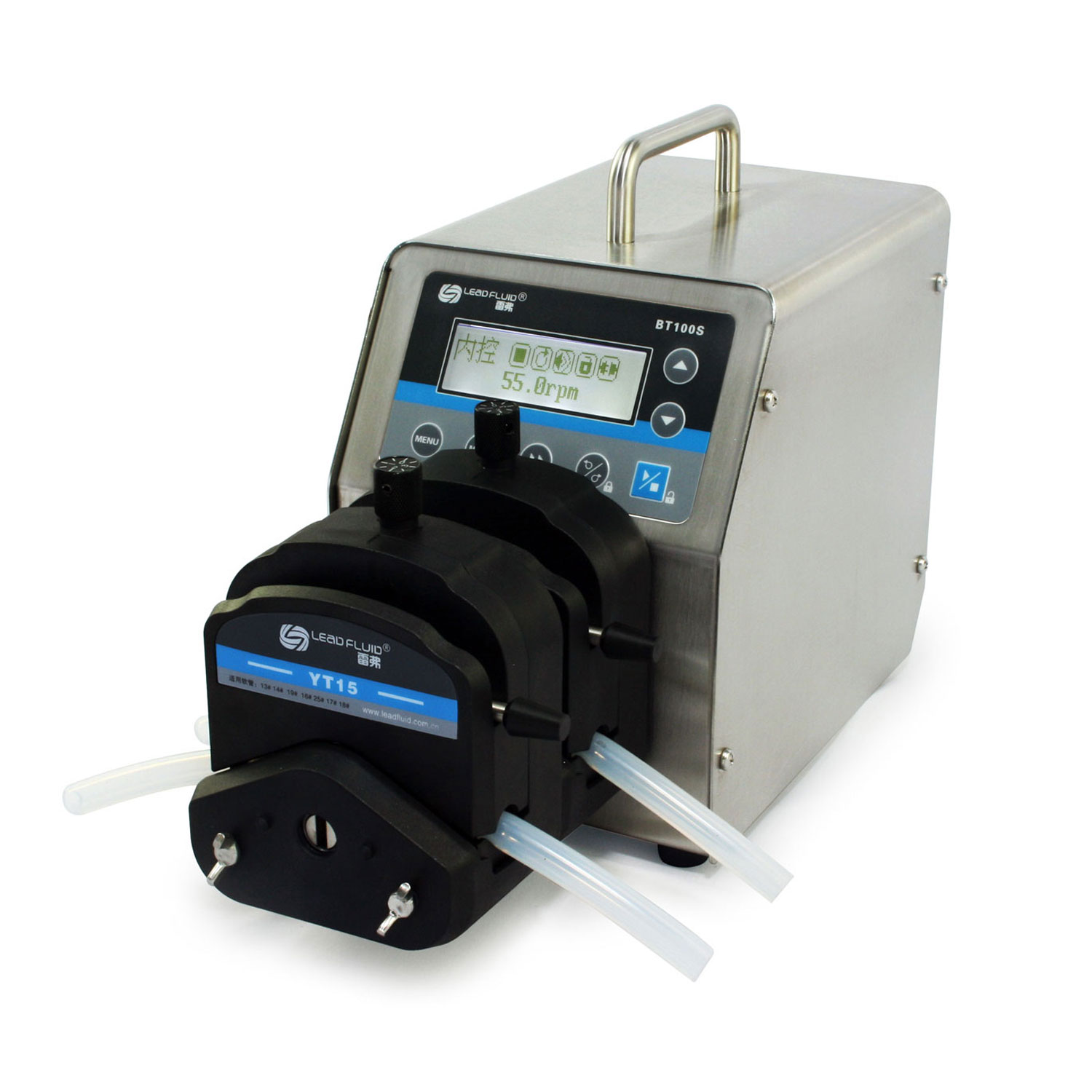

2 x YT15213# 14# 16# 19# 25# 17# 18#0.006-570

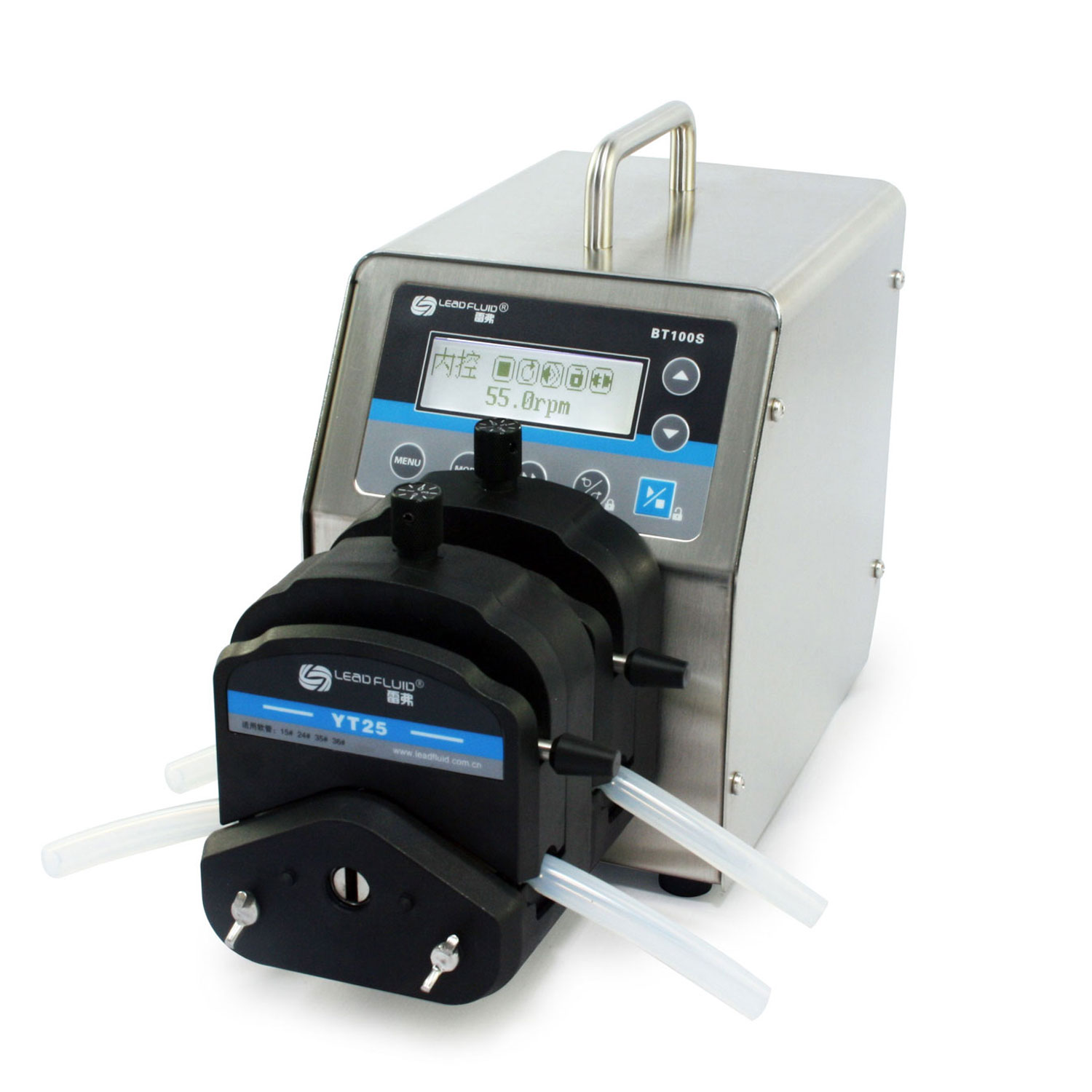

2 x YT25215# 24# 35# 36#0.006-720

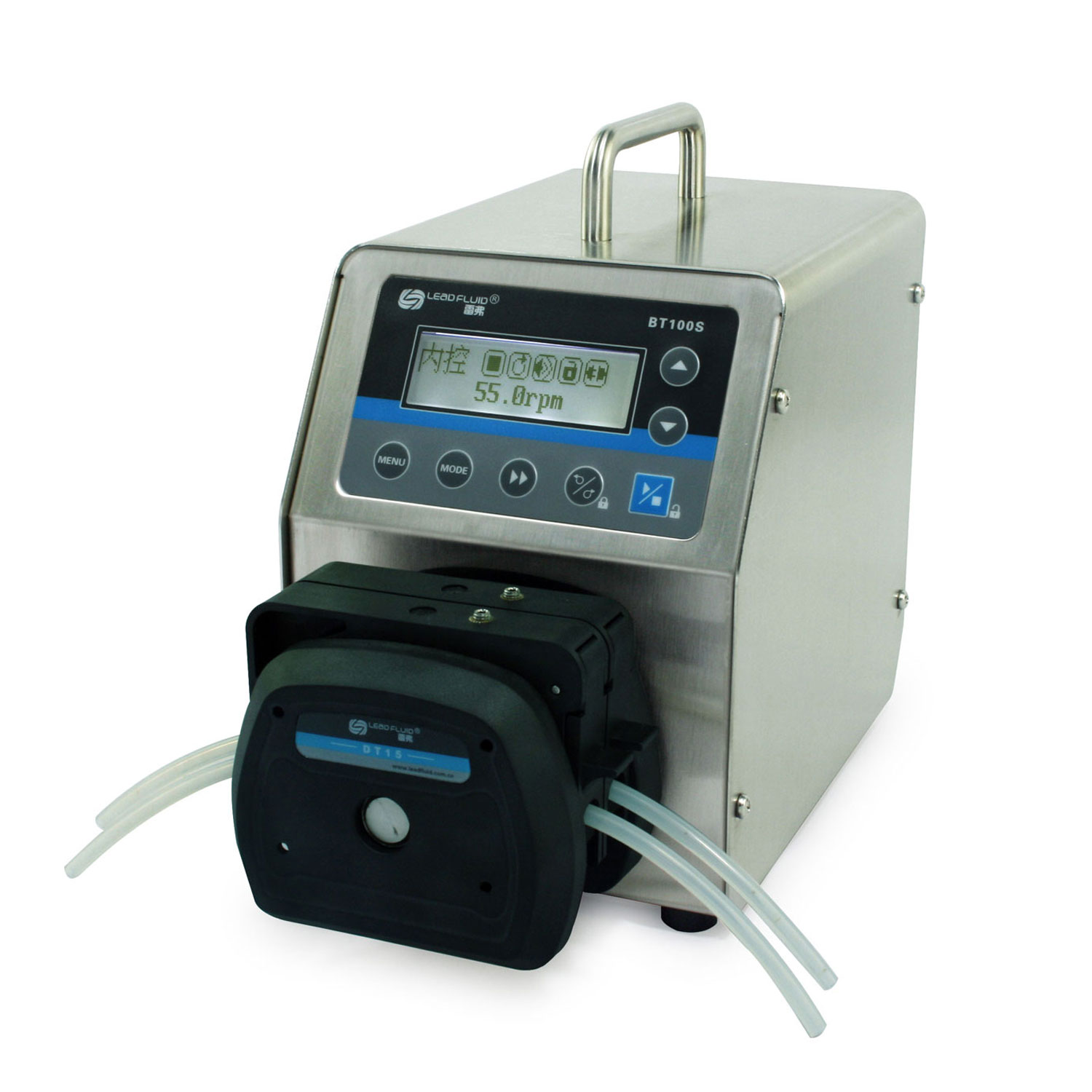

DT15-24219# 16# 25# 17#0.05-400

Additional Information

Weight15 lbs
Dimensions11 × 14 × 13 in
