WT600F-65 Intelligent Dispensing Peristaltic Pump

$2,245.00$2,550.00

WT600F-65 intelligent dispensing peristaltic pump has color LCD touch screen with intuitive interface. There are four operation modes available: volume dispensing mode for high accuracy dispensing; time dispensing mode for high productive efficiency; copy dispensing mode for separating fluid to number of equal parts; flow mode is the same as intelligent flow peristaltic pump. Brushless servo motor drive with large torque, no maintenance necessary. Intelligent temperature control technology reduces working noise. With MODBUS communication protocol RS485 interface, the pump is easy to be connected with external device, such as computer, human machine interface or PLC. Stainless steel housing is easy to clean, corrosion resistant.

Flow: 0.06-6000mL/min
Max: 2 Channels
SKU: WT600F-65 Category:

Functions and Features

  • Color LCD display, touch screen and keypad for operating.
  • For working modes: Flow mode, time dispensing mode; volume dispensing mode; copy dispensing mode.
  • Three dispensing modes store five groups of working parameters automatically.
  • Reversible direction, start/stop and full speed, state memory (power-off memory).
  • Displays and controls flow rate, accumulated dispensing volume automatically.
  • Flow rate calibration.
  • Brushless servo motor drive with large torque, no maintenance necessary, high rotating accuracy.
  • Easy dispensing function, it can repeat dispensing by volume or time, without a time controller.
  • Remote infrared control (optional).
  • Professional operating system for setting parameters correctly.
  • Intelligent temperature control technology reduces working noise.
  • External on/off voltage controls start/stop, reversible direction and easy dispensing function, optically coupled isolator; External analog adjusts rotating speed.
  • Anti-interference feature, wide input voltage range for complex power environment.
  • Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid, alkali, sodium and the organic solvents.
  • Can drive multi-channels and various types of pump heads.
  • With RS485 MODBUS interface, easy to be controlled by other devices.
  • Optional footswitch or timer for dispensing fluid.

Specifications

  • Flow range: 0.06-6000 mL/min
  • Speed range: 0.1-600 rpm
  • Speed resolution: 0.1 rpm
  • Flow accuracy: 0.5%
  • Power supply: AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz
  • Power consumption: < 100W
  • External on/off voltage control: 5V, 12V (standard), 24V (optional). External analog control: 0-5V (standard); 0-10V, 4-20mA (optional)
  • Communication interface: RS485 MODBUS interface
  • Operating condition: Temperature 0~40°C; Relative humidity < 80%
  • IP grade: IP65
  • Dimensions (L x W x H): 330 x 220 x 235 mm (13.0 x 8.7 x 9.3 inch)
  • Weight: 7.1kg (15.7 lbs)

WT600F-65 Applicable Pump Heads and Tubings, Flow Parameters

Drive type Pump head Channel Tubing size (mm) Flow rate (mL/min) per channel
WT600F-65

YZ15

1

13# 14# 16# 19# 25# 17#

0.06-1700

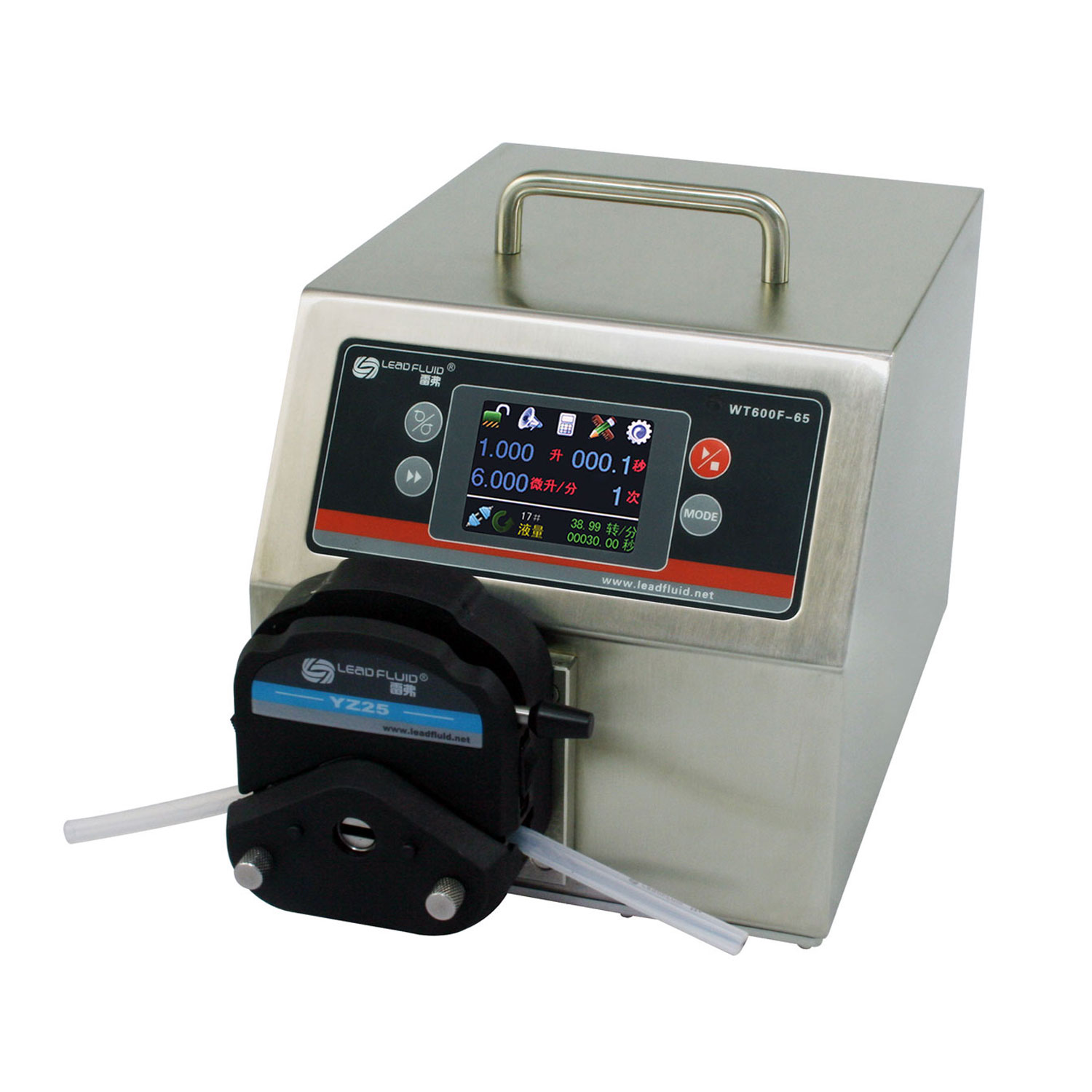

YZ25

1

15# 24#

1.7-1700

2 x YZ15

2

13# 14# 16# 19# 25# 17#

0.06-1700

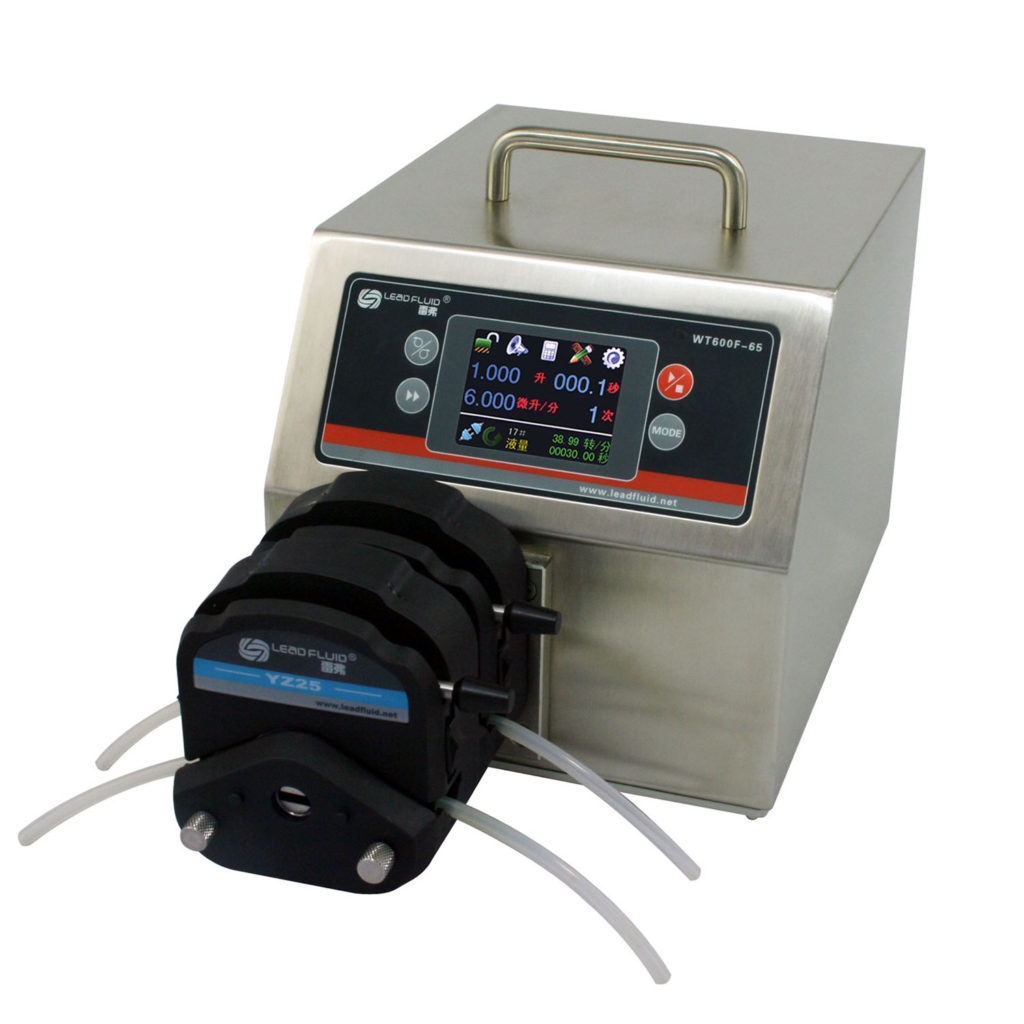

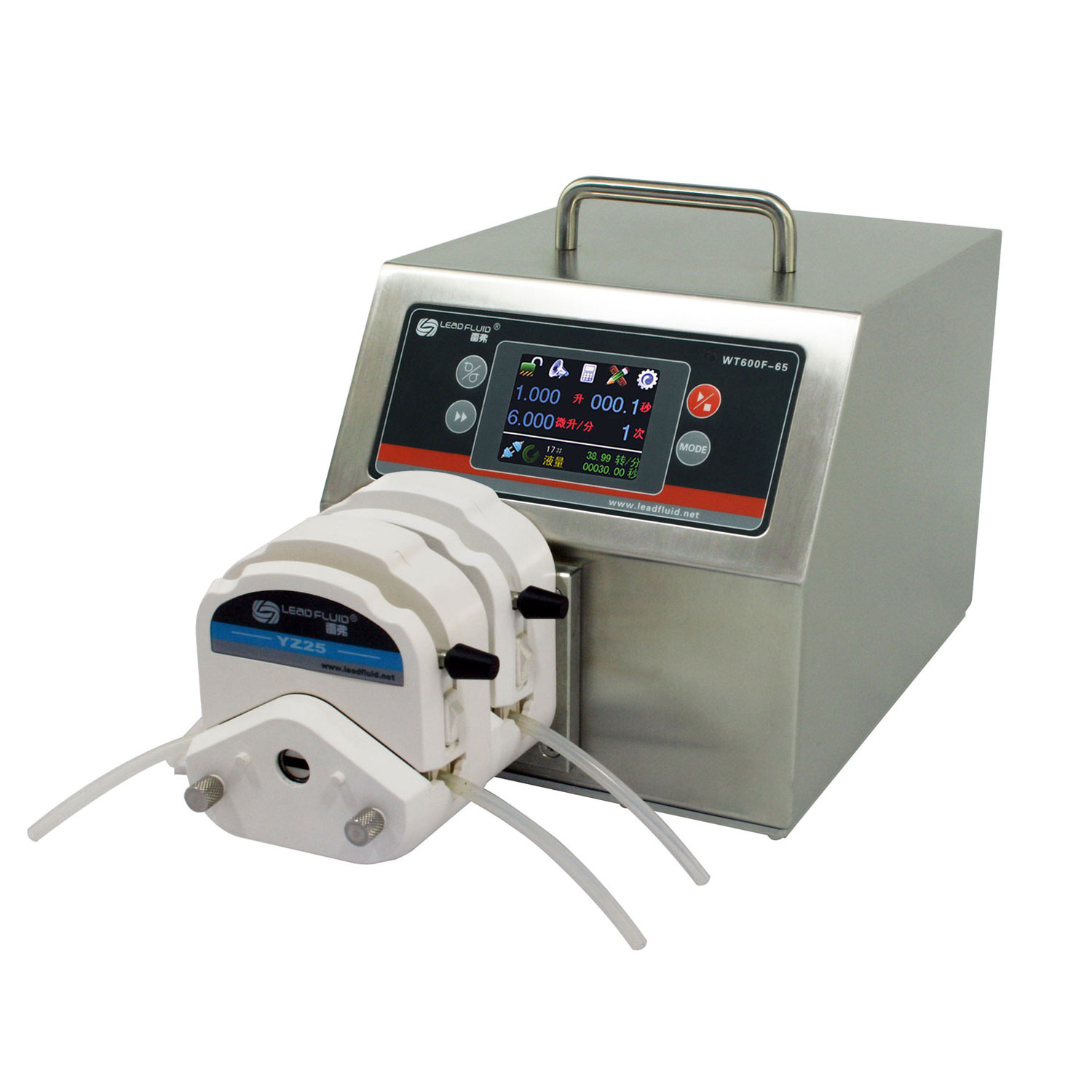

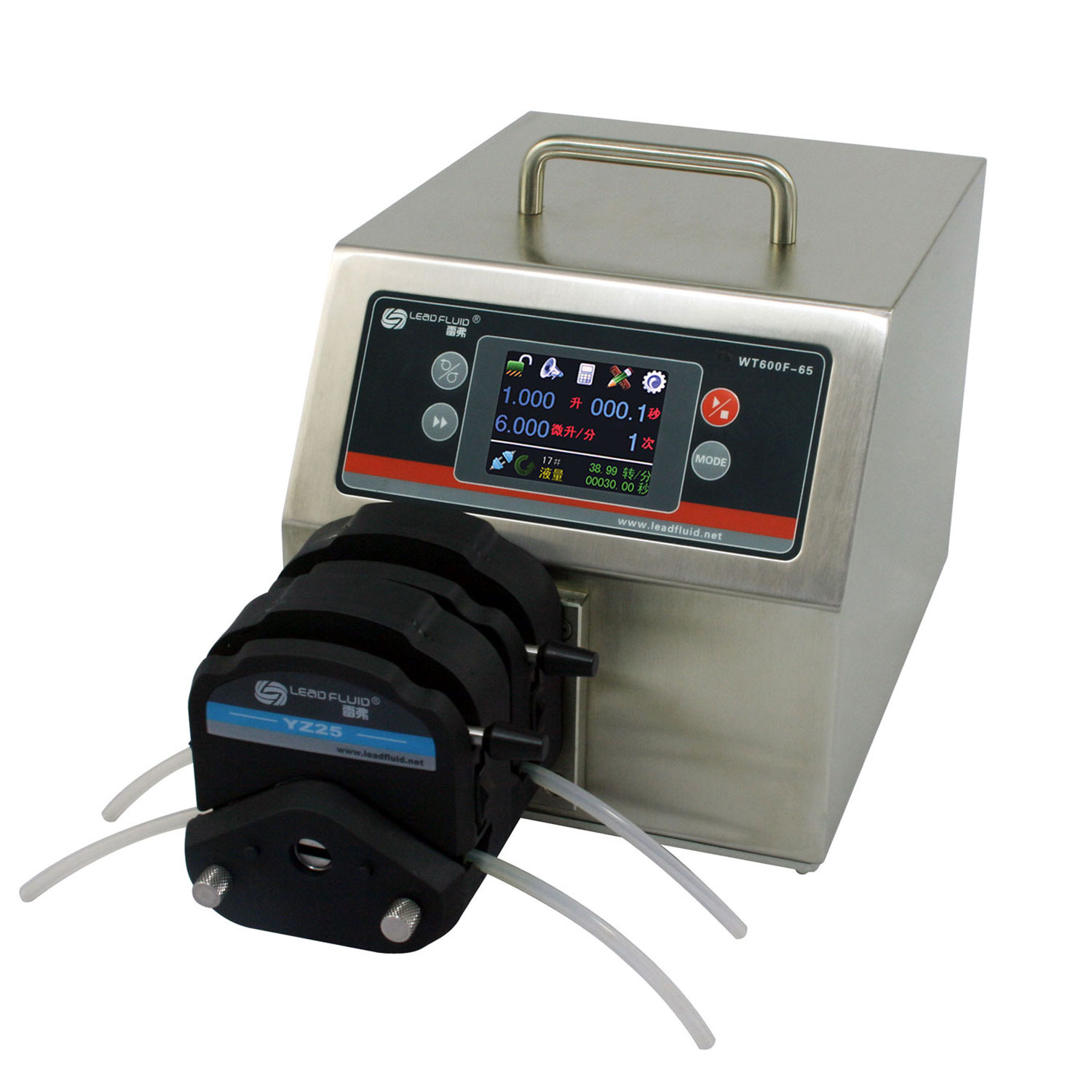

2 x YZ25

2

15# 24#

1.7-1700

YT15

1

13# 14# 16# 19# 25# 17# 18#

0.06-2300

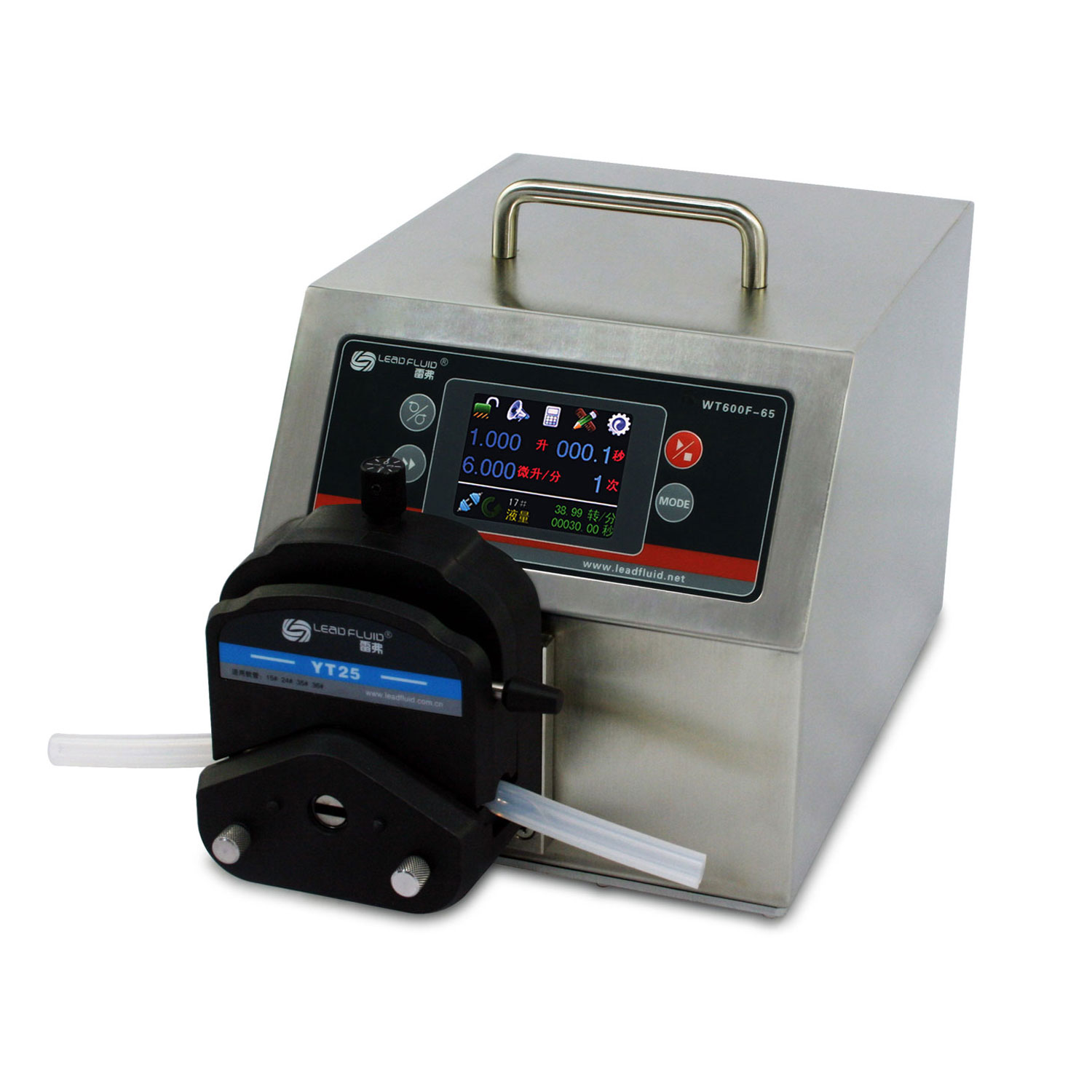

YT25

1

15# 24# 35# 36#

1.7-2900

2 x YT15

2

13# 14# 16# 19# 25# 17# 18#

0.06-2300

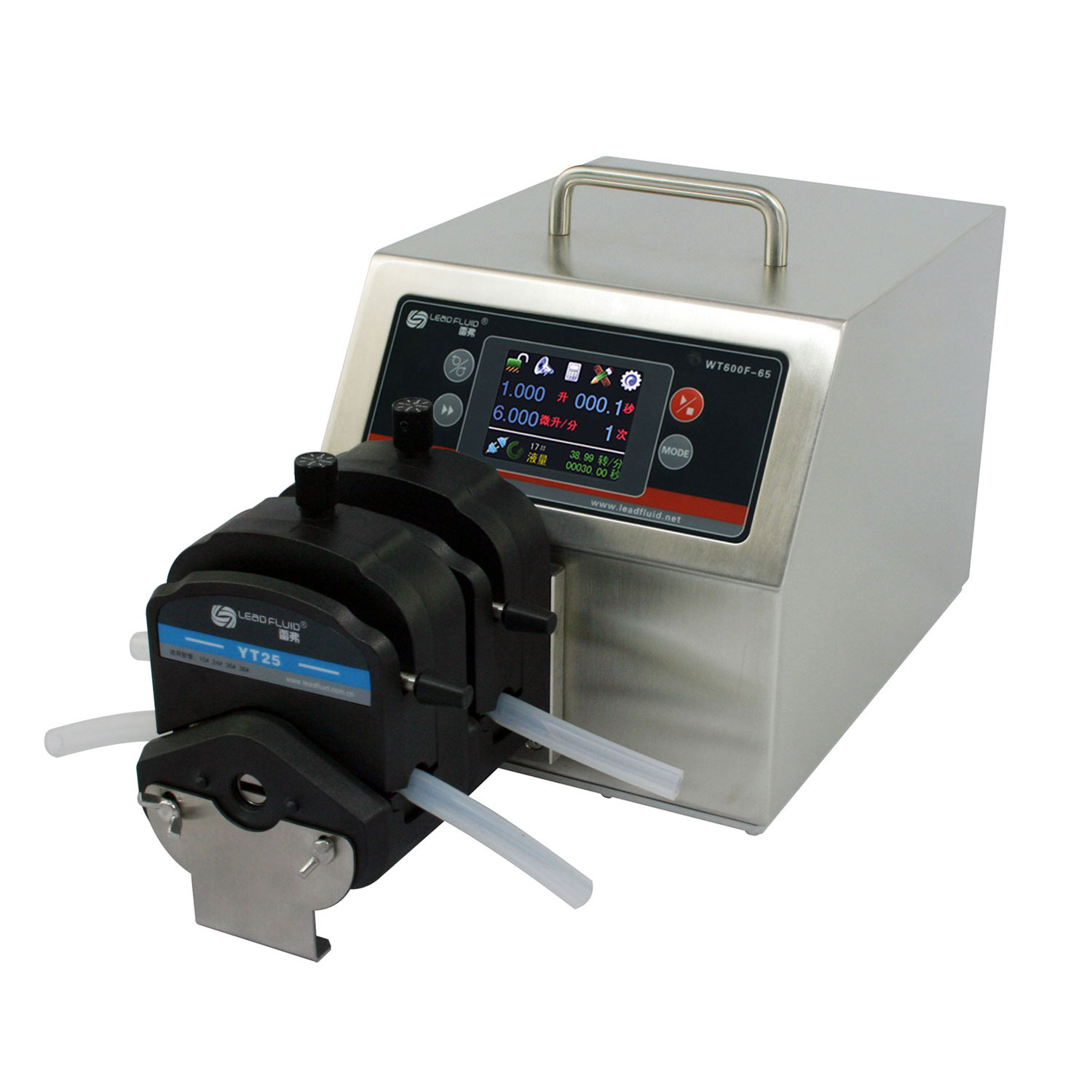

2 x YT25

2

15# 24# 35# 36#

1.7-2900

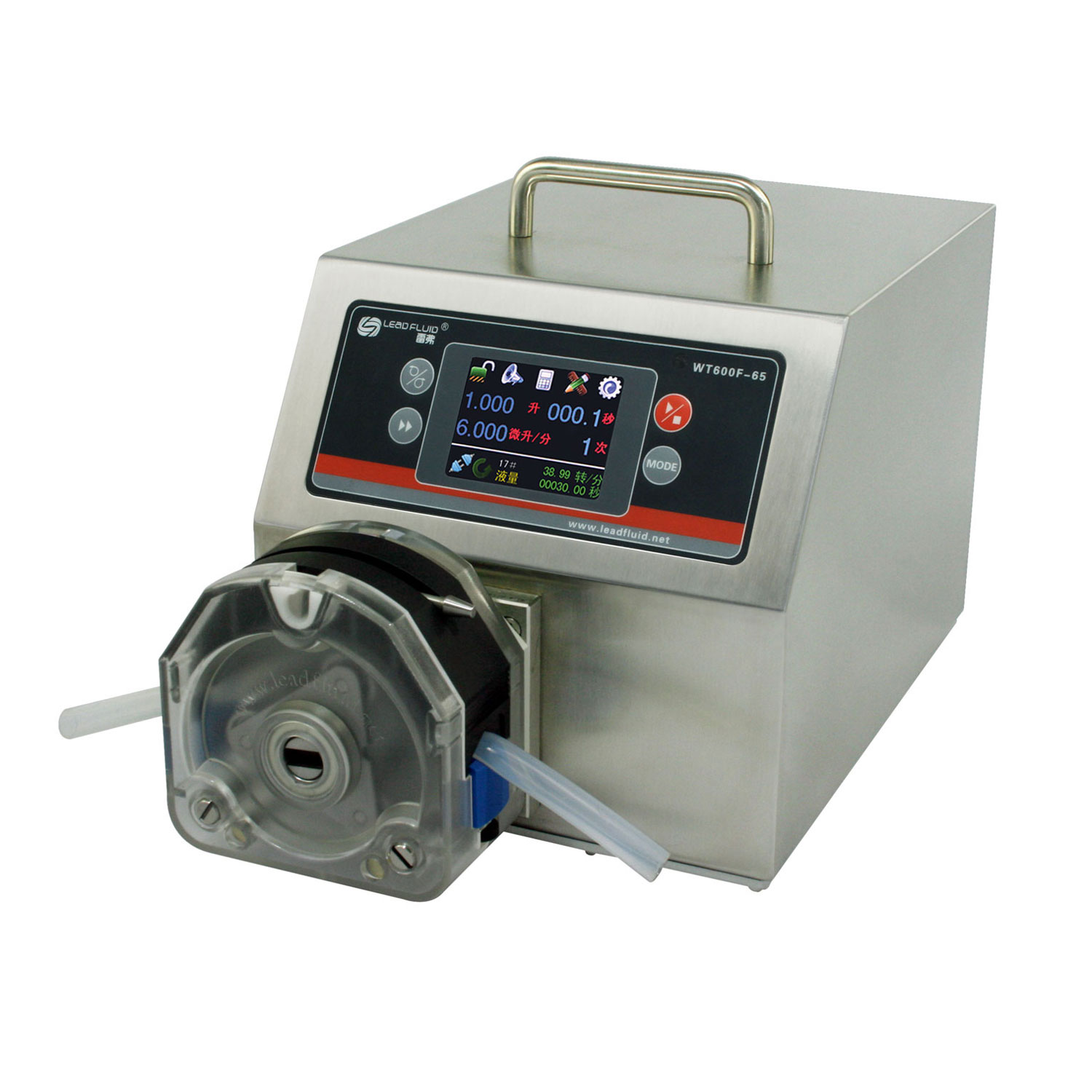

KZ25

1

15# 24# 35# 36#

2.5-6000



Additional Information

Weight 30 lbs
Dimensions 11 × 12 × 17 in
