Functions and Features
- Color LCD display, touch screen and keypad for operating.
- Reversible direction, start/stop control and adjustable speed.
- Precise motor control technology improves dispense accuracy compared to the traditional time dispense mode.
- Anti-drip function ensures dispense accuracy.
- Three dispense mode available. Time Dispense Mode: automatically dispense by setting the duration for each dose, lag time between doses and number of cycles. Volume Dispense Mode: automatically dispense by setting the volume for each dose, lag time between doses and number of cycles. Copy Dispense Mode: automatically dispense by setting the total volume need to dispense, lag time between doses and number of cycles.
- Store five groups of working parameters for each dispense mode (power-off memory).
- Flow rate display and control; cumulative dispense volume display.
- Flow rate calibration.
- 0.2% high precision rotating speed control with 0.1 rpm speed resolution. Professional operating system, configure system with setup wizard.
- Intelligent temperature control to minimize working noise.
- Logic level signal can control start/stop, direction and easy dispense functions; external analog signal can adjust the rotating speed. Signal is optically isolated.
- With RS485 MODBUS interface, easy to communicated with external device.
- Internal double-deck isolation structure; circuit board with conformal coating makes it dust-proof and moisture proof.
- Anti-electromagnetic interference feature, wide input voltage range for complex power environment.
- ABS plastic housing, streamlined shape.
- Drive multi-channels and various types of pump heads.
- Optional footswitch and remote infrared control.
Specifications
- Flow range: 0.00011-720 mL/min
- Speed range: 0.1-150 rpm
- Speed resolution: 0.1 rpm
- Speed accuracy: 0.2%
- Power supply: AC220V ± 10% 50Hz/60Hz(standard ) ; AC110 ± 10% 50 Hz/60Hz (optional)
- Power consumption: < 30W
- Logic level control signal: 5V, 12V (standard), 24V (optional)
- External analog control signal: 0-5V (standard), 0-10v, 4-20mA (optional)
- Communication interface: RS485 MODBUS
- Operating condition: Temperature 0-40°C; Relative humidity < 80%
- IP grade: IP31
- Dimensions (L x W x H): 257 x 182 x 198mm (10.12 x 7.17 x 7.79 inch)
- Weight: 4.8 kg (10.6 lbs)
BT101F Suitable Pump Heads and Tubing, Flow Parameters
| Drive type | Pump heads | Ch | Tubing size (mm) | Flow rate per channel (mL/min) |
| BT101F (ABS plastic case) |
DG6-1 (6rollers) | 1 | Wall:0.8~1, ID:≤2.4 | 0.00016-26 |
| DG10-1 (10rollers) | 1 | Wall:0.8~1, ID:≤2.4 | 0.00011-20 | |

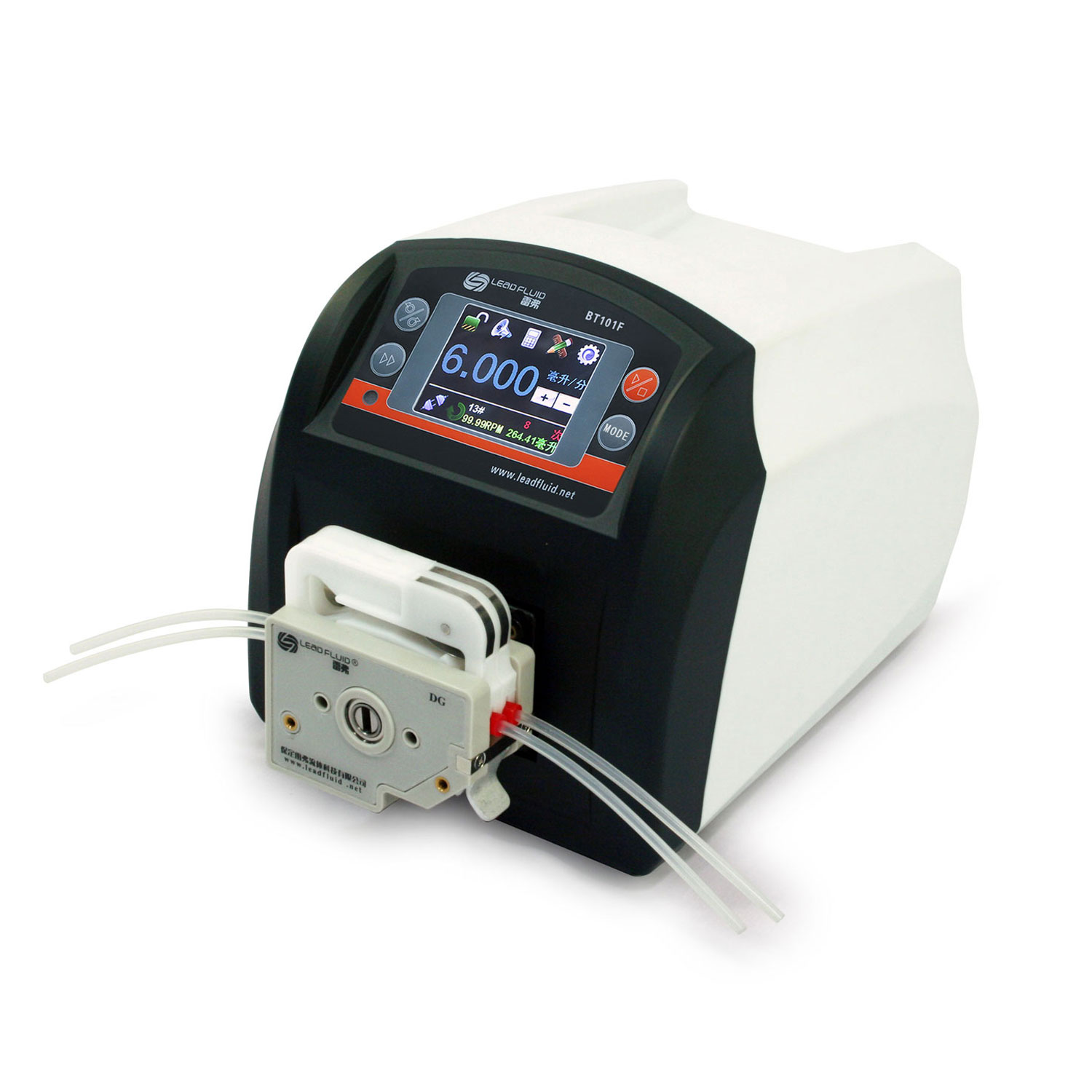

| DG6-2 (6rollers) | 2 | Wall:0.8~1, ID:≤2.4 | 0.00016-26 | |
| DG10-2 (10rollers) | 2 | Wall:0.8~1, ID:≤2.4 | 0.00011-20 | |
| DG6-4 (6rollers) | 4 | Wall:0.8~1, ID:≤2.4 | 0.00016-26 | |
| DG10-4 (10rollers) | 4 | Wall:0.8~1, ID:≤2.4 | 0.00011-20 | |
| DT10-18 | 1 | 13# 14#, Wall:0.8~1, ID:≤3.17 | 0.0002-82 | |

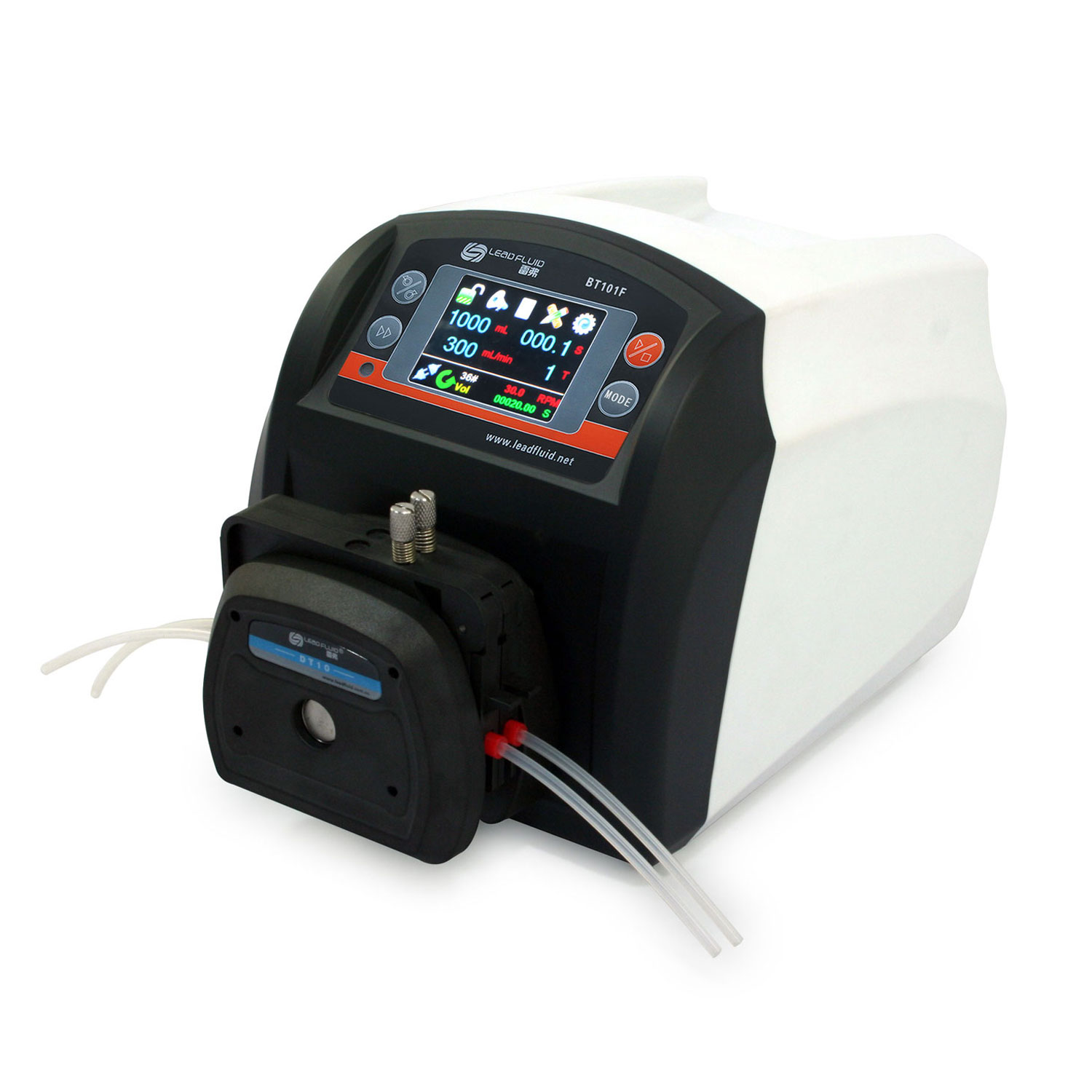

| DT10-28 | 2 | 13# 14#, Wall:0.8~1, ID:≤3.17 | 0.0002-82 | |

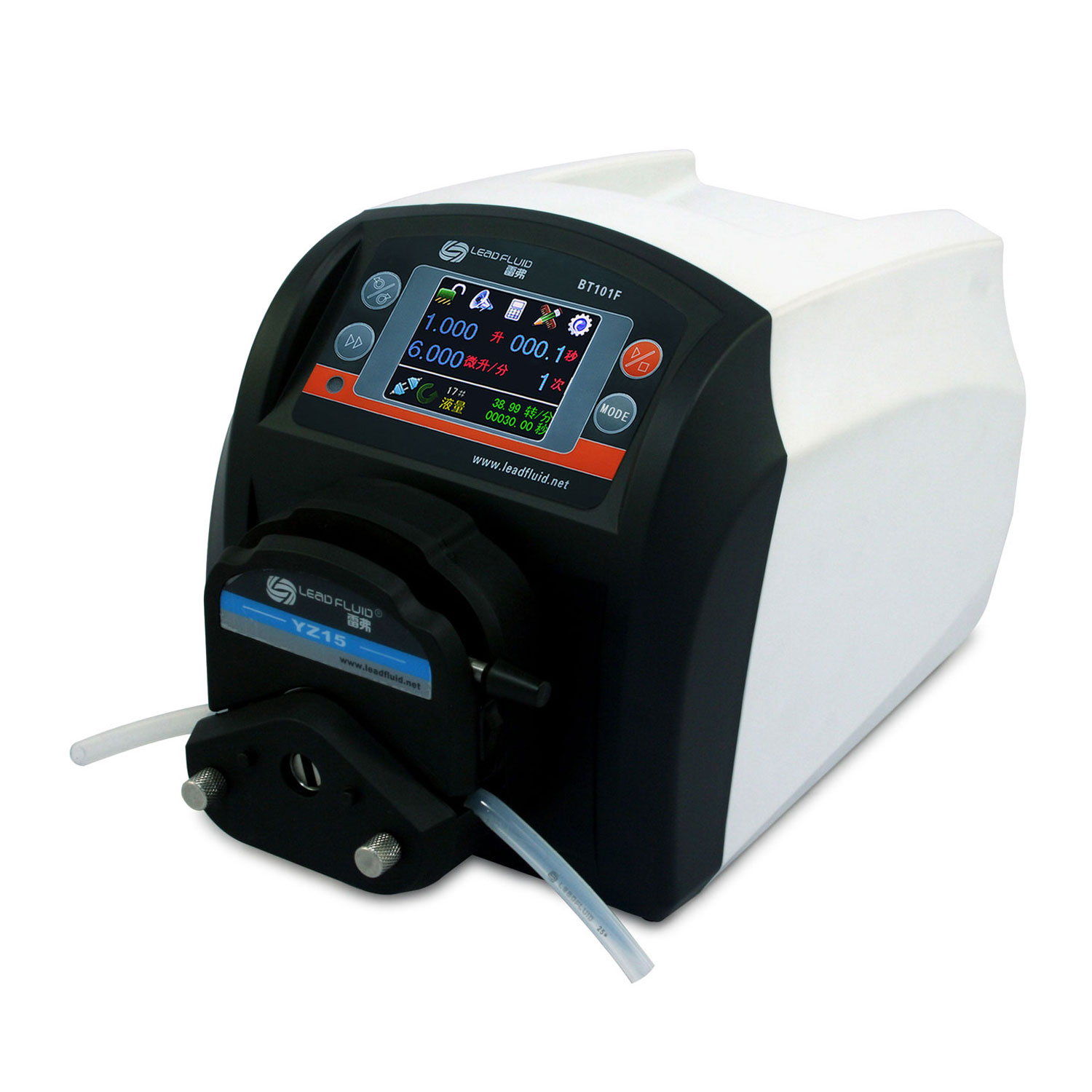

| YZ15 | 1 | 13# 14# 16# 19# 25# 17# | 0.006-420 | |
| YZ25 | 1 | 15# 24# | 0.16-420 | |
| YT15 | 1 | 13# 14# 16# 19# 25# 17# 18# | 0.006-570 | |
| YT25 | 1 | 15# 24# 35# 36# | 0.17-720 |
