Functions and Features
- Color LCD displaying, touch screen and keypad.
- Reversible direction, start/stop and adjustable speed.
- Flow rate calibration.
- Flow rate display and control; Cumulative dispense volume display.
- Anti-drip function ensures dispense accuracy.
- 0.2% high precision rotating speed control with 0.1 rpm speed resolution.
- Precise motor control technology improves dispense accuracy compared to the traditional time dispense mode.
- Professional operating system, configure system with setup wizard.
- Intelligent temperature control to minimize working noise.
- External logic level signal can control start/stop, direction and easy dispense function; external analog signal can adjust the rotating speed. Control signal is optically isolated.
- With RS485 MODBUS interface, easy to communicate with external device.
- Internal double-layer isolation structure, circuit board with conformal coating makes the pump dust-proof and moisture proof.
- Anti-electromagnetic interference feature, wide input voltage range for complex power environment.
- Stainless steel enclosure, easy to clean, resistant to the corrosion of the acid, alkali, sodium and organic solvents.
- Drive multi-channels and various types of pump heads.
- Optional footswitch and remote infrared control.
Specifications
- Flow range: 0.006-2900 mL/min
- Speed range: 0.1-600 rpm
- Speed resolution: 0.1 rpm
- Speed accuracy: 0.2%
- Power supply: AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz
- Power consumption: <60W
- External logic level control signal: 5V, 12V (standard), 24V (optional)
- External analog control signal: 0-5V (standard), 0-10v, 4-20mA (optional)
- Communication interface: RS485 MODBUS
- Operating condition: Temperature 0~40°C; Relative humidity <80%
- IP rating: IP31
- Dimensions (L x W x H): 226 x 150 x 238 mm (8.90 x 5.91 x 9.37 inch)
- Weight: 5.2kg (11.5 lbs)
BT600F Suitable Pump Heads and Tubing, Flow Parameters
Drive type | Pump head | Ch | Tubing size |
Flow rate per channel (mL/min) |
BT600F
(304SS) |

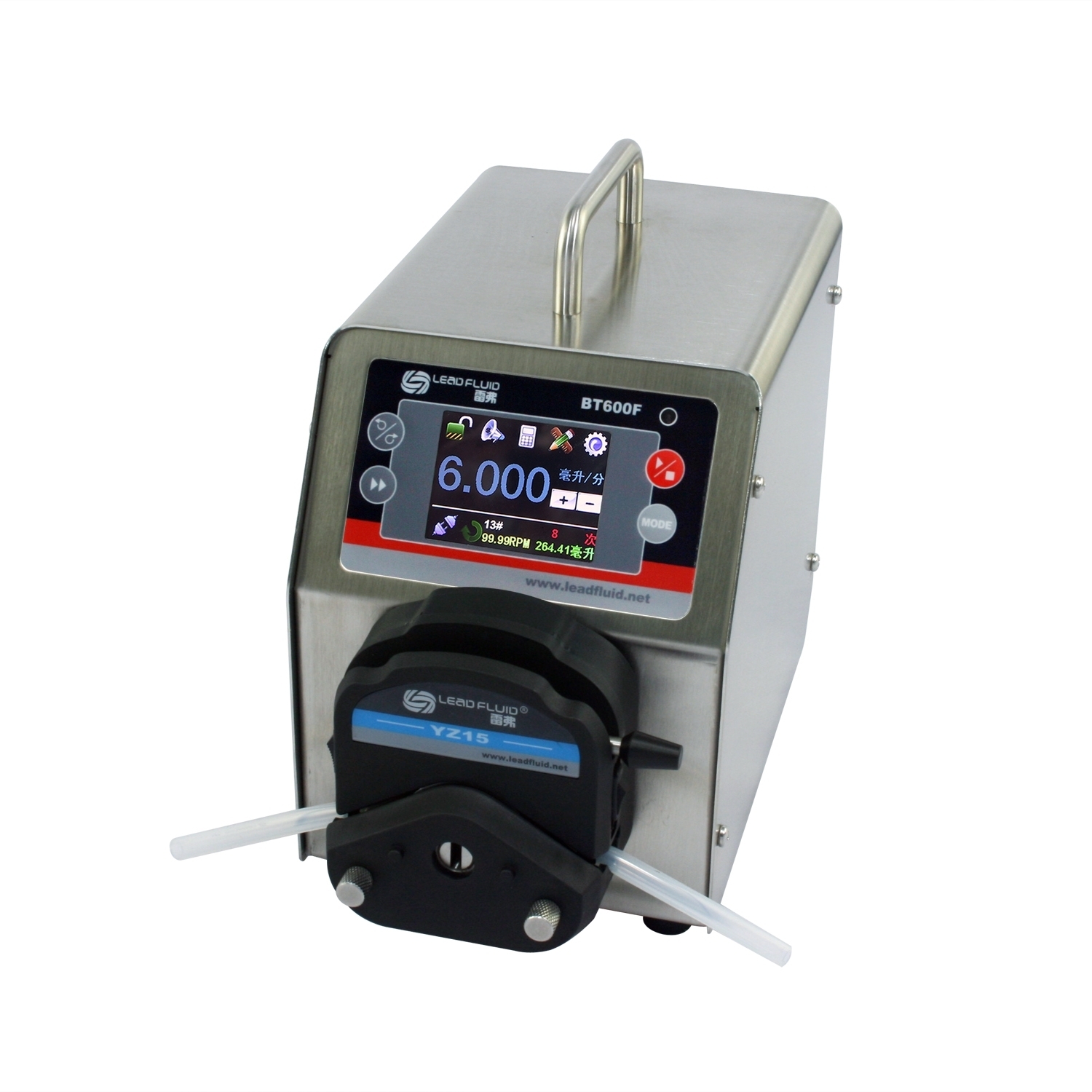

YZ15 |
1 |
13# 14# 16# 19# 25# 17# 18# |
0.006-1700 |

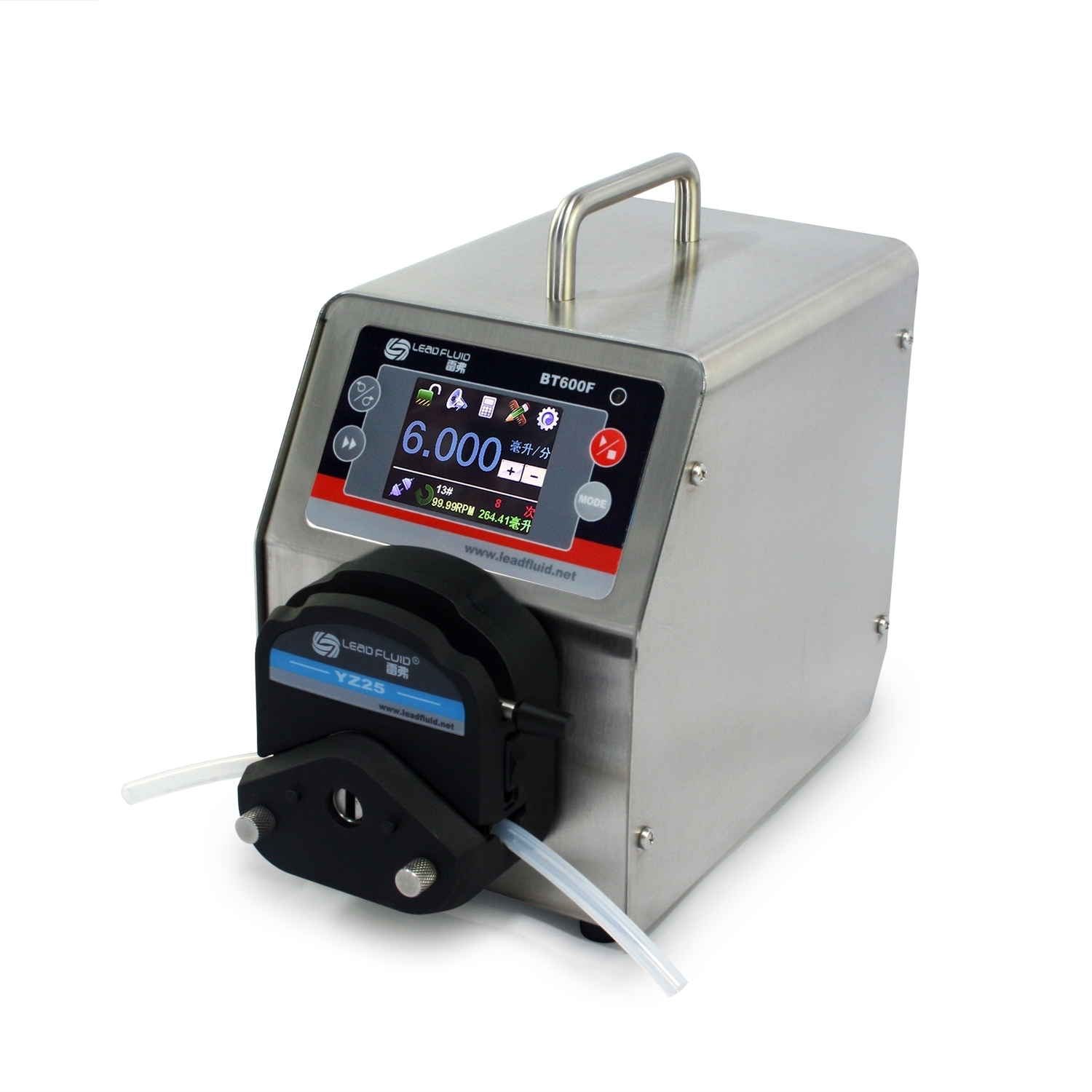

YZ25 |
1 |
15# 24# |
0.16-1700 |
|

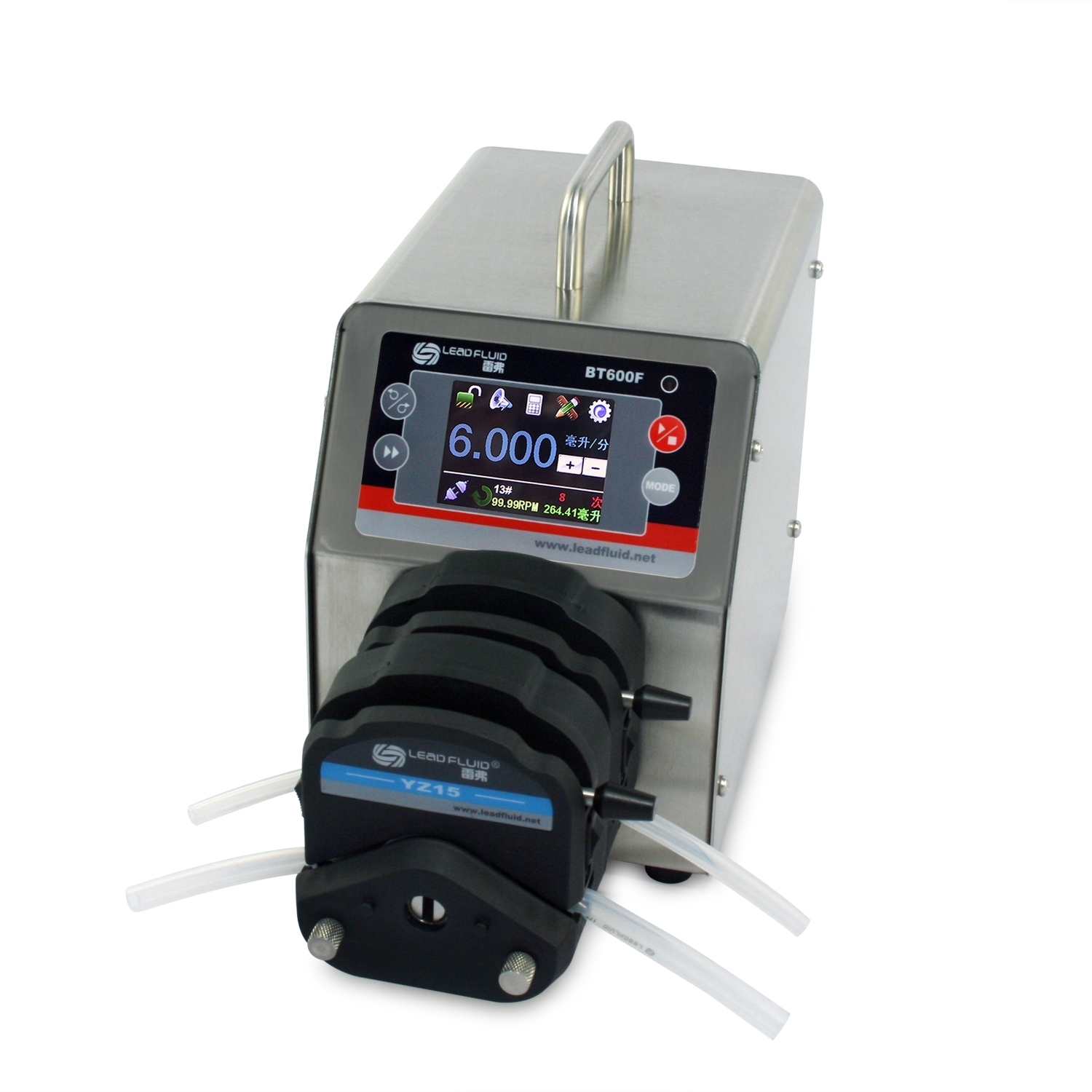

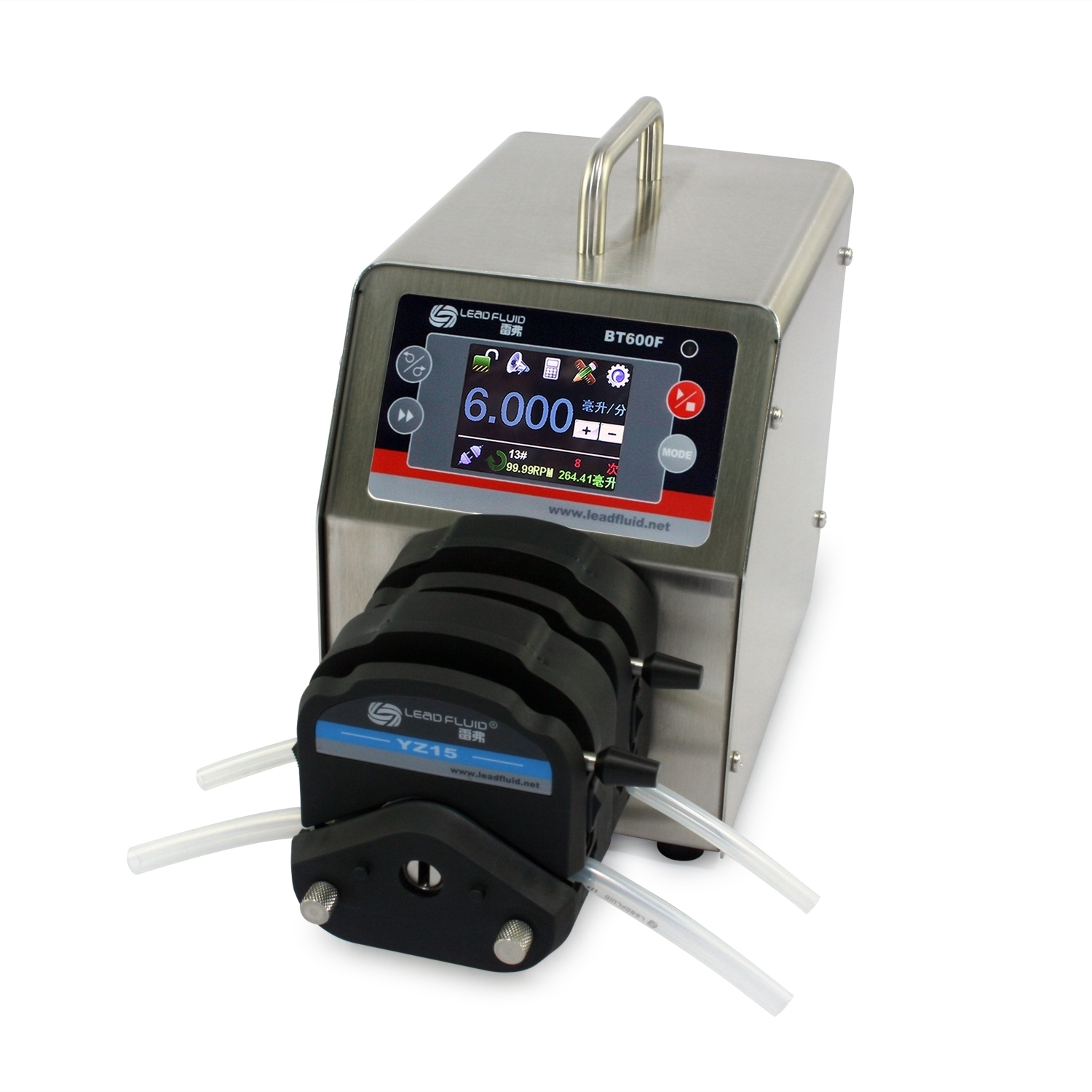

2 x YZ15 |
2 |
13# 14# 16# 19# 25# 17# 18# |
0.006-1700 |
|

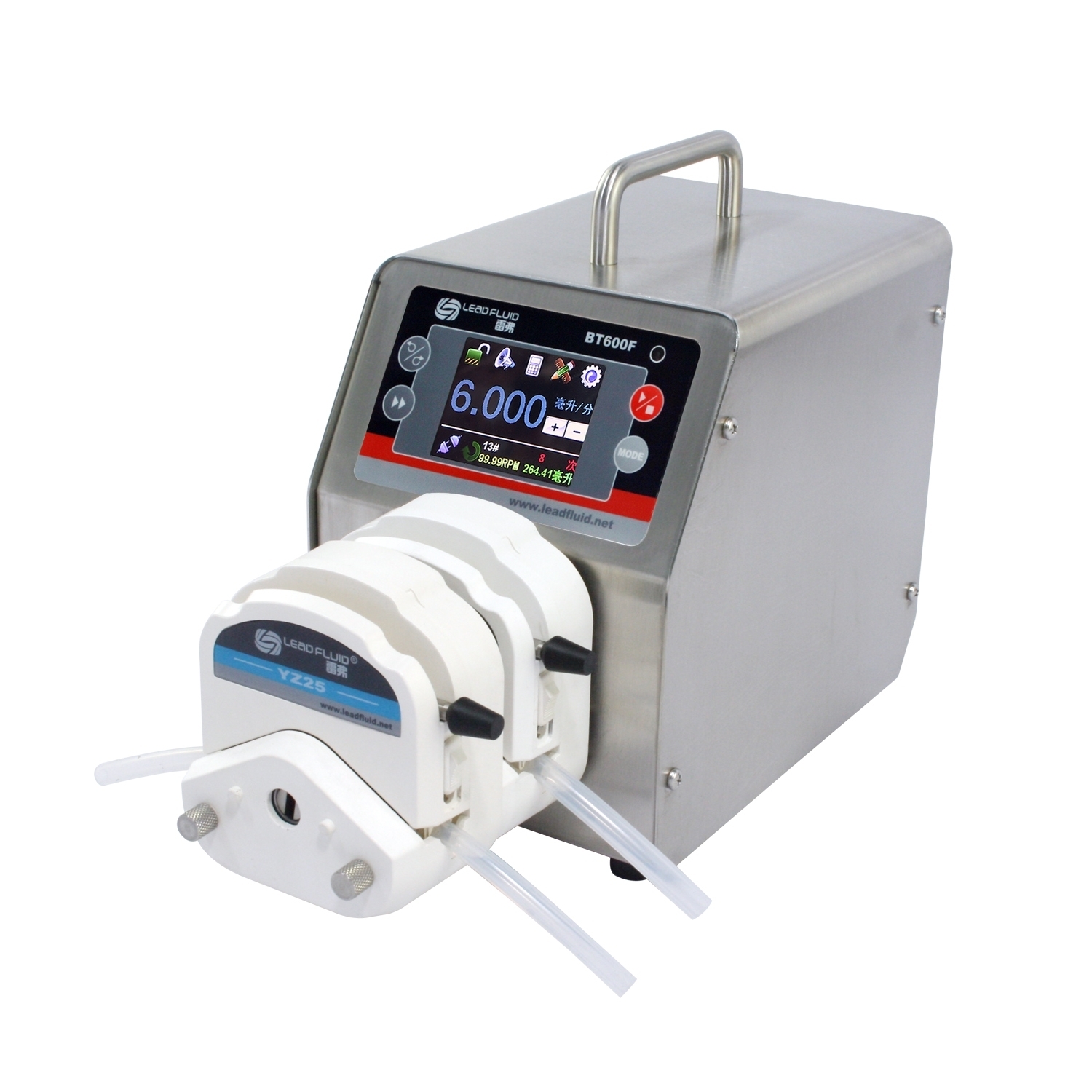

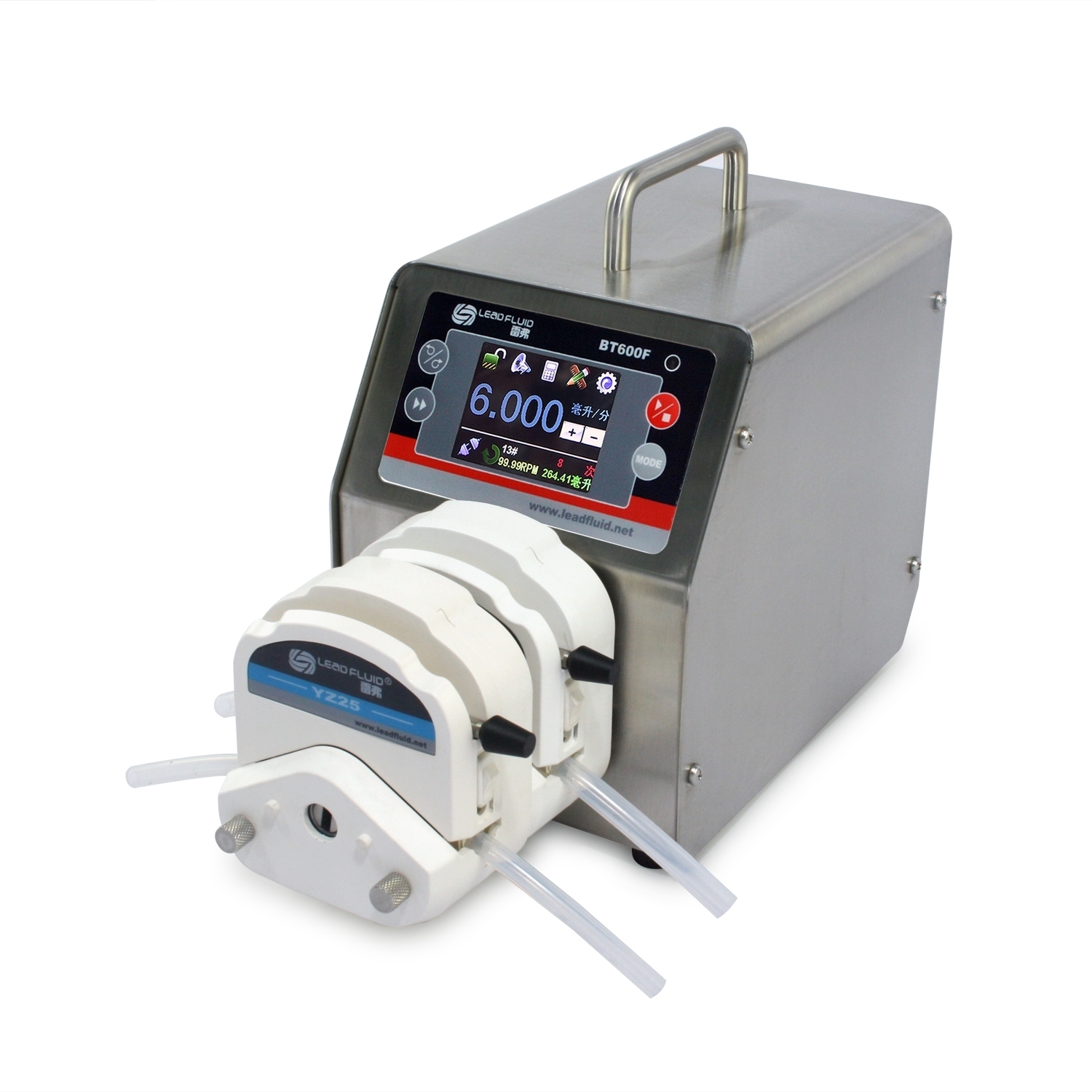

2 x YZ25 |
2 |
15# 24# |
0.16-1700 |
|

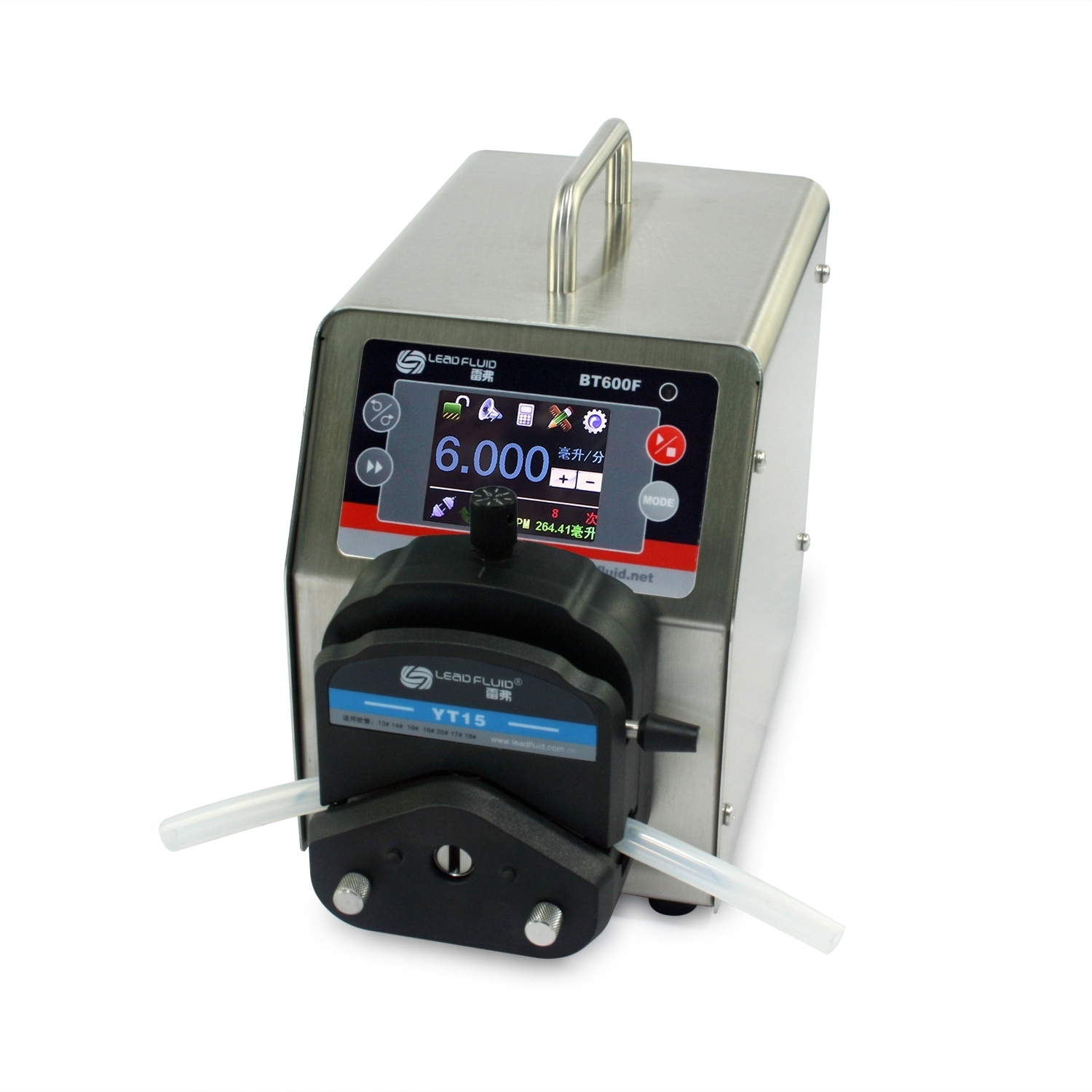

YT15 |
1 |
13# 14# 16# 19# 25# 17# 18# |
0.006-2300 |
|

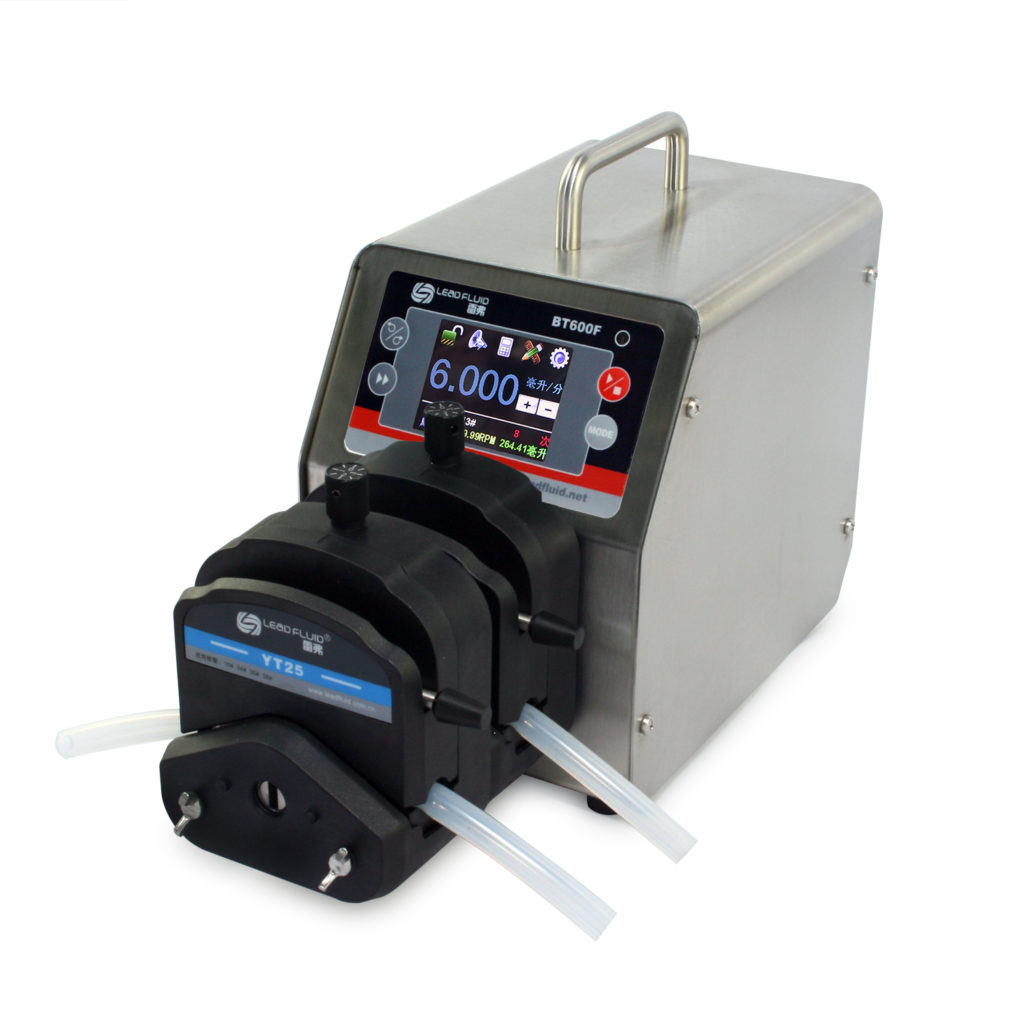

YT25 |
1 |
15# 24# 35# 36# |
0.16-2900 |
|

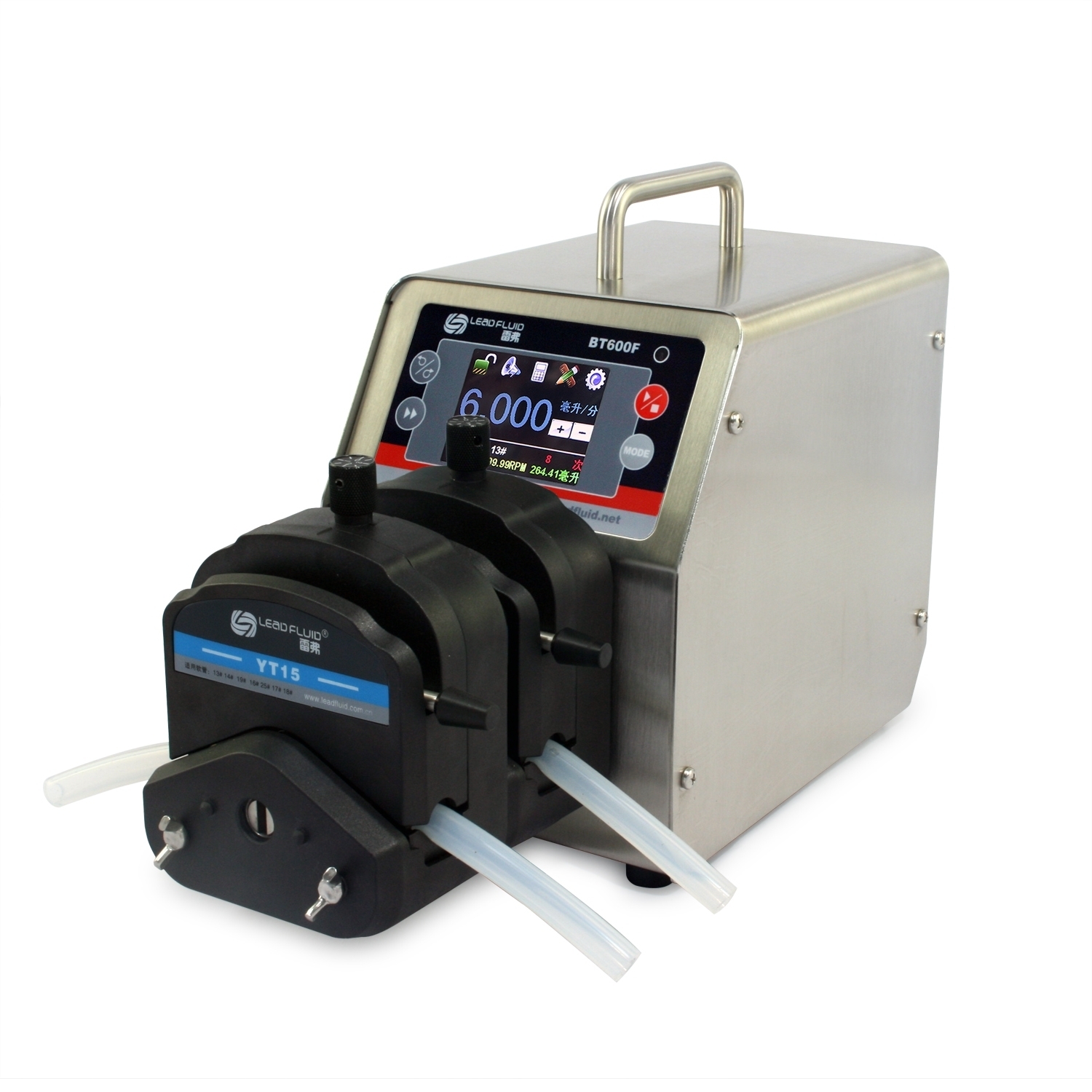

2 x YT15 |
2 |
13# 14# 16# 19# 25# 17# 18# |
0.006-2300 |
