BT100F-1 Intelligent Dispensing Peristaltic Pump

$1,195.00$2,400.00

BT100F-1 intelligent dispensing peristaltic pump provides flow range from 0.00011 to 1700 mL/min with variable pump heads and tubings. The color LCD touch screen provides intuitive and clear displaying interface. There are four operation modes available: volume dispensing mode for high accuracy dispensing; time dispensing mode for high productive efficiency; copy dispensing mode for separating fluid to number of equal parts; flow mode is the same as intelligent flow peristaltic pump. Large torque output to work with more pump head combinations. Intelligent temperature control technology reduces working noise. With standard MODBUS RS485 interface, the pump is easy to communicate with external device, such as PC, HMI or PLC. Stainless steel housing is easy to clean and corrosion resistant.

Flow: 0.00011-1700mL/min
Max: 24 Channels
SKU: BT100F-1 Category:

Functions and Features

  • Color LCD displaying, touch screen and keypad for operating.
  • Four types of working mode: Flow rate mode; Volume dispensing mode; Time dispensing mode; Copy dispensing mode.
  • Three dispensing modes store five groups of working parameters automatically.
  • Easy button control to reverse direction, start/stop and run full speed (for cleaning).
  • Display and control flow rate, accumulated dispensing volume.
  • Expert guide calibration flow function.
  • Remote infrared control (optional).
  • Professional operating system.
  • Intelligent temperature control technology reduces working noise.
  • External on/off voltage input controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; External analog signal input adjusts the rotating speed.
  • MODBUS RS485 interface, easy to connect external device.
  • Internal double-deck isolation structure; circuit board with conformal coating makes it dust proof and moisture proof.
  • Anti-interference feature, wide input voltage range for complex power environment.
  • Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid, alkali, sodium and the organic solvents.
  • Large torque output, can drive multi-channels and various types of pump heads.
  • Optional footswitch or timer for dispensing fluid.

Specifications

  • Flow range: 0.00011-1700 mL/min
  • Speed range: 0.1-150 rpm
  • Speed resolution: 0.1 rpm
  • Flow accuracy: 0.5%
  • Power supply: AC 180-264V 50Hz/60Hz; AC 90-132V 50Hz/60Hz
  • Power consumption: < 60W
  • External logic level control signal: 5V, 12V (standard), 24V (optional)
  • External analog control signal: 0-5V (standard), 0-10V, 4-20mA (optional)
  • Communication interface: MODBUS RS485
  • Operating condition: 0~40 °C
  • Relative humidity: < 80%
  • IP grade: IP31
  • Dimensions (L x W x H): 285mm × 250mm × 195mm (11.2 inch x 9.8 inch x 7.7 inch)
  • Weight: 6.5kg (14.3 lbs)

BT100F-1 Suitable Pump Heads and Tubing, Flow Parameters

Drive type Pump head Ch Tubing size (mm) Flow rate per channel (mL/min)

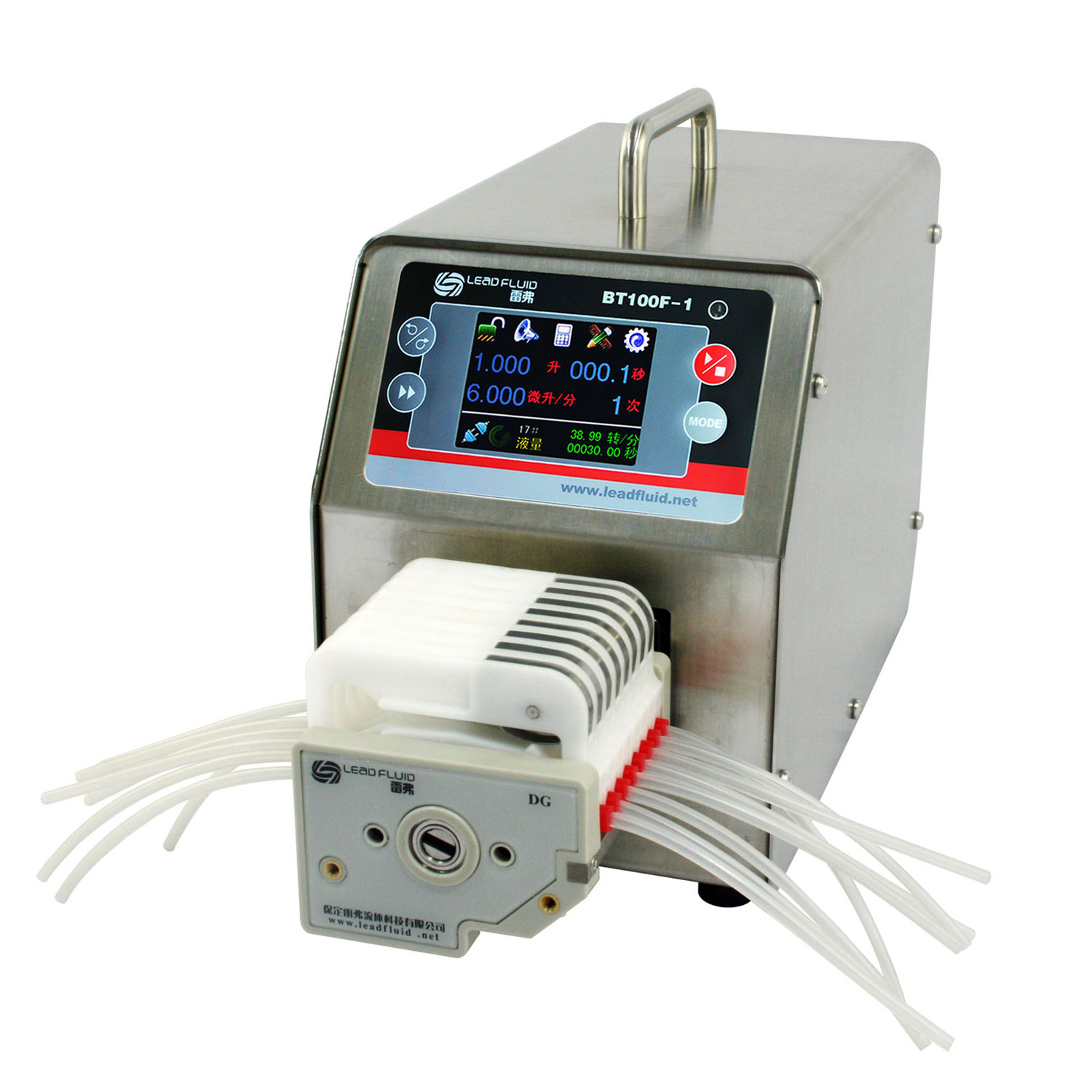

BT100F-1 DG6-8 (6rollers) 8 Wall:0.8~1, ID:≤2.4 0.00016-26
DG10-8 (10rollers) 8 Wall:0.8~1, ID:≤2.4 0.00011-20
DG6-12 (6rollers) 12 Wall:0.8~1, ID:≤2.4 0.00016-26
DG10-12 (10rollers) 12 Wall:0.8~1, ID:≤2.4 0.00011-20

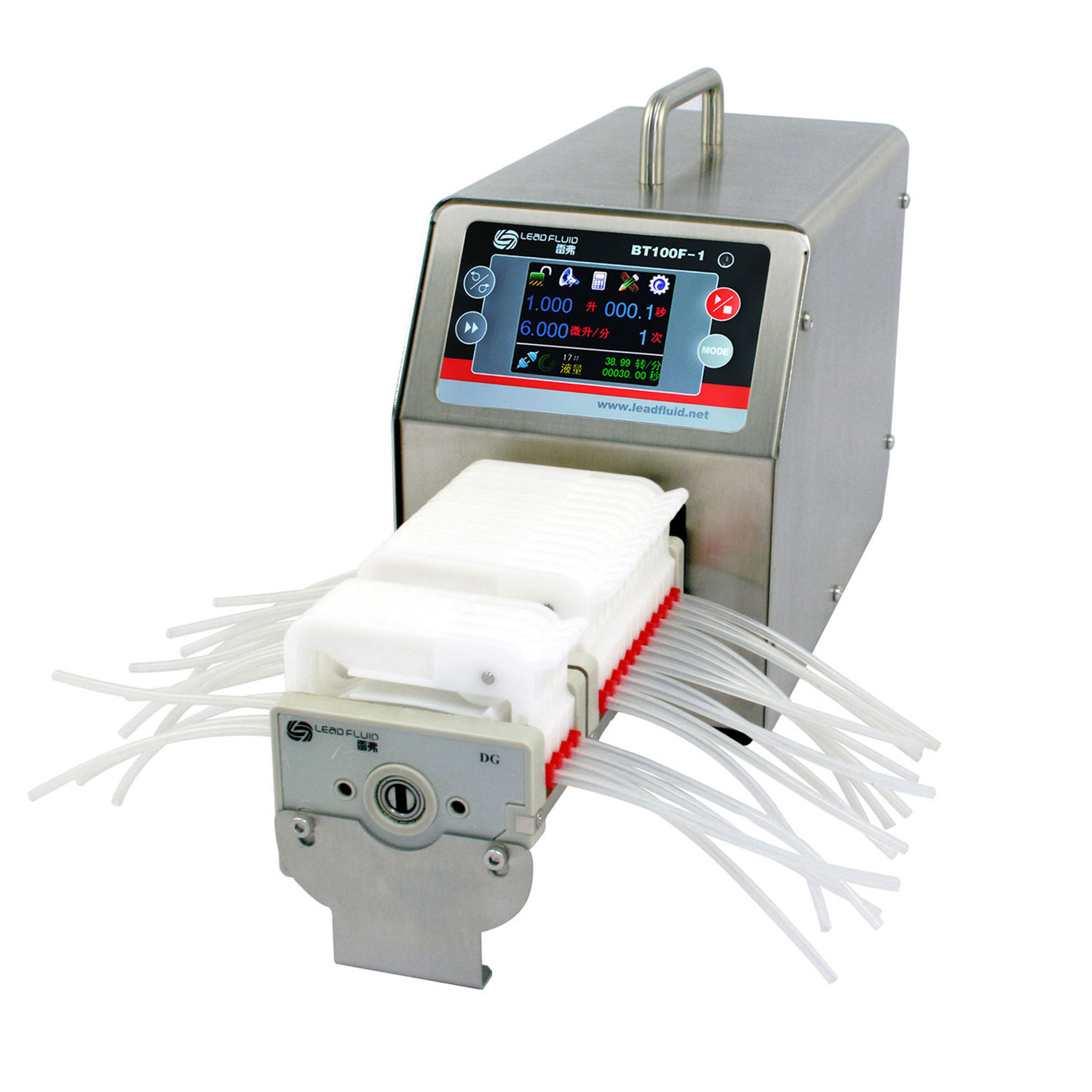

DG6-16 (6rollers) 16 Wall:0.8~1, ID:≤2.4 0.00016-26
DG10-16 (10rollers) 16 Wall:0.8~1, ID:≤2.4 0.00011-20

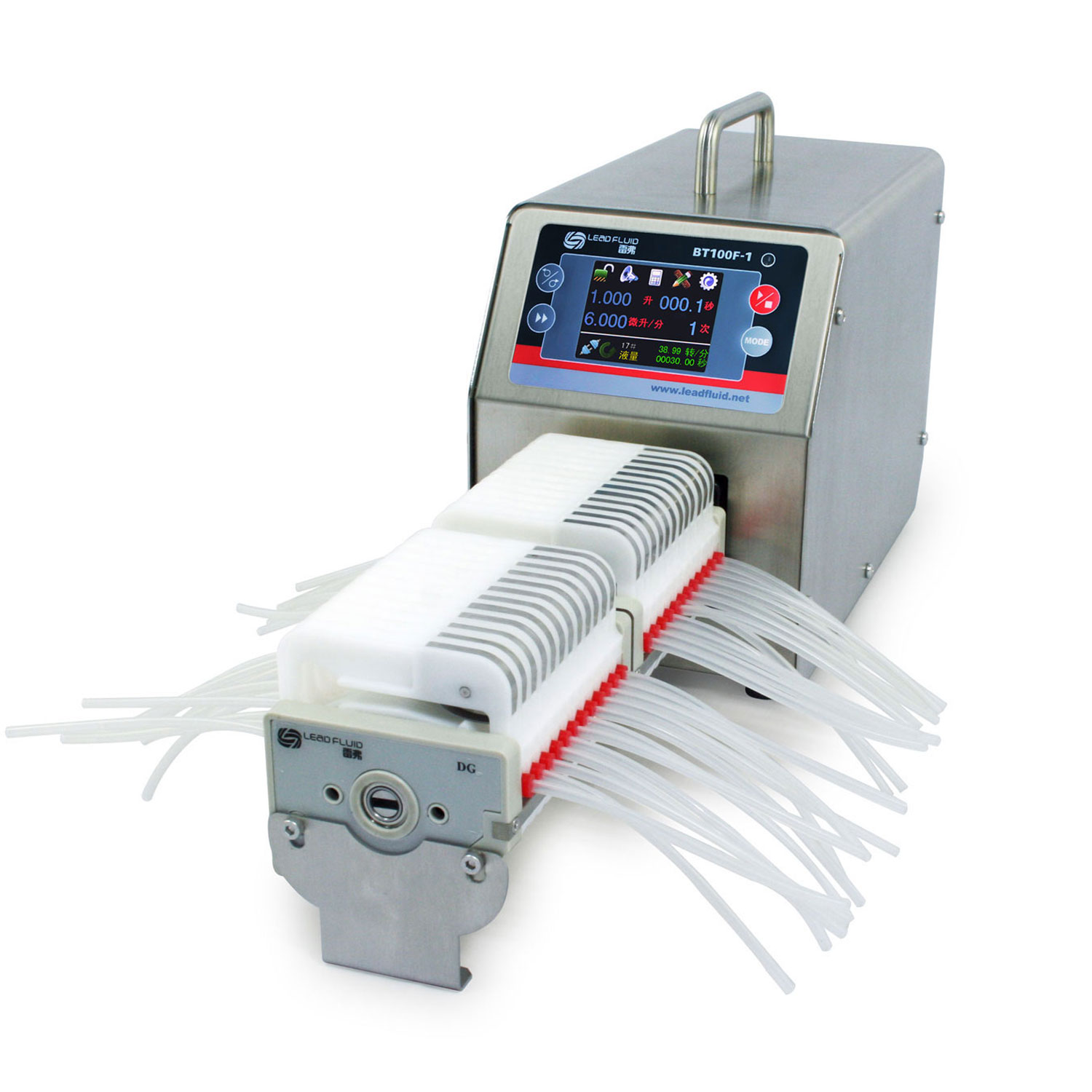

DG6-24 (6rollers) 24 Wall:0.8~1, ID:≤2.4 0.00016-26
DG10-24 (10rollers) 24 Wall:0.8~1, ID:≤2.4 0.00011-20

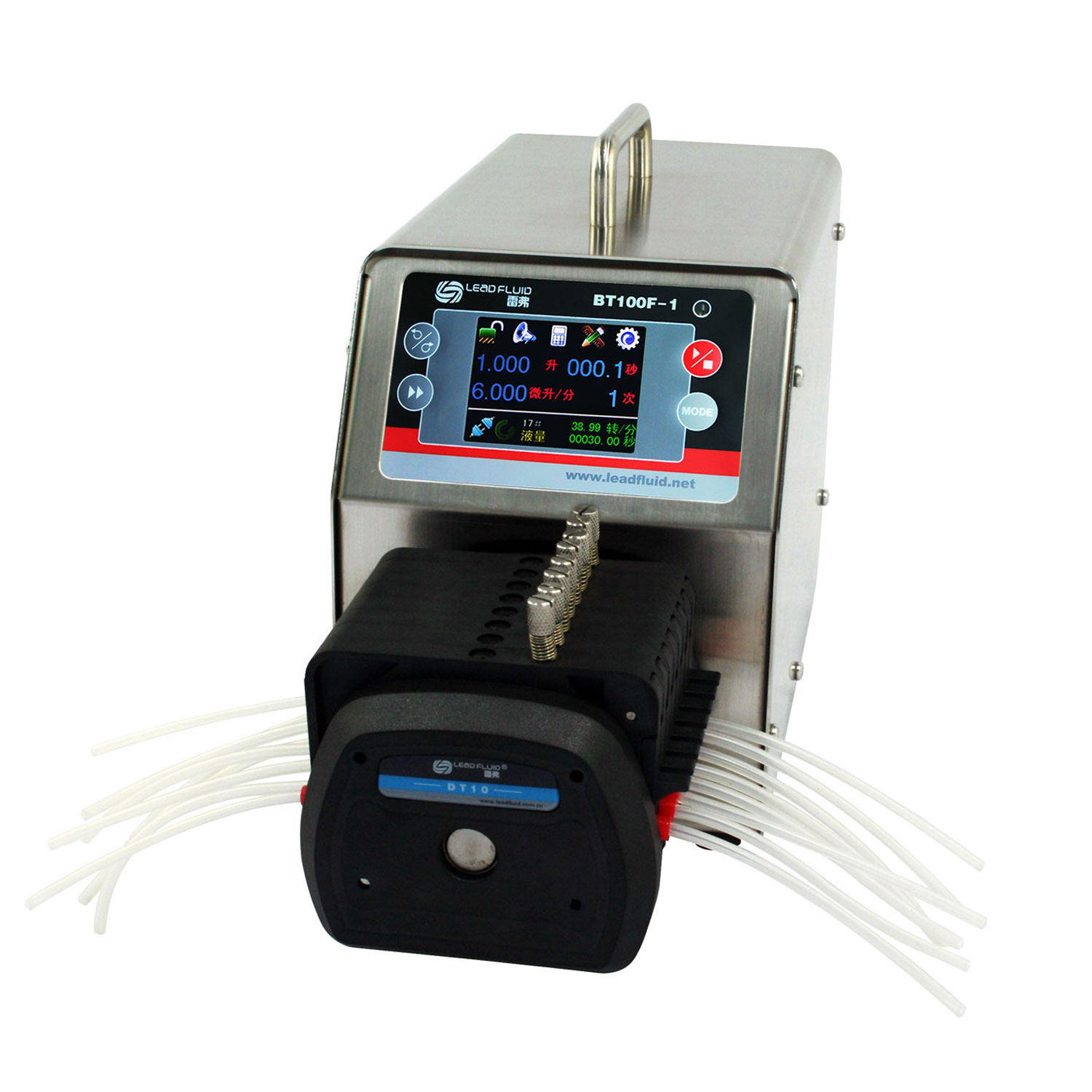

DT10-88 8 13# 14#, Wall:0.8~1, ID:≤3.17 0.0002-82

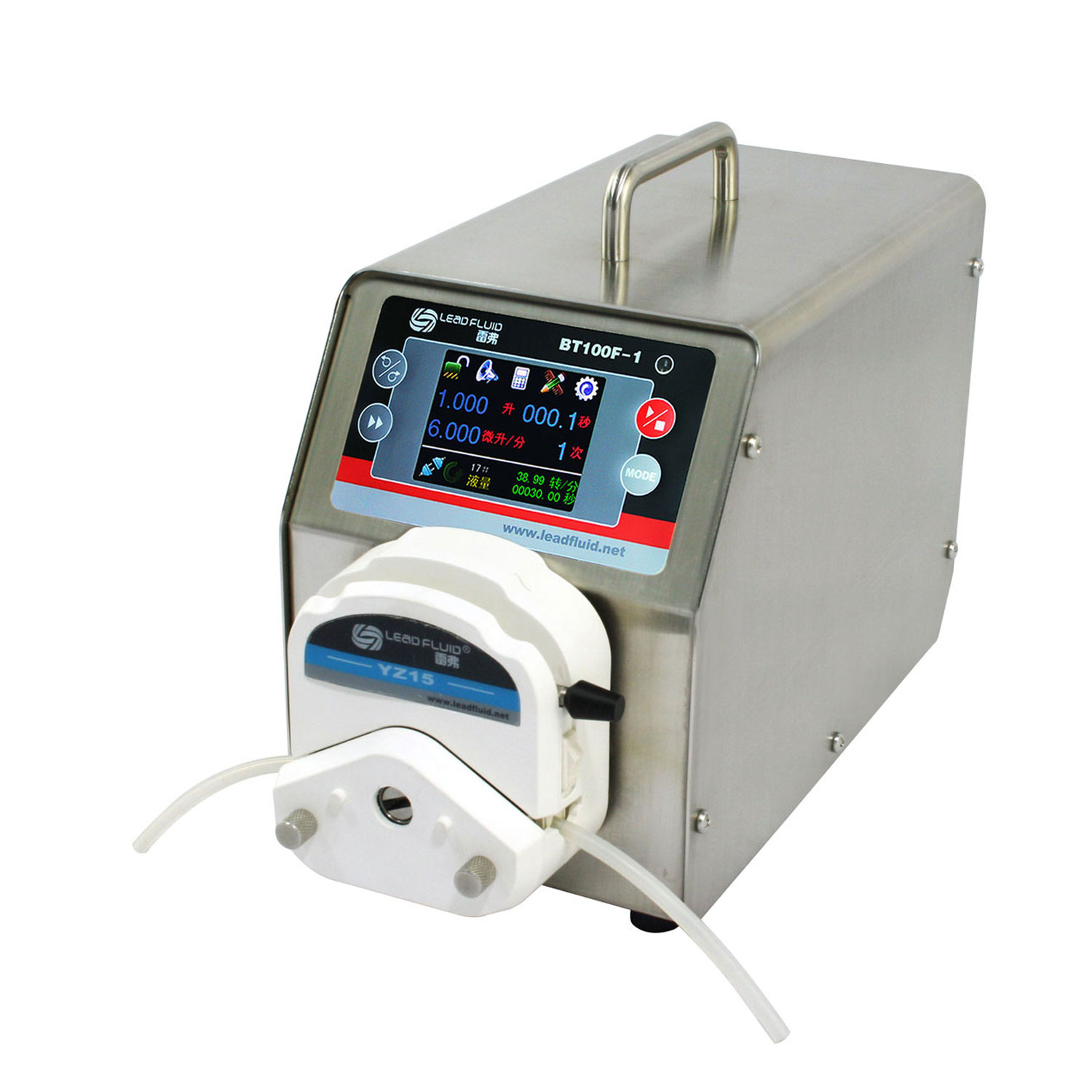

YZ15 1 13# 14# 16# 19# 25# 17# 0.006-420
YZ25 1 15# 24# 0.16-420
2 x YZ15 2 13# 14# 16# 19# 25# 17# 0.006-420
2 x YZ25 2 15# 24# 0.16-420

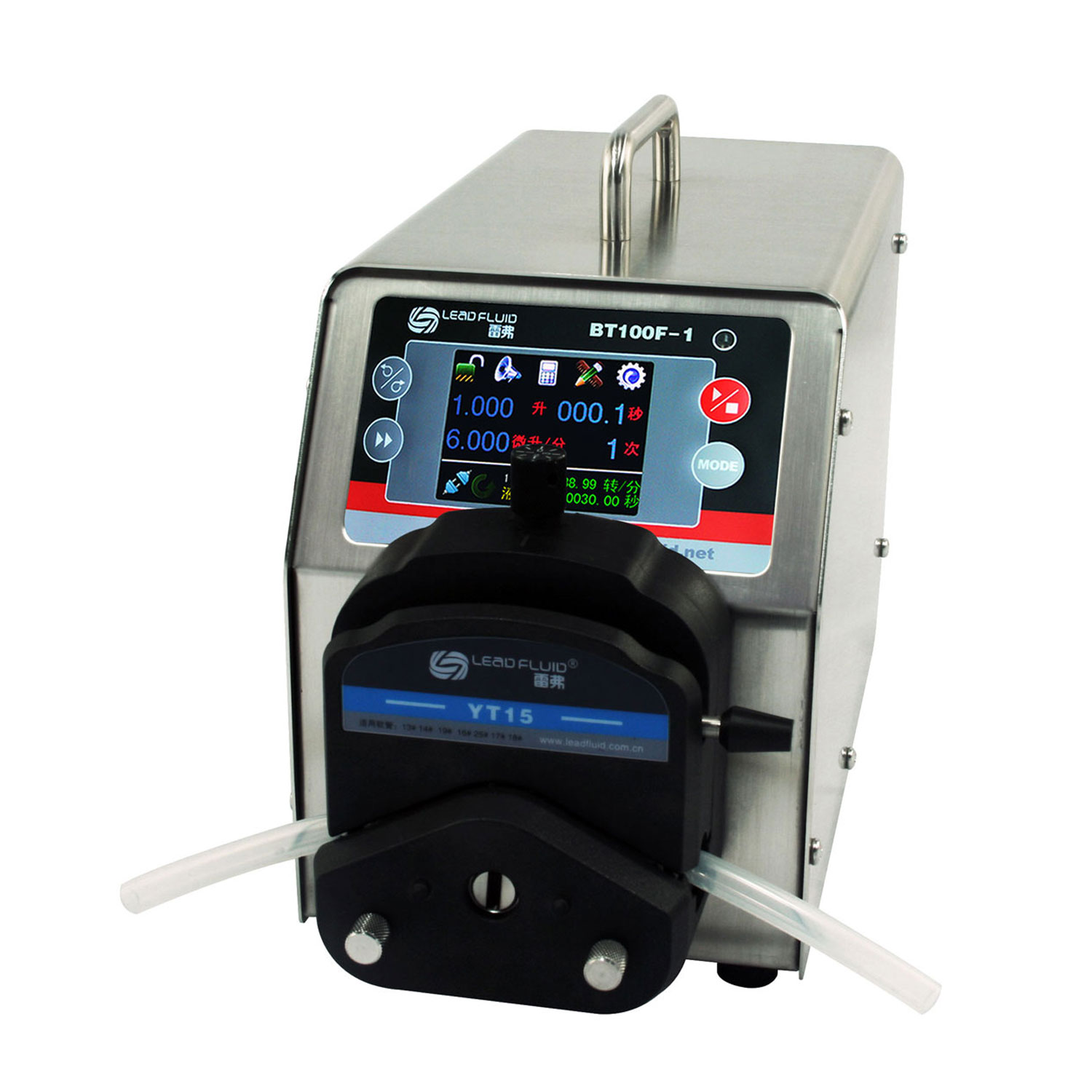

YT15 1 13# 14# 16# 19# 25# 17# 18# 0.006-570

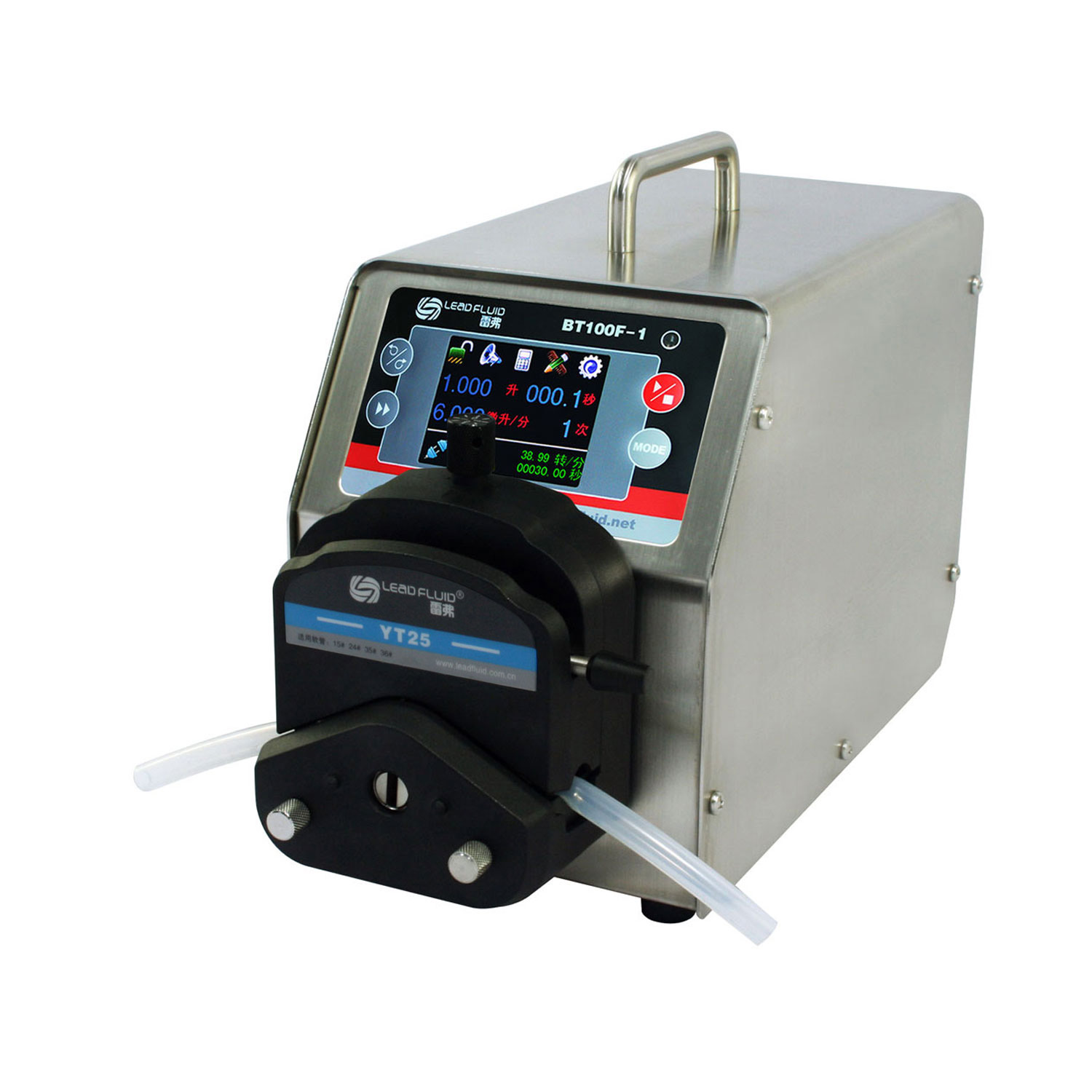

YT25 1 15# 24# 35# 36# 0.017-720

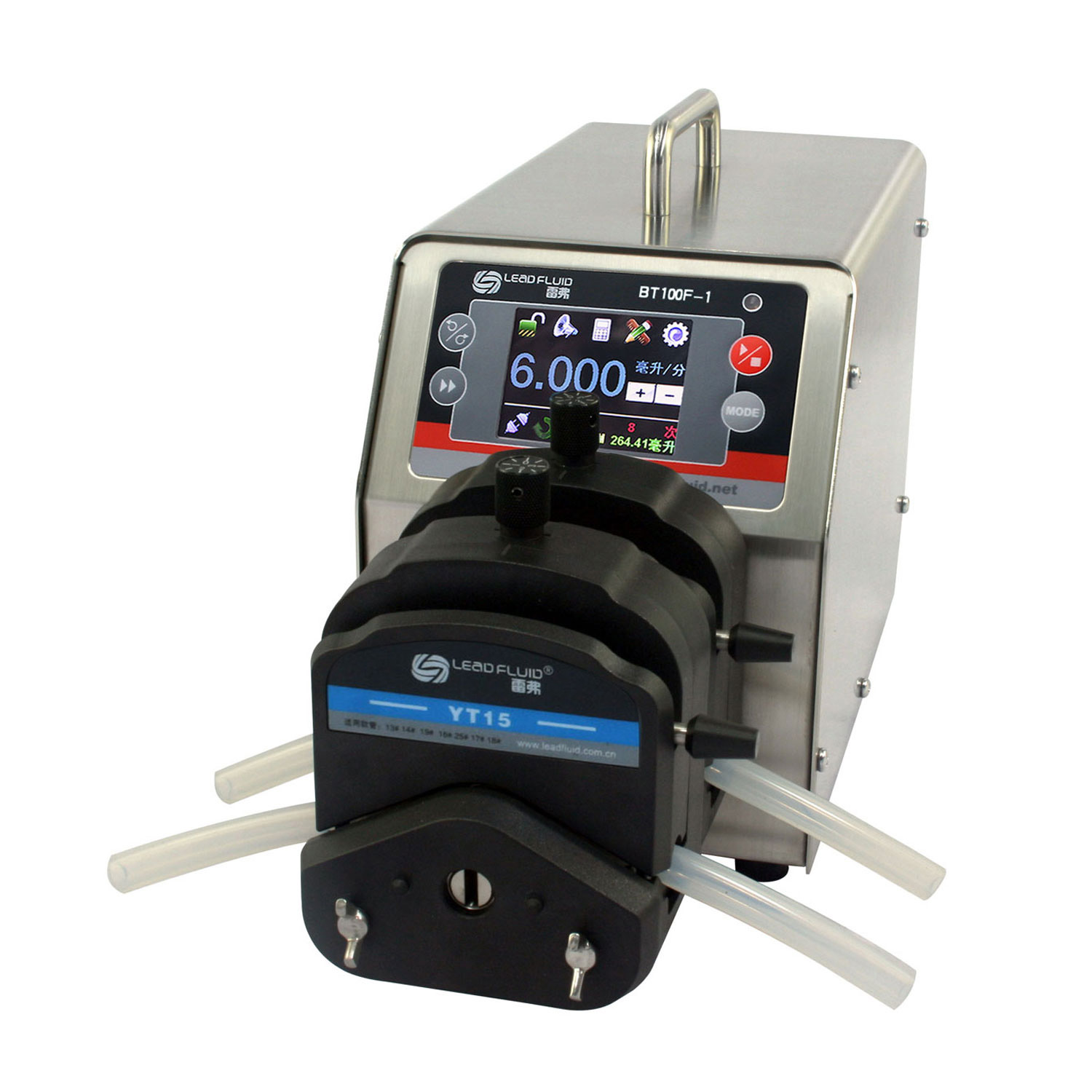

2 x YT15 2 13# 14# 16# 19# 25# 17# 18# 0.006-570

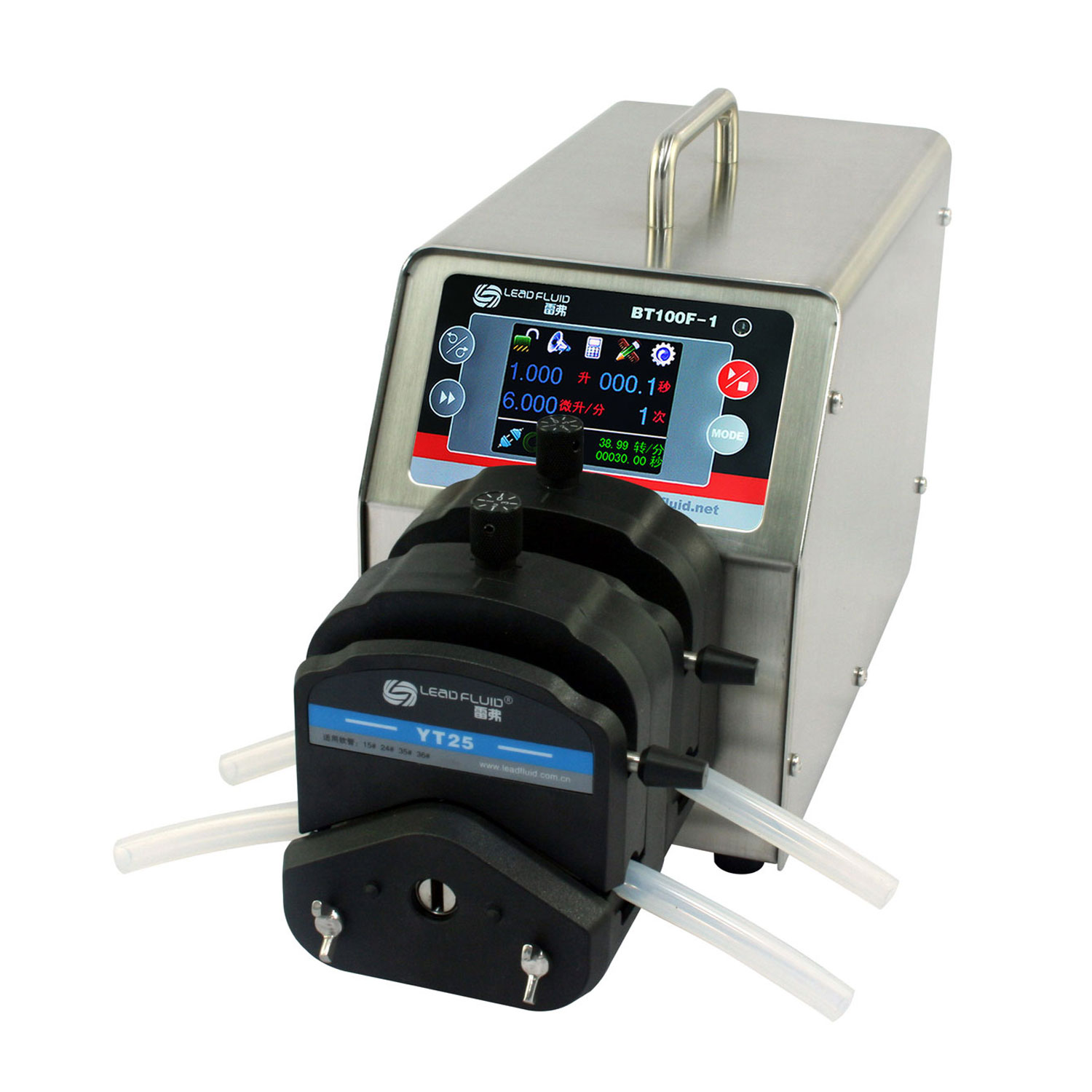

2 x YT25 2 15# 24# 35# 36# 0.017-720
DT15-14 1 16# 19# 25# 17# 0.05-400

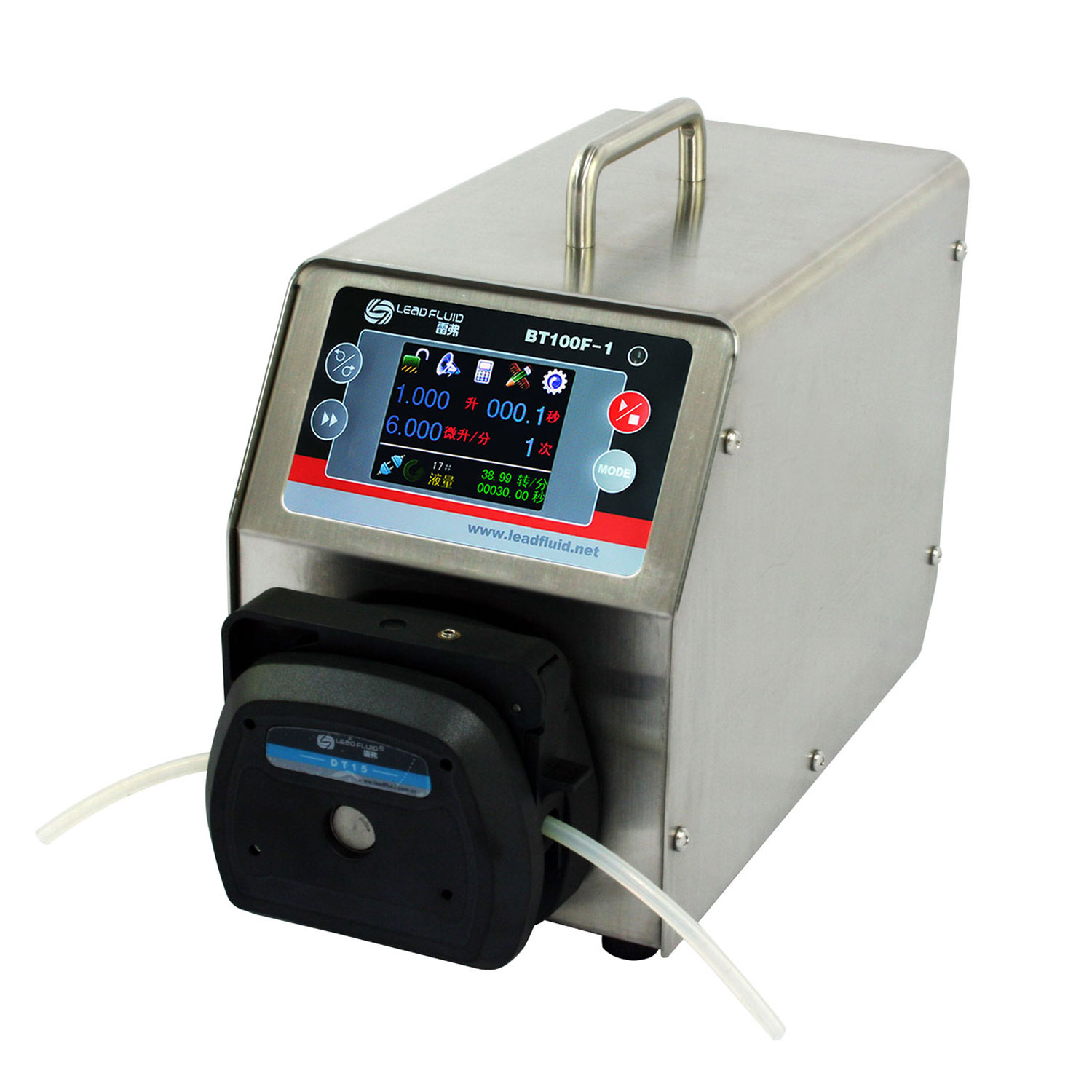

DT15-24 2 16# 19# 25# 17# 0.05-400

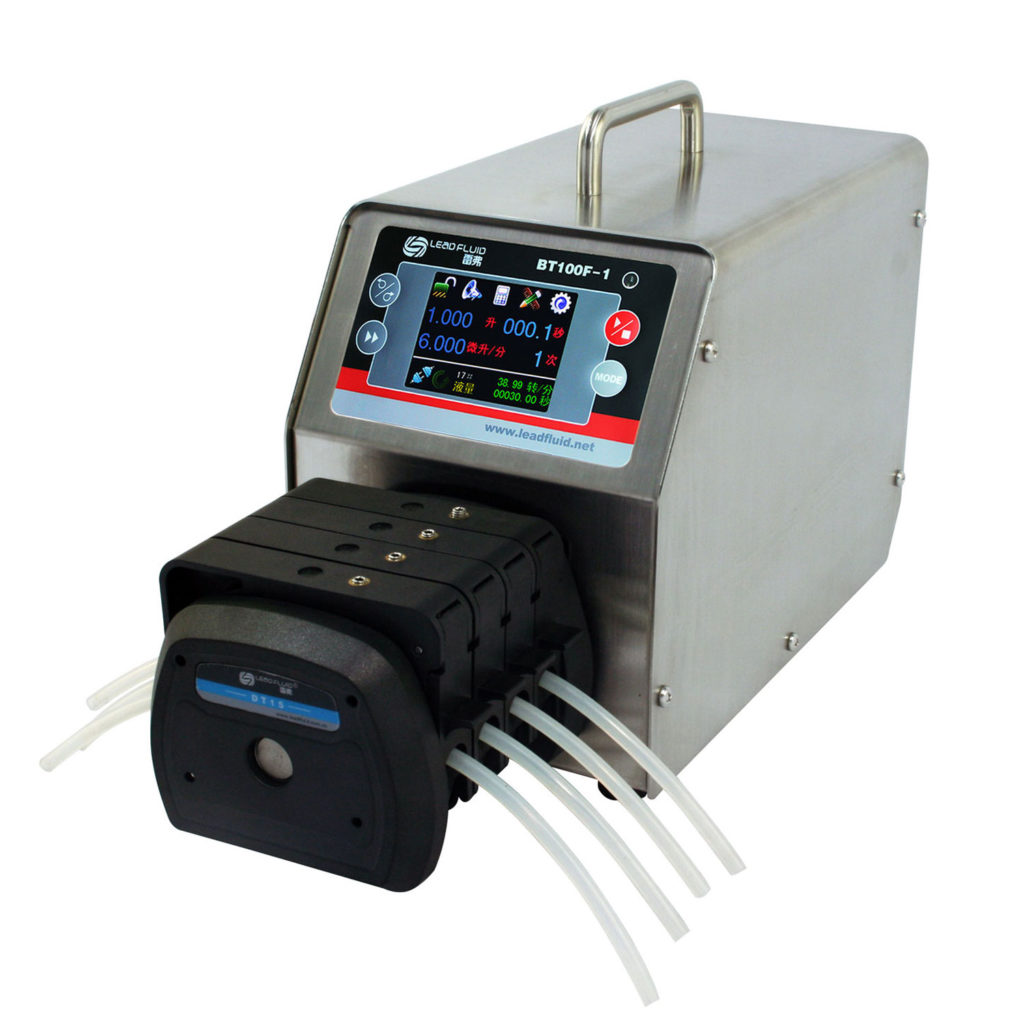

DT15-44 4 16# 19# 25# 0.05-260

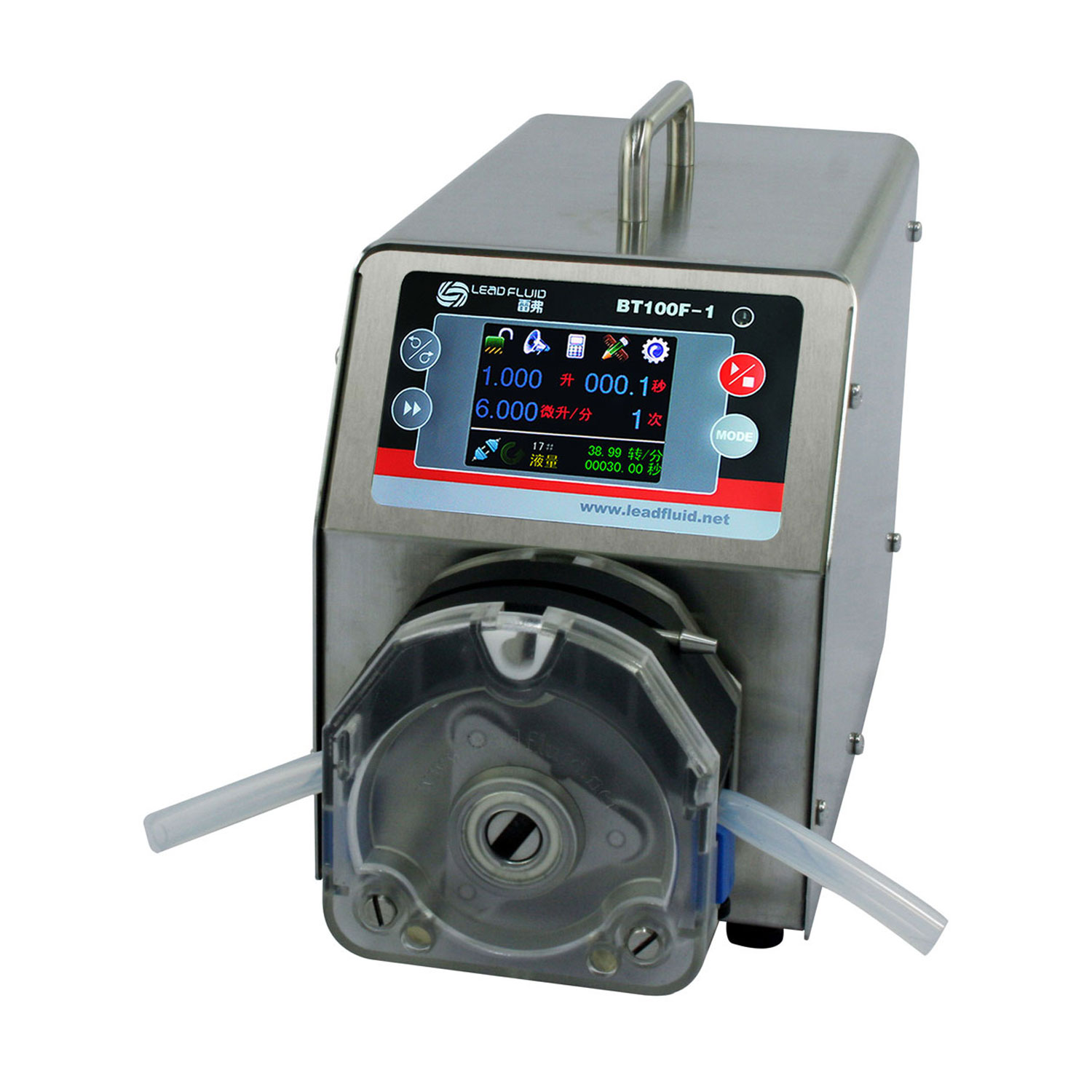

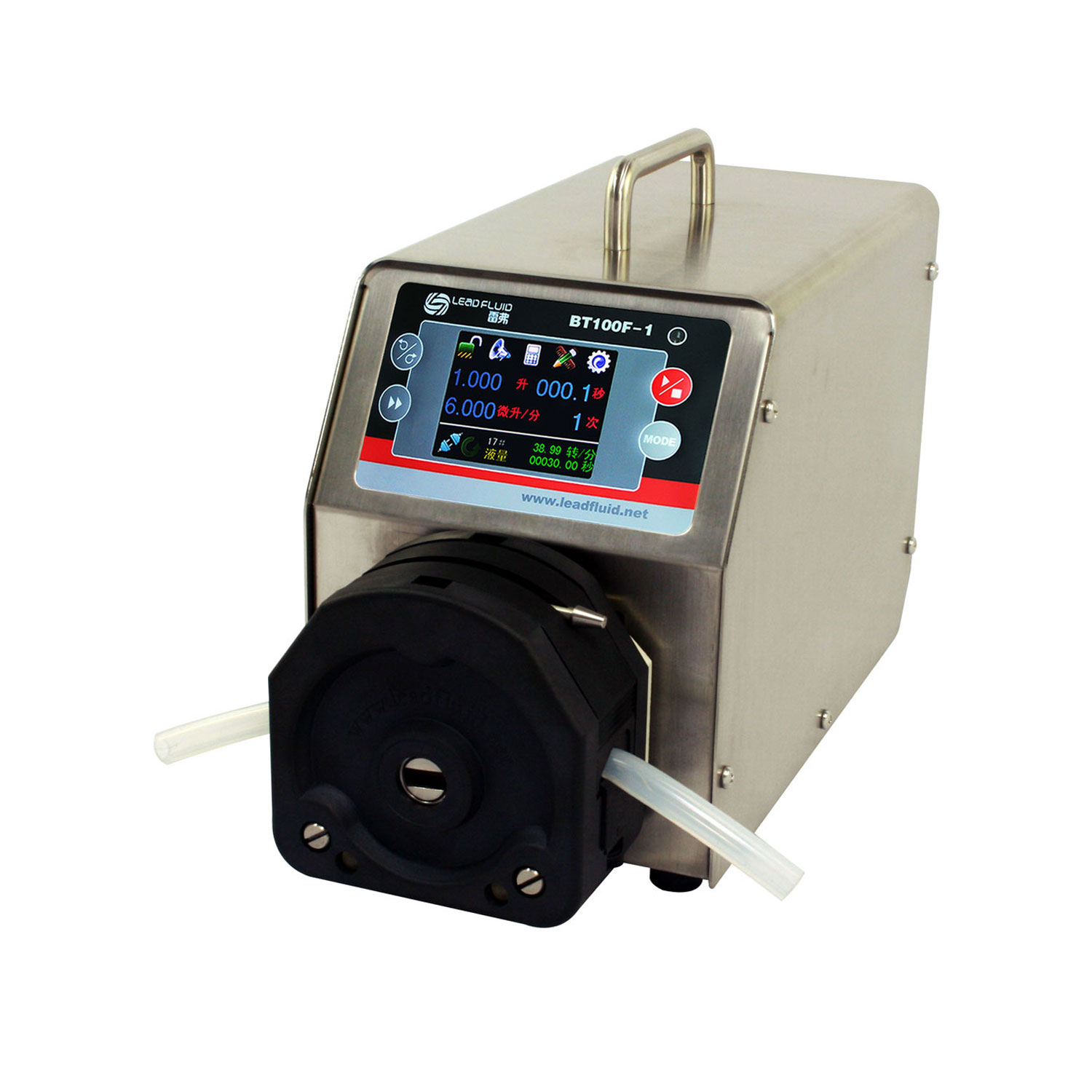

KZ25 1 15# 24# 35# 36# 0.25-1200
DMD25 1 15# 24# 35# 36# 0.3-1700

Additional Information

Weight 20 lbs
