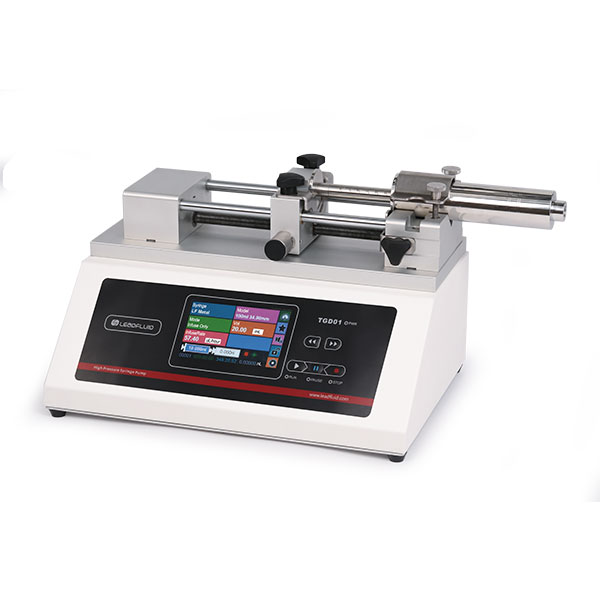

TGD01 Precision High Pressure Syringe Pump

$4,952.00

Product introduction

TGD01 is a single channel high pressure syringe pump, HD LCD touch screen, transmission of linear thrust> 200lbs in a wide range of flow rate, support five working modes such as infuse and withdraw.

RS485 communication, compatibility MODBUS protocol, wide range power input, suitable for high-precision transmission of liquids (including high viscosity).

Max: 1 Channel

In stock

SKU: TYD01-02-1 Category:

Function and Feature

  • Accurate and stable flow rate.
  • Can hold stainless steel syringes for high pressure or viscous liquid transmission.
  • The accuracy and stability of liquid injection.
  • Power-down memory function.
  • Simple to complex programming operations can be performed without a computer.

Application

High thrust injection, Highly corrosive liquid injection, High viscosity liquid injection, Micro-precision injection, Injection into a high-pressure containe.

Technical Parameter

Syringe size 0.5μl~140ml
Flow range 3.06pl/min (0.5μl syringe)~215ml/min (140ml syringe)
Work mode infuse, withdraw, infuse /withdraw, withdraw/infuse, continuous mode
Channel 1
Stroke of pump 140mm
Pusher advance
per microstep
0.156μm/μstep
Linear speed 1μm/min~190mm/min
Linear travel
accuracy
error<±0.35% (>30% of pump stroke)
Maximum rated linear force 91kg (100% thrust)
Thrust regulation 1~100% arbitrary adjustable
Syringe selection built-in main manufacturers, the main model syringe to choose, can use custom syringe, direct input syringe size and diameter.
Flow calibration through the calibration procedure to obtain more accurate fluid volume
Display 4.3-inch color LCD with screen display and transfusion volume, residual fluid volume,
flow, operation direction, syringe specification, etc. Animation display operation status.
Operation mode touch screen + button
Power-off memory storing the running parameters automatically
Communication interface RS485, MODBUS Protocol
External control External signal control start and stop, status signal output
Power supply AC100~240V, 50Hz/60Hz
Work environment temperature 5~40℃, Relative humidity <80%
Dimension 305×222×190 (mm)
IP grade IP31
Shell material Metal with anti-corrosion coating
Weight 6.6kg

Syringe Specification

Type Specification
Plastic syringe 1~140ml
Micro syringe 0.5~1000μl
Glass syringe 1~50ml
Gas tight syringe 5~100ml
Stainless steel syringe 8ml 20ml 50ml 100ml Stock inventory
(316L syringe, fluoro rubber seal, * perfluoroether rubber seal optional) 2.5ml 8ml 20ml customization

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
