» Product introduction
♦ Flow range: 7~82mL/min

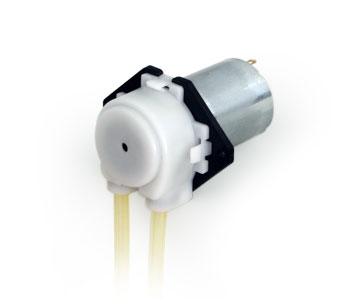

♦ MC10 Micro peristaltic pump, small volume, convenient installation.
♦ Brushless DC motor.
♦ Adjust the speed via adjust the voltage.
♦ The positive and negative directions reversible.
» Variable speed model
|
Model
|
Drive |
Power |
|
MC10 |
DC motor |
12V/24V |
|
MC10 |
Brushless DC motor |
12V/24V |
» Flow rate ,unit(ml/min)
|
Power |
12V motor |
24V motor |
|||
|
12V |
3.5V |
24V |
7V |
||
|
Tube(mm) |
2.4*1.35 |
78.ml/min |
18 ml/min |
78.ml/min |
18 ml/min |
|
1.5*1.35 |
32ml/min |
6.5 ml/min |
32ml/min |
6.5 ml/min |
|
|
0.6*1.35 |
8 ml/min |
2.2 ml/min |
8 ml/min |
2.2 ml/min |
|
