KZ25 High Flow Rate Pump Head

$375.00$1,050.00

SKU: KZ25 Category:

Features

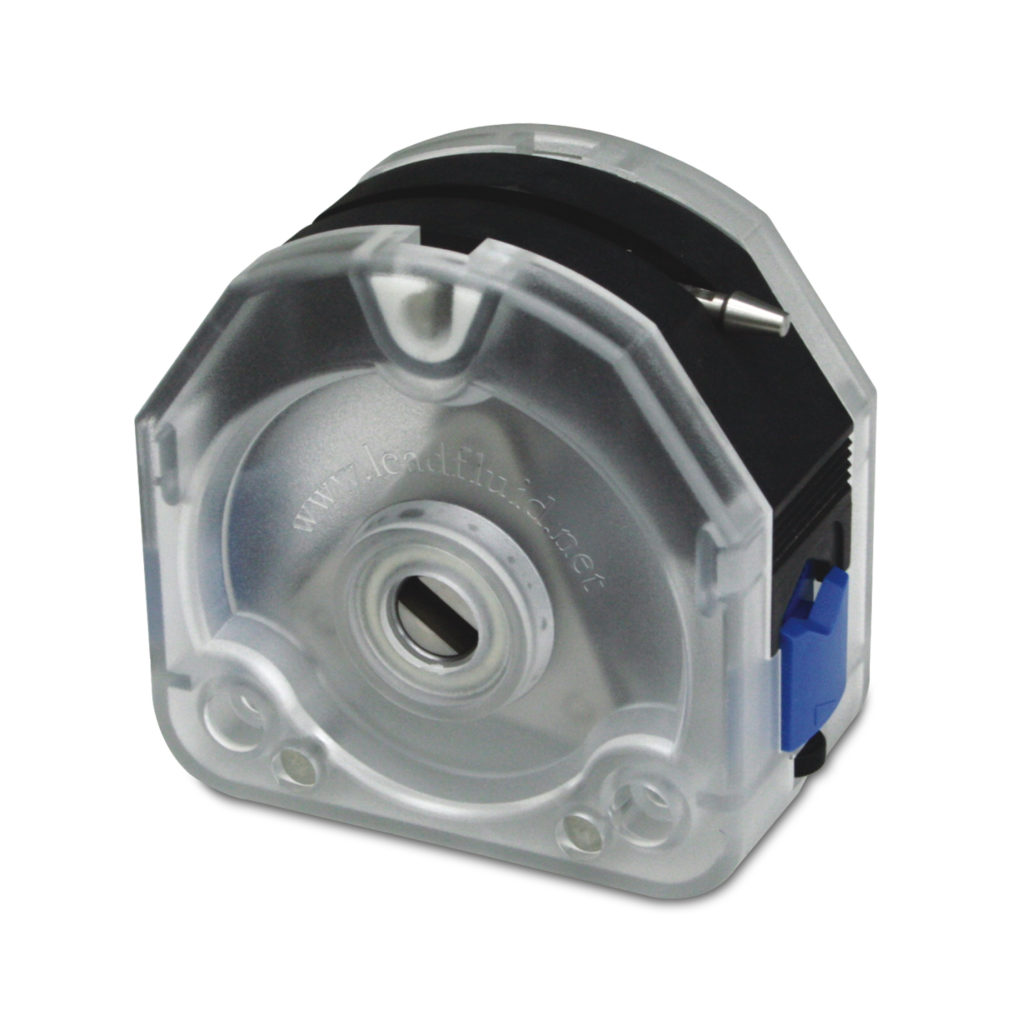

KZ25 pump head is suitable for the large flow transfer, up to 6800mL/min. It can load various tubings. Replacing tubing only needs several seconds, easy to operate. Can be mounted in tandem(up to 2). The PC pump head is transparent for observing the internal work situation of pump head, the top press block material is PPS, which is resistant to high temperature and corrosion.

Flow Rate (mL/min) vs rpm

KZ25 flow rate vs rpm

Specifications

  • Flow range: ≤6800mL/min
  • Speed range: ≤600 rpm

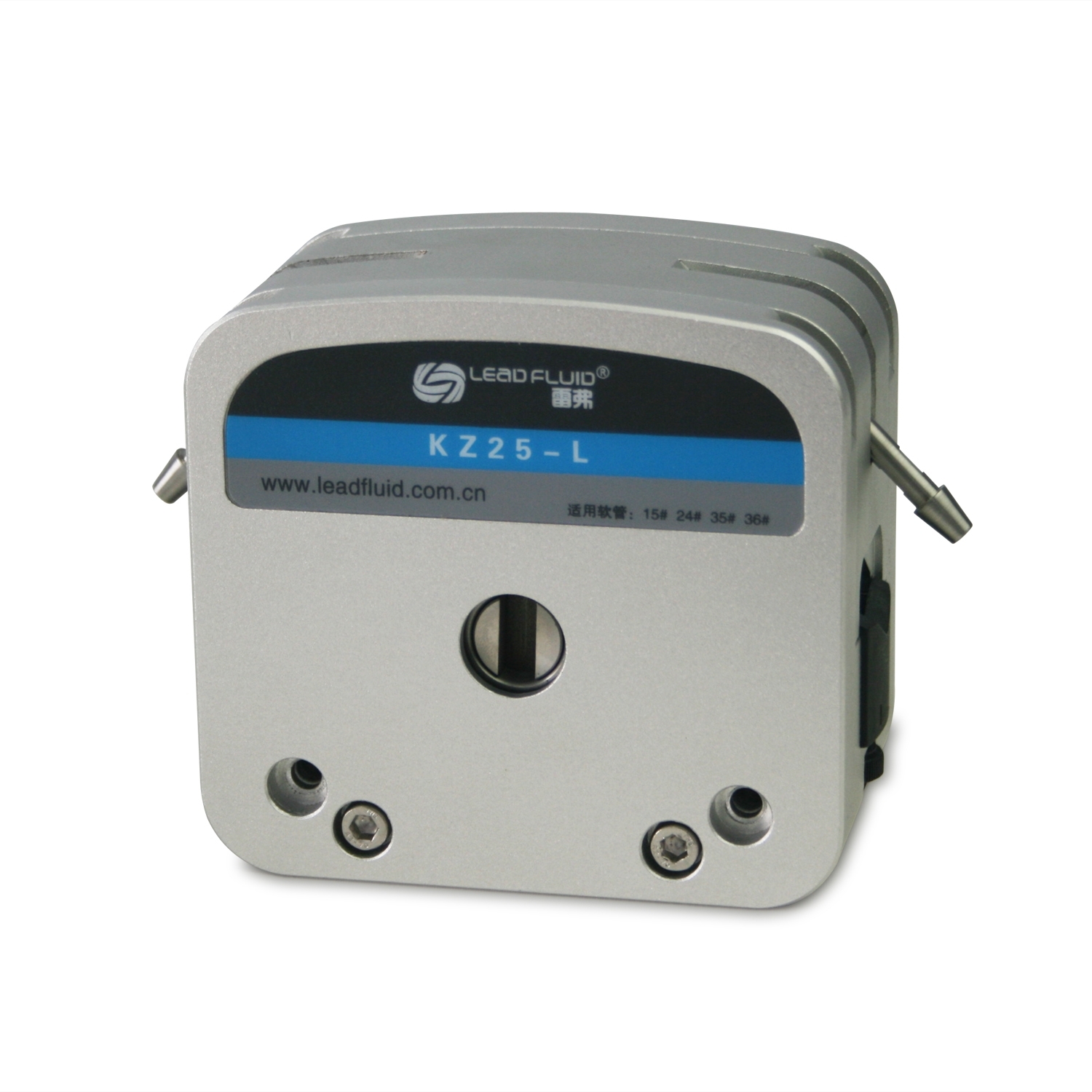

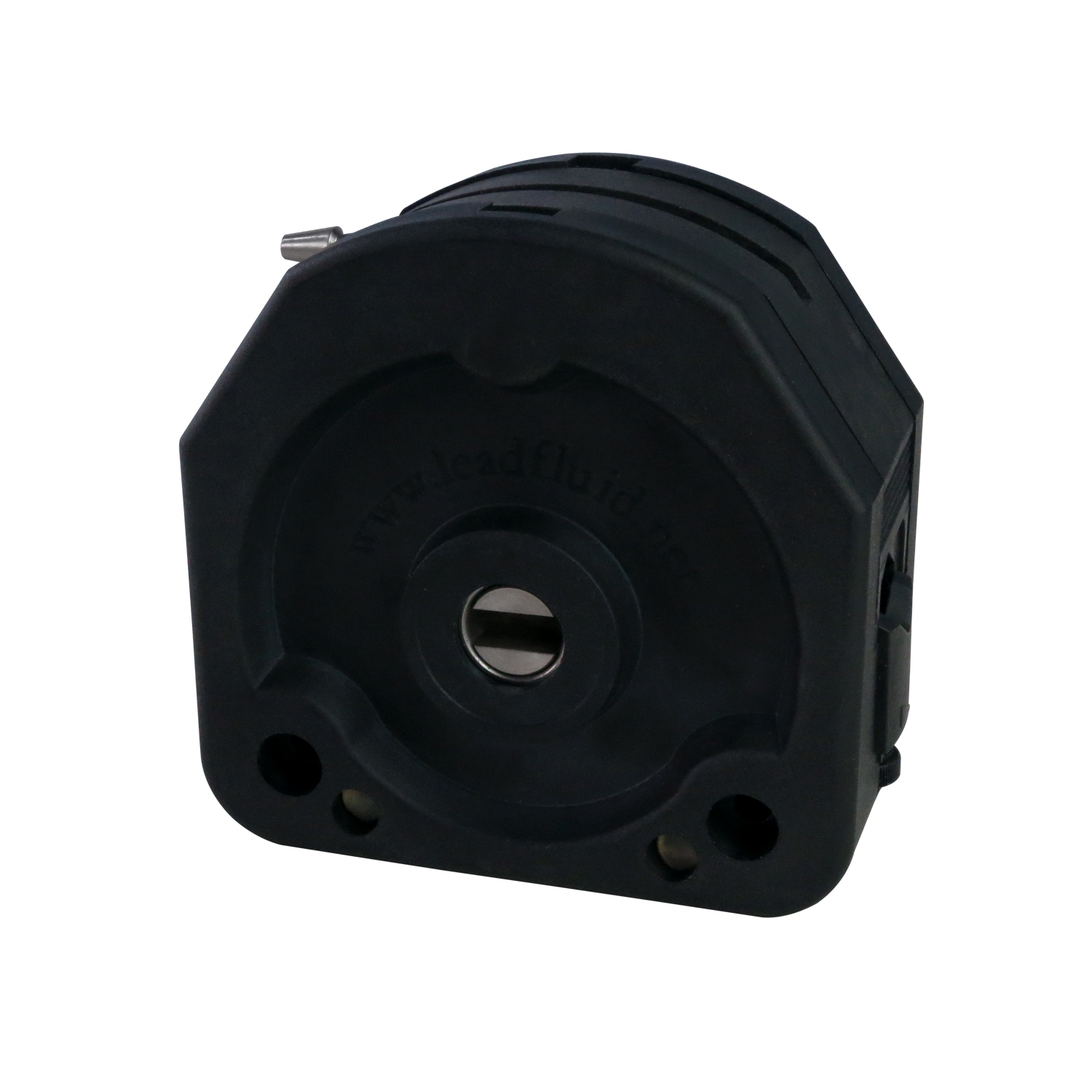

  • Shell material: PC, PPS or Aluminum (KZ25-L)
  • Press block material: PPS or Aluminum
  • Roller material: 304 stainless steel
  • Roller number: 3
  • Tubing-fixing adjustment: manual
  • Gap adjustment: fixed
  • Applicable tubings: 15 #, 24 #, 35#, 36#

Additional Information

Weight 5 lbs
Dimensions 8 × 8 × 8 in
