DT Pump Head


SKU: DT Category:

DT Series multi-channel pump head

DT15 pump head is designed for small and medium flow rate, multichannel fluid conveying plug type card is convenient and quick to replace the hose. Pump head is equipped with high quality stainless steel roller and the card has the function of adjustment the gap of pressured tube. And two card can install in positive, connect exit/entrance of each channel with Y type connector, then it reduces the pulse. Pump head adopts PPS material ,it is better for chemical resistant. Instead of 2/4 channels of YZ15 pump head, volume is smaller.

Model Chn Rollers Roller Housing Max Speed Tubing Max Flow Rate (mL/min) Weight (kg)
DT15-14 1 4 304 Stainless Steel PPS 600(rpm) 19#, 16# 25#, 17# 1600 0.62

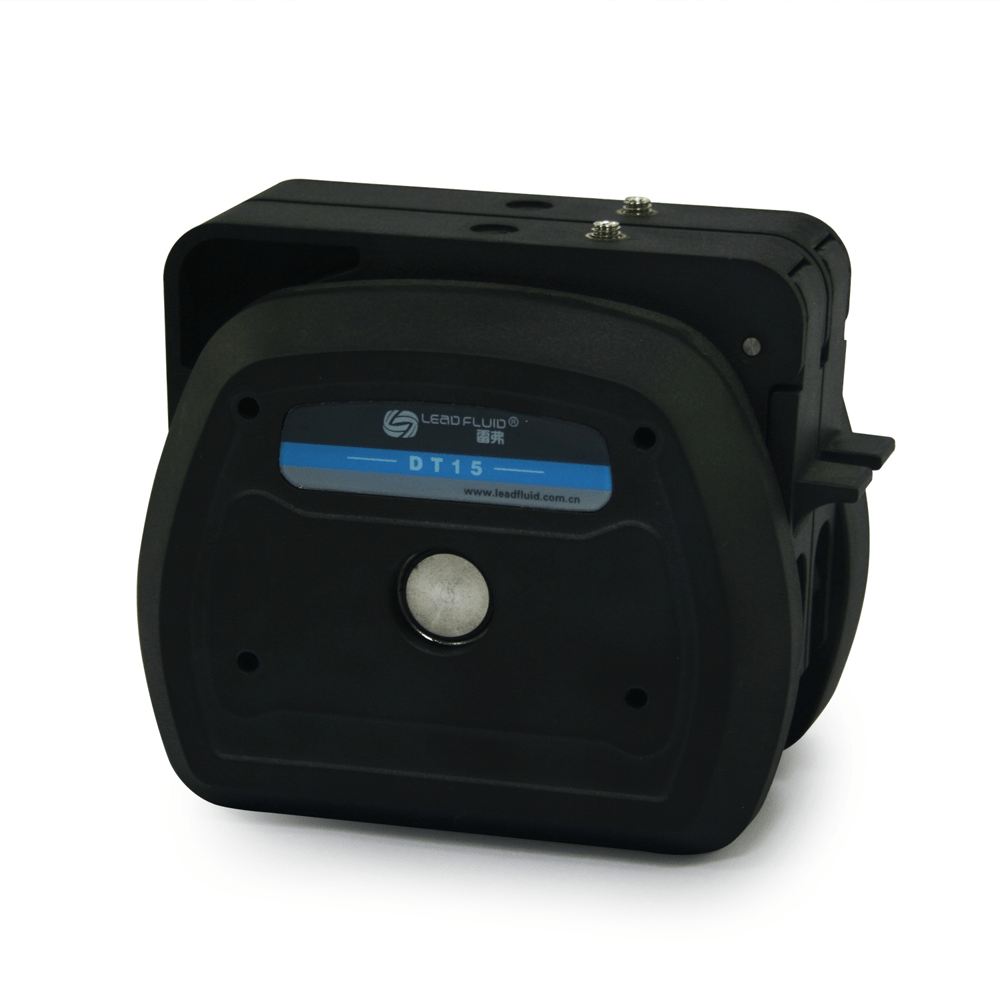

DT15-24 2 1
DT15-44 4 1.44

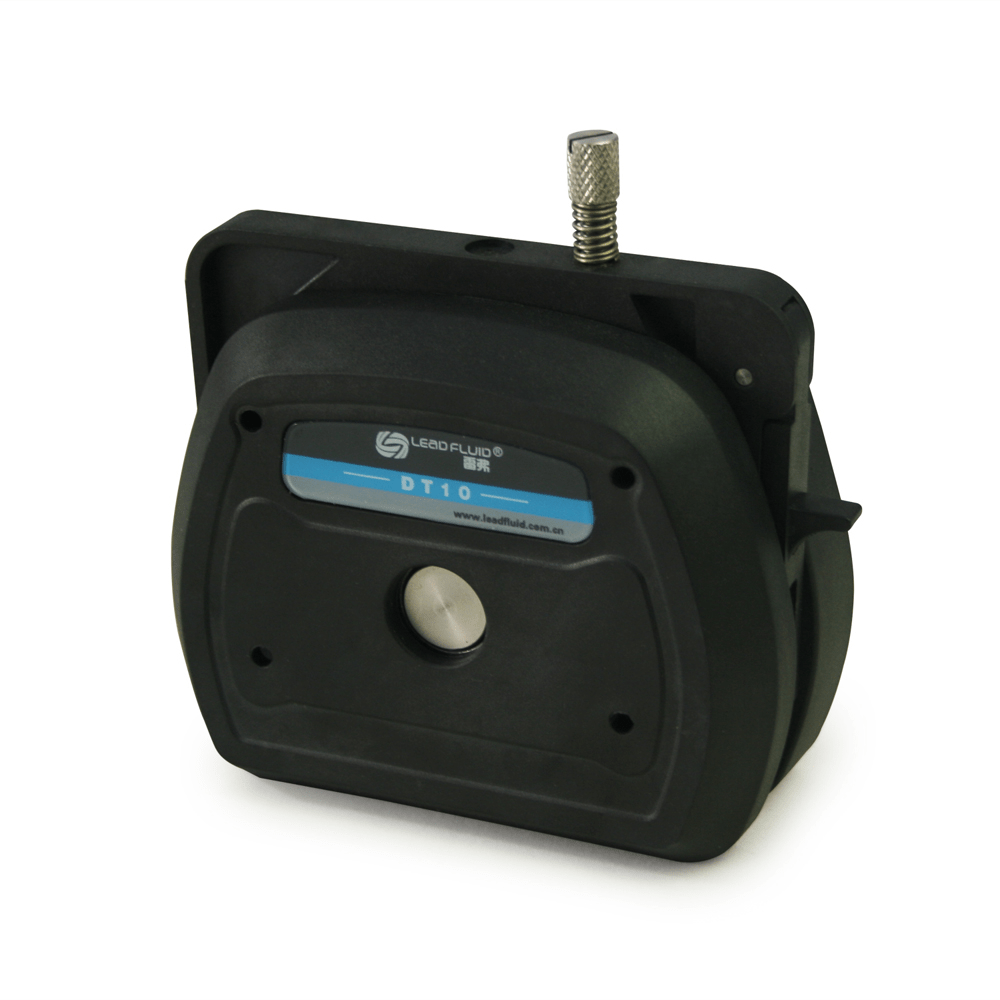

DT10-18 1 8 100(rpm) ID < 3.17mm, Wall 0.8-1mm; 13#, 14# 70 0.72

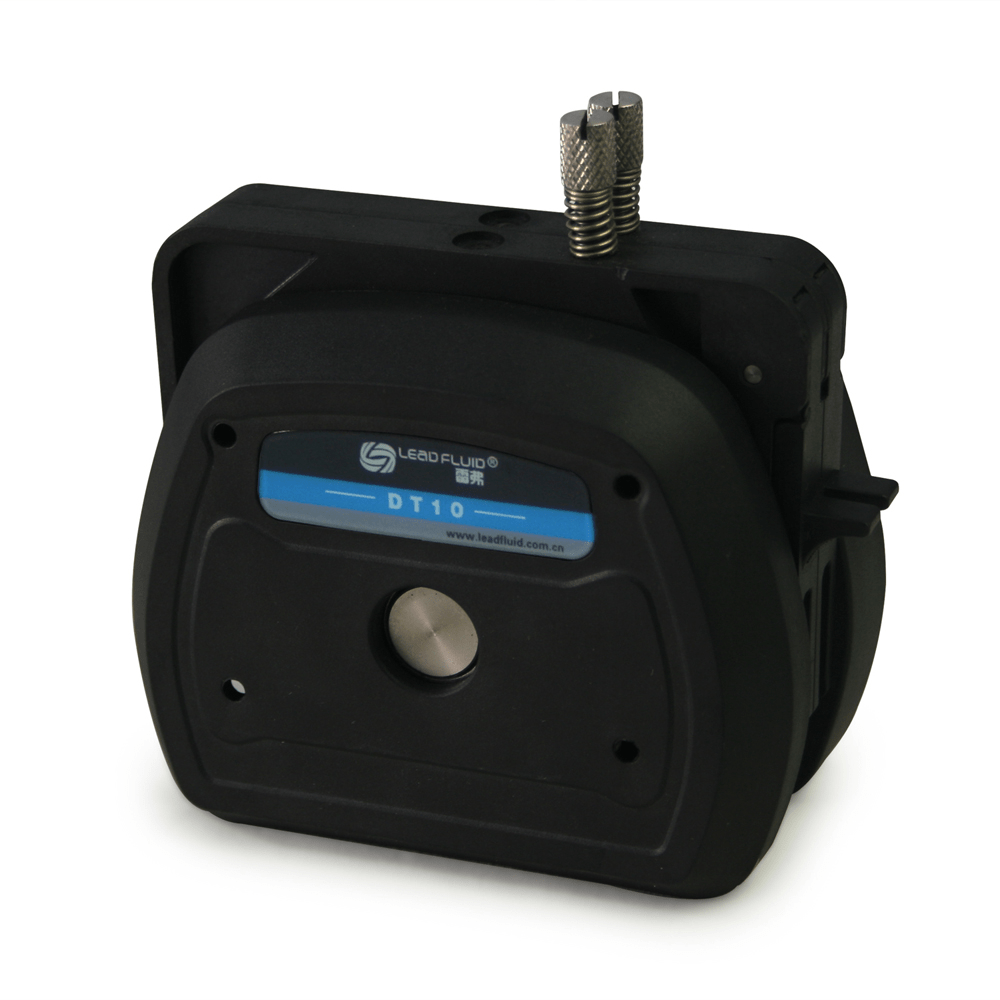

DT10-28 2 0.78

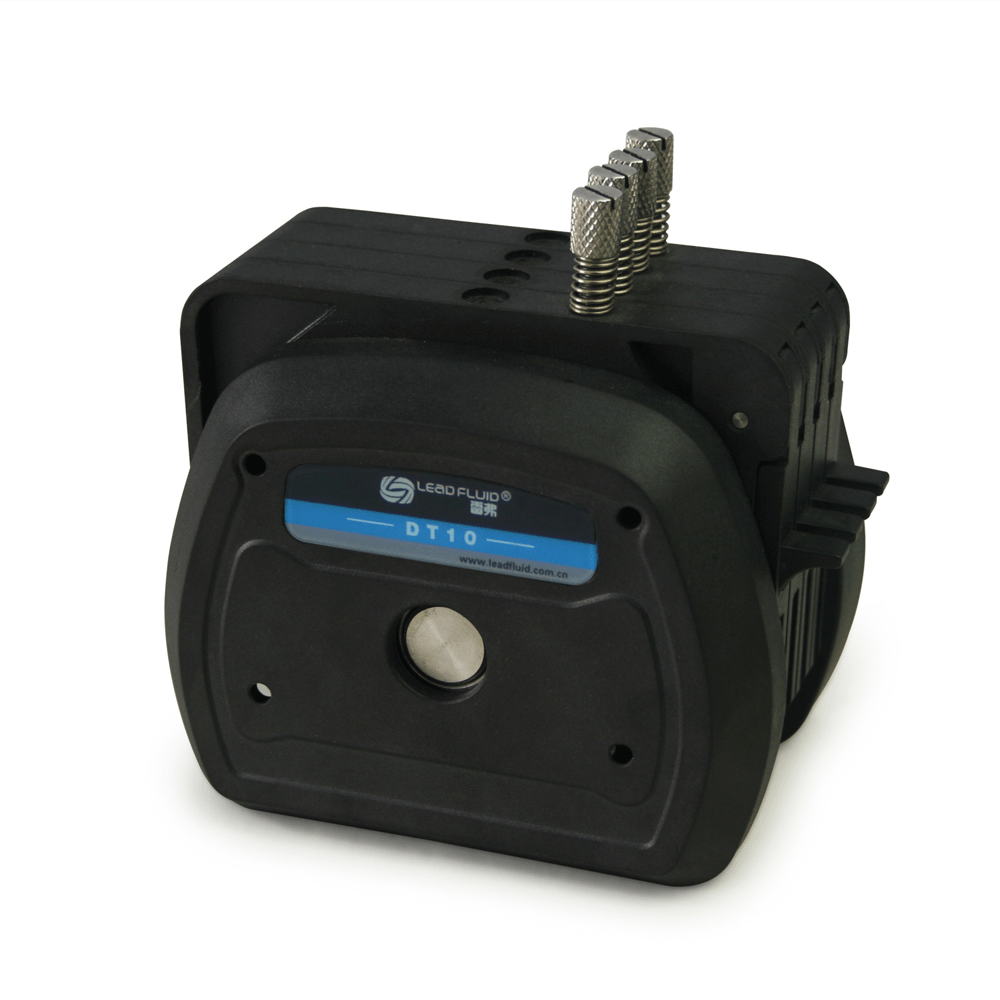

DT10-48 4 1.08

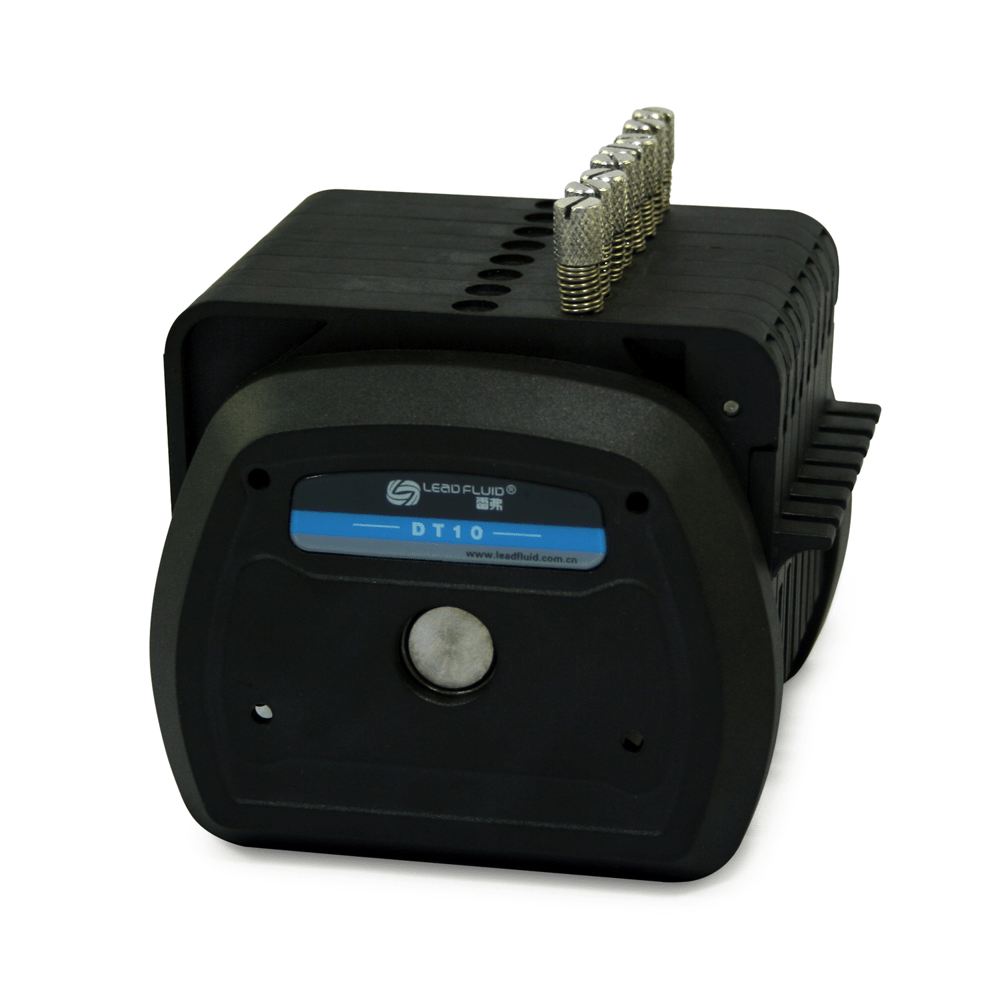

DT10-88 8 1.68

Additional Information

Weight 2 lbs
