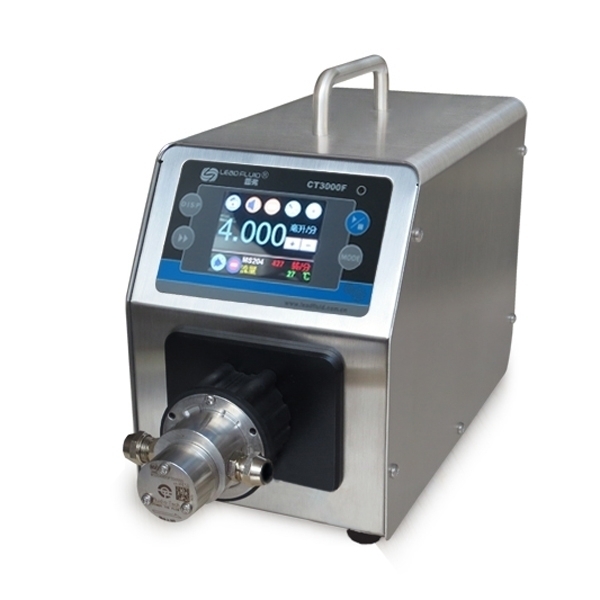

CT3000F Micro Gear Pump

Price range: $2,870.00 through $2,975.00

Product introduction

CT3000F is a high performance, low noise of micro gear pump, brushless servo motor, stainless steel, magnetic drive pump can be realized without pulsation, constant velocity of the fluid flow control.Drives using stainless steel house, color LCD display, touch screen operation, can be easily set parameters.A variety of work mode, flow display, and are suitable for all kinds of experimental areas.A variety of external control way, convenient use together with other devices, more the MODBUS protocol communication, simplify the difficulty of system development.

CT3000F work speed 50-3000 rpm/min, speed resolution 1rpm

Flow: 15-2700mL/min
Max: 1 Channel
SKU: CT3000F Category:

Function and Feature
 • It can be installed a variety of pump heads
•  This pump is suitable for transmission more viscous, high pressure liquid
•  No pulse transmission, low noise
•  Magnetic coupling is designed, easy to maintain
•  Brushless servo drive, high efficiency, no maintenance
•  Choose color LCD display, touch screen operation
•   Display and control the flow rate，
•   It has a variety of working mode
•   Flow calibration wizard, ensure the accuracy of fluid volume
•   Intelligent temperature control function
•   External control signal control, physical isolation, analog control
•   RS485 communication, support the MODBUS protocol
•   Stainless steel house.
•   Wide range power input, adapted to different environment

CT 3000F technical parameters

Main function

Pump head MS204,MS209,MS213
Functions keypad to control start-stop, direction, speed, memory (power lost memory);Foot switch control, external start-stop and external control direction, with physical isolation, input level 5 v / 12 v / 24 v input is optional;0 to 5 v / 0 to 10 v / 4-20 mA speed optional; flow mode, fluid volume distribution mode, time distribution mode, copy distribution mode.
Communication RS485，Support Modbus communication protocol
Display Color LCD display
Direction CW/CCW

Main performance

Flow range 15-2700 mL/min
Speed range 50-3000 rpm/min
Speed resolution 1rpm/min，accuracy:0.5%
Time dispensing 0.1-99.99 seconds
Pause time 0.1-999.9 seconds
Dispensing times 0-999
Adjusting way keypad and touch screen operation
Display mode 65565 Color LCD
power supply AC 90-264V 50Hz/60Hz
Consumption <150W
work environment Environment 0 -40℃ ,humidity <80%
dimension size 342*198* 182mm
Drive weight 5.5kg
IP standard IP31

» CT 3000F suitable pump head

Pump head Gear material Pressure (mPa) Flow range (mL/min) Liquid temperature ℃
MS204 PEEK ≤1.4 15-900 -45-120
MS209 PEEK ≤0.9 30-1800 -45-120
MS213 PEEK ≤0.8 45-2700 -45-120

Additional Information

Weight N/A
