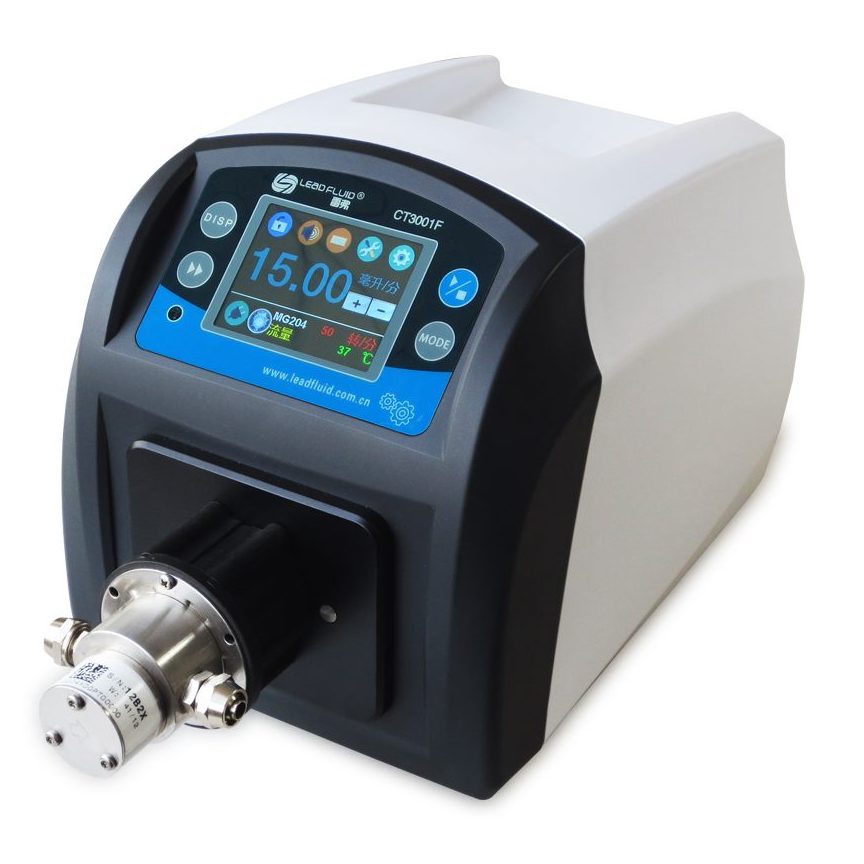

CT3001F Micro Gear Pump

Product introduction

CT3001F is a high performance, low noise of micro gear pump, brushless servo motor, stainless steel, magnetic drive pump head can be realized constant transfering fluid without pulsation.Streamline drives use plastic shell, color LCD display, touch screen operation, can be easily set parameters.A variety of work mode, flow display, and are suitable for all kinds of LAB areas.A variety of external control way, convenient to use with other devices,and the MODBUS protocol communication, simplify the difficulty of system development.

   CT3001F working speed 50-3000 r/min, speed resolution 1rpm.

Flow: 15-2700mL/min
Max: 1 Channel
SKU: CT3001F Category:

Description

Function and Feature
• It can be installed a variety of pump head.
• It is suitable for transmission more viscous, high pressure liquid.
• No pulse transmission, low noise.
• Adopt magnetic coupling is designed, easy to maintain.
• Adopt brushless servo drive, high efficiency, no maintenance.
• Color LCD display, touch screen operation.
• Display the flow rate and flow rate controlable.
• It has a variety of work mode.
• Flow calibration wizard, ensure the accuracy of fluid volume.
• Intelligent temperature control function.
• External control signal control, physical isolation, analog control.
• RS485 communication, support the MODBUS protocol.
• Shape adopt stream line plastic shell.
• Wide range power input, adapted to different environment.

Technical Parameters:

CT3001F parameters

Main Function

Suitable pump headsMG204,MG209,MG213
Main functionKeypad to control start/stop, direction, full speed, memory (power lost memory);Foot switch control external control start/,stop, external control direction, with physical isolation, level 5 v / 12 v / 24 v input is optional;0 to 5 v / 0 to 10 v / 4-20 mA speed control optional;Transfer mode, fluid volume distribution mode, time distribution mode, copy distribution mode.
Communication functionRS485,Support Modbus communication protocol
Display functionTrue color touch screen display
Direction controlCW&CCW

Main Features

Flow range15-2700mL/min
Speed range50-3000RPM
Speed resolution1rpm/min,accuracy:0.5%
Dispensing time0.1-99.99second
Interval time0.1-999.9second
Dispensing times0-999
Control wayKeypad + Touch screen
Display way65565 LCD
Power supplyAC 100-240V 50Hz/60Hz
Power consumption<50W
Working environmentWorking environment :0 -40℃ Relative humidity <80%
Dimension342*198* 182mm
Drive weight3.5kg
IP standardIP31

» CT3001F suitable Pump head

Pump head modelGear materialTransfer pressure (MPa)Flow rate (ml/min)Fluid temperature(℃)
MG204XD0PT00000PEEK≤0.815-900-45-120
MG209XD0PT00000PEEK≤0.830-1800-45-120
MG213XD0PT00000PEEK≤0.345-2700-45-120
MG204XD0TT00000PTFE≤0.815-900-45-50
MG209XD0TT00000PTFE≤0.830-1800-45-50
MG213XD0TT00000PTFE≤0.345-2700-45-50
