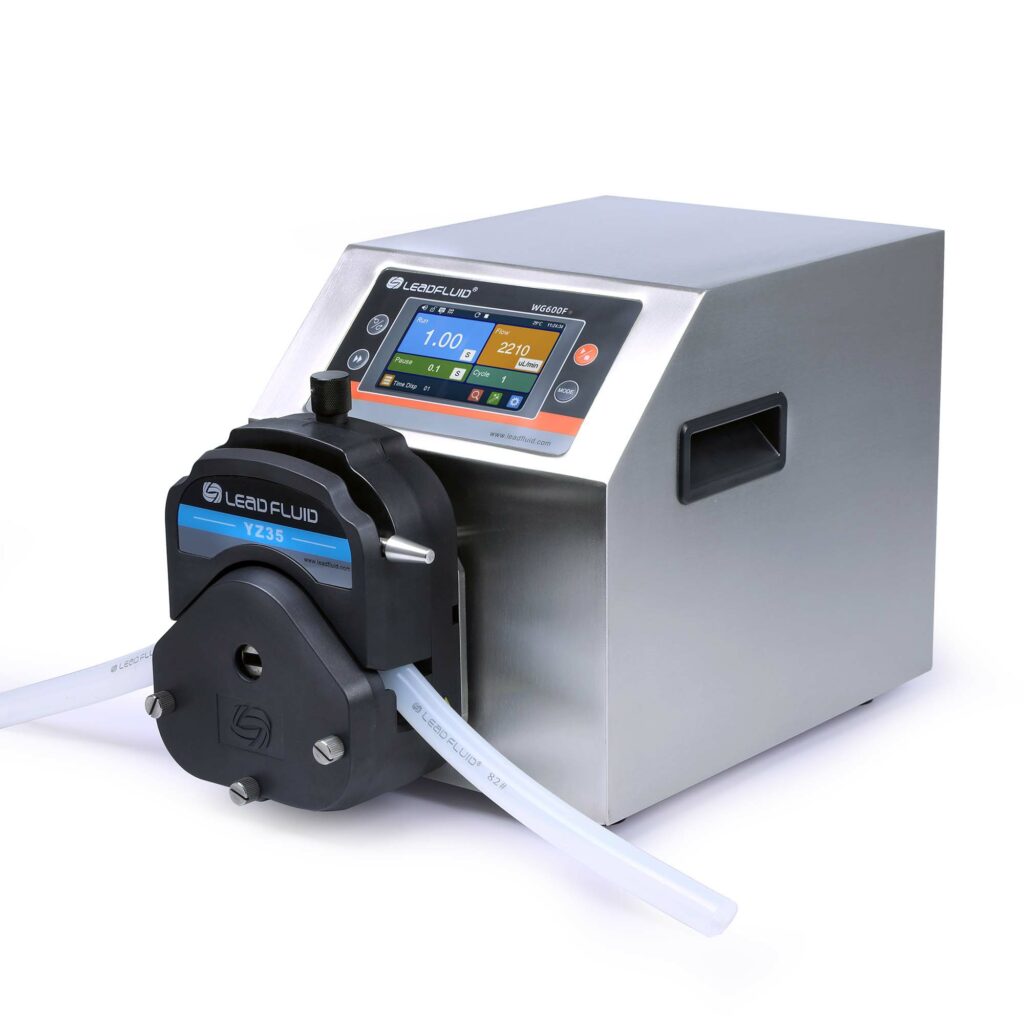

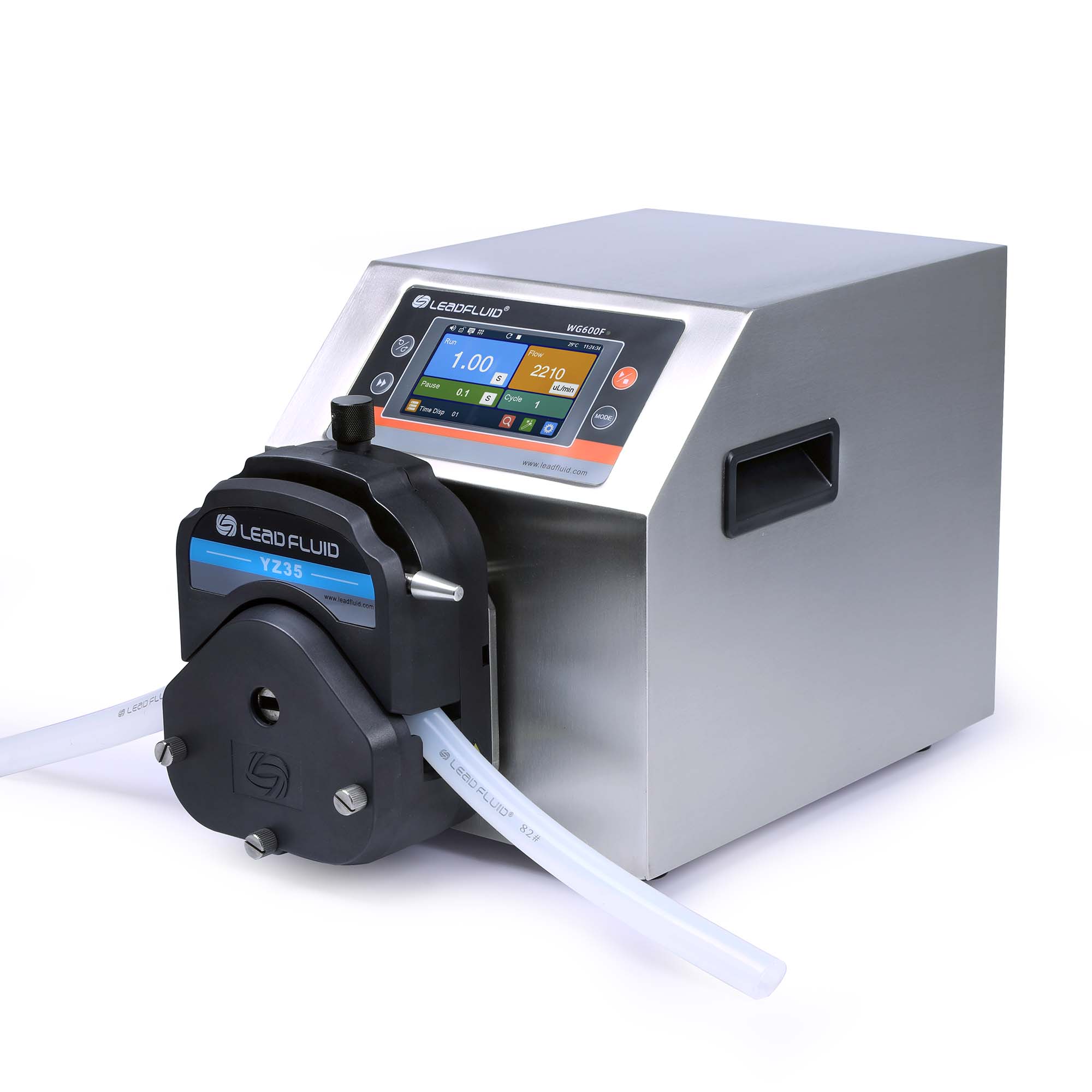

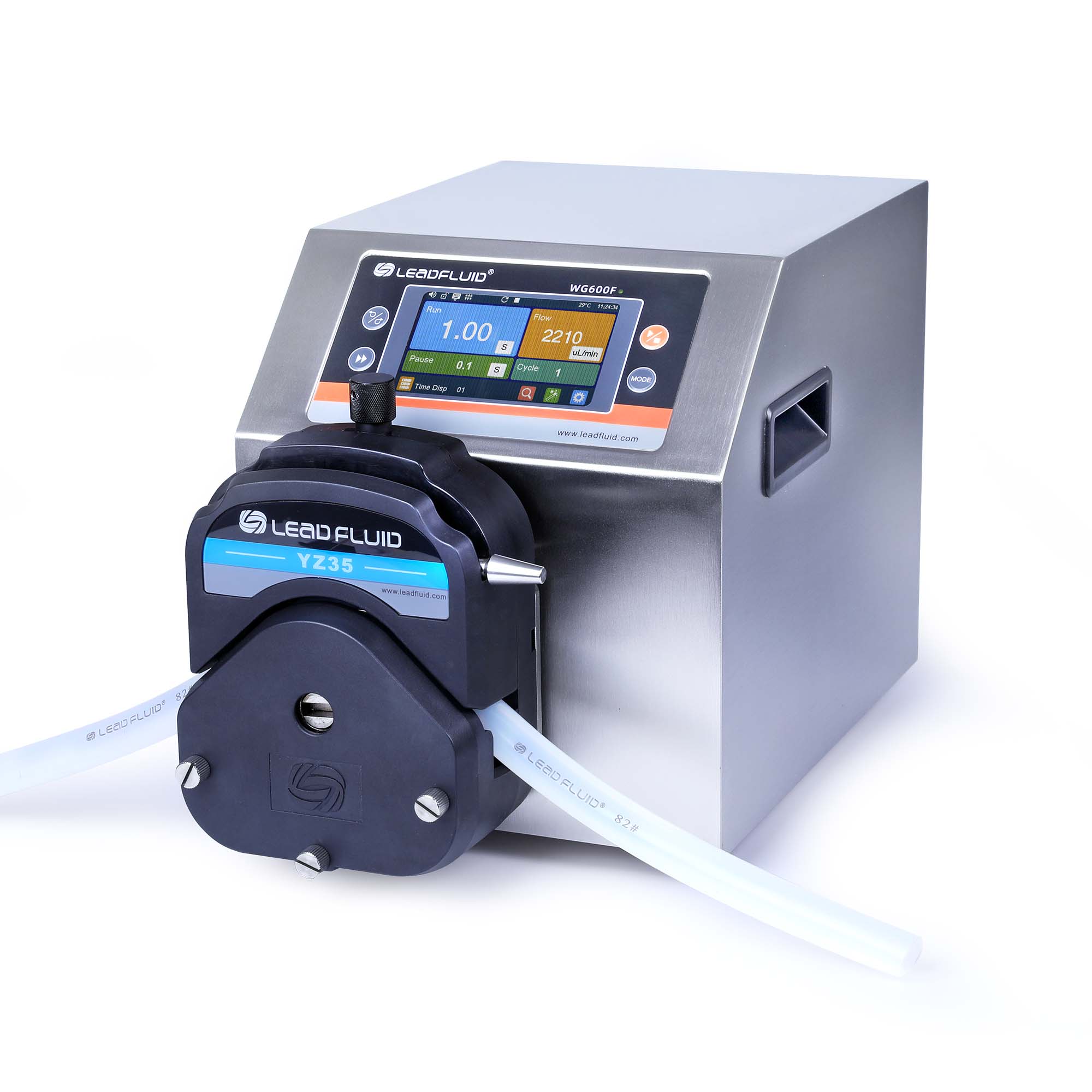

WG600F Intelligent Industrial Peristaltic Pump

$2,750.00$3,375.00

The pump is suitable for transferring and dispensing large amount of fluid in industry. It provides flow range from 0.01 to 13 L/min per channel. The brush-less servo motor drive with large torque has high rotating accuracy and it’s maintenance free. It has not only basic functions such as reversible direction, start/stop, full speed (for fast cleaning) and variable speed, but also three types of distributing mode: time dispensing mode, volume dispensing mode and copy dispensing mode to meets all kinds of complex dispensing requirements. With RS485 MODBUS interface, the pump is easy to be controlled by external device, such as computer, human machine interface or PLC.

Flow: 0.01-13L/min
Max: 2 Channels
SKU: WG600F Category:

Functions and Features

  • Flow range per channel: 0.01-13 L/min.
  • Applicable pump head: YZ35, 2xYZ35.
  • Brushless servo motor drive with large torque, maintenance free, high rotating accuracy.
  • The circuit board with conformal coating makes it dust-proof and moisture-proof.
  • Color LCD displaying, touch screen and keypad for operating.
  • Easy button control to reverse direction, start/stop and run full speed (for cleaning).
  • Speed resolution: 0.1rpm, speed accuracy: 0.5%.
  • Flow rate calibration.
  • Three types of distributing mode: time dispensing mode; volume dispensing mode; copy dispensing mode.
  • Automatically store five groups of working parameters.
  • Professional operating system.
  • Remote infrared control (optional).
  • Anti-interference feature, wide input voltage range for complex power environment.
  • Stainless steel housing, easy to clean, excellent resistance to corrosion of the acid, alkali, sodium and organic solvents.
  • External on/off voltage signal controls start/stop, reversible direction and easy dispensing function, optically coupled isolator. External analog control signal adjusts the rotating speed.
  • With RS485 MODBUS interface, easy to be controlled by other devices.

Specifications

  • Flow range: 0.01-13 L/min
  • Speed range: 0.1-600 rpm
  • Speed resolution: 0.1 rpm
  • Flow accuracy: 0.5%
  • Power supply: AC 100-240V  50Hz/60Hz
  • Power consumption: <400W
  • External on/off control: 5V, 12V (standard), 24V (optional); External analog control: 0-5V (standard); 0-10V, 4-20mA (optional)
  • Communication interface: RS485 MODBUS interface
  • Operating condition: Temperature 0~40°C; Relative humidity < 80%
  • IP grade: IP31
  • Dimensions (L x W x H): 350 x 235 x 315 mm (13.8 x 9.3 x 12.4 inch)
  • Weight: 15 kg (33.1 lbs)

WG600F Applicable Pump Heads and Tubings, Flow Parameters

Drive type Pump head CH Tubing size (mm) Flow rate (L/min) per channel
WG600F YZ35 1 73# 82# 0.01-13

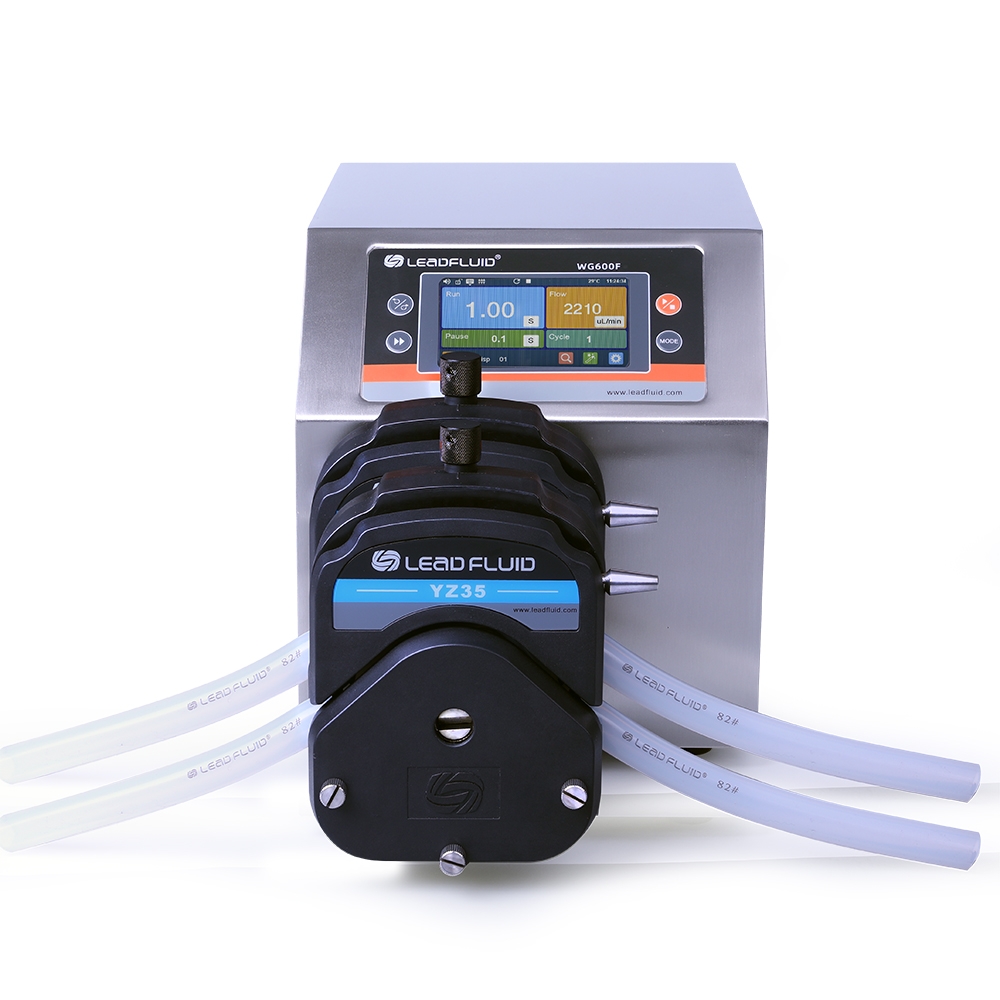

2 x YZ35 2 73# 82# 0.01-13



Additional Information

Weight 40 lbs
Dimensions 20 × 20 × 20 in
