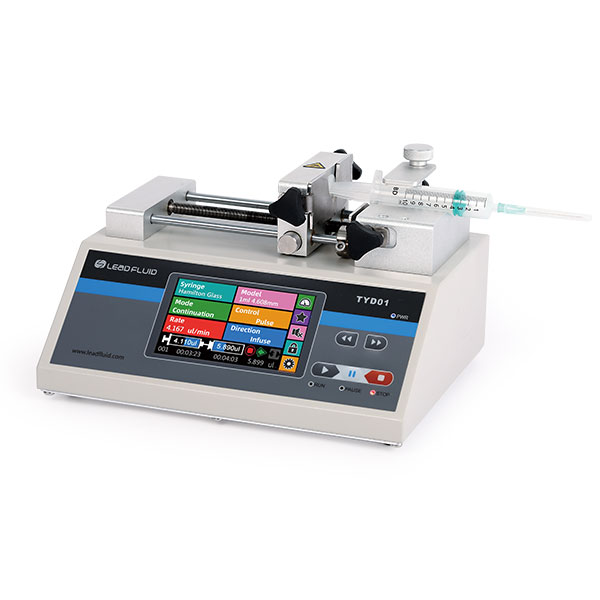

TYD01-01 Laboratory Syringe Pump

$1,524.00

Product introduction

TYD01-01 laboratory syringe pump is a support for a variety of work mode of high precision syringepump, high resolution color LCD, touch screen is convenient fast set parameters, multiple light is clear and confirmed its working status, and supports a variety of syringe to choose, to meet the requirements of different experimental flow and high precision control, and protection agencies and alarm mechanism.Support infusion/withdraw five kinds of working mode.Built-in RS – 485 communication, support the MODBUS protocol, all metal (stainless steel) shell, wide range power input, adapt to various occasions.

TYD01-01 suitable for syringe size 10ul to 60ml,Linear force:1um/min to 150mm/min

Flow: 10uL-60mL
Max: 1 Channel

In stock

SKU: TYD01-01 Category:

Function and Feature
 •  Assembly one syringes.
•  A various of working modes.
•  Color LCD touch screen display, convenient operation.
•  Support screen lock, key mute operation.
•   With lights, buttons, clearly working state;
•  Higher precise control.
•  Syringe protection and  traffic jam alarm;.
•  RS485 communication interface, support the MODBUS protocol.
•  External signal control start-stop and direction;
•  A wide range power input.
•  Full metal shell.

The parameters
 •  Syringe size: 10 ul – 60 ml;
•  Work mode: infusion, withdraw, infusion/withdraw, withdraw/infusion, continuous mode;
•  Channel number: 1;
•  Stroke of pump: 110 mm;
•  pusher advance per microstep: 0.156 um/ustep;
•  linear speed: 1 um/min – 150 um/min;
•  Linear resolution: 1 um/min;
•  Linear travel accuracy: error <± 0.35% (>30% of pump stroke);
•  Linear force: maximum rated: > 16 KGF;
•  Thrust regulation: 1-100% arbitrary adjustable.
•  Syringe selection: built-in main manufacturers, the main model syringe to choose;Can use custom syringe, direct input syringe size& diameter;
•  Flow calibration: through the calibration procedure to obtain more accurate fluid volume;
•  Display: 4.3 -inch color LCD, 480 * 272 resolution, color 65 k;With screen display and transfusion volume, quantity of liquid, flow, operation direction, syringe specification, etc.;Animation display operation status;
•  Operation mode: touch screen + button;
•  Power-off memory:  storing the running parameters automatically.;
•  Other features: pause and stop;The sound tip;The lock parameters;Fast forward and retreat quickly;
•  State signal output: 1 road stop state, 1 state road direction;
•  Control signal input: 1 way down along the priming, 1 way down along the trigger to stop;
•  communication interface: RS485, MODBUS protocol;
•  Applicable power: AC90-264 – v / 20 w;
•  working temperature: 5 to 40 ℃;
•  Relative humidity: < 80% RH;
•  Dimension: 245 * 195 * 133 mm
•  Weight: 3.2 kg

Model selection(Flow rate =Linear rate×Syringe inner sectional area)

Syringe size Syringe ID(mm) Min. flow rate (ul/min) Mix .flow rate(ml/min)
10μl 0.485 0.184 0.027
25μl 0.729 0.417 0.626
50μl 1.03 0.833 0.125
100μl 1.457 1.667 0.250
250μl 2.304 4.169 0.625
500μl 3.256 8.326 1.248
1ml 4.699 17.342 2.601
5ml 11.989 112.890 16.933
10ml 14.427 163.169 24.754
20ml 19.05 285.027 42.754
30ml 21.59 366.090 54.913
60ml 26.594 555.459 83.318
