Pulse damper

$152.00$190.00

SKU: Pulse damper Category:

Pulse damper

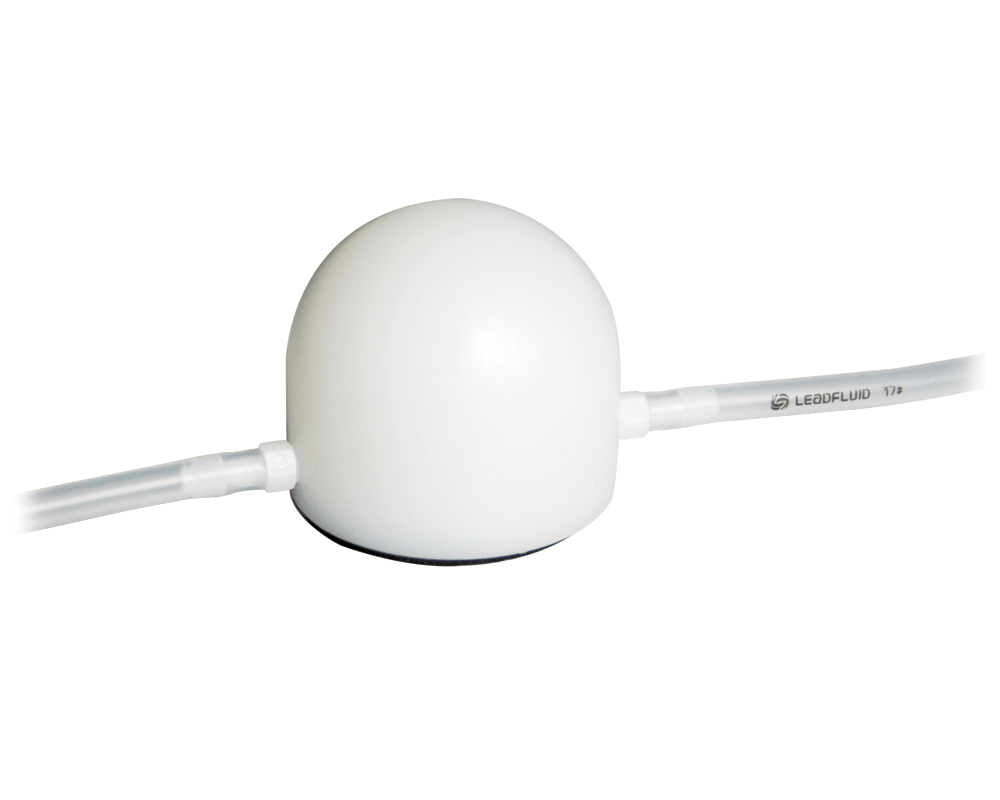

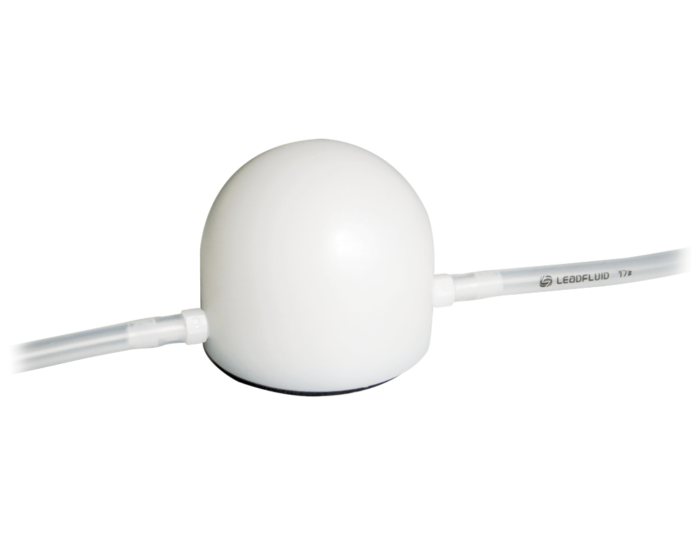

The LEADFLUID ZN90 series of pulsation dampers is a pressurized container, the container is divided into two upper and lower chambers. The lower chamber has a fluid to be transported through, and the upper chamber is a gas. Due to the compressibility of the gas and the instantaneous absorption of the pulse, the system can obtain a stable flow and pressure and slow down the pulsation of the pipeline.

ModelZN90-PEZN90-PTFE
Tube1.6~9.6mm
ConnectExternal thread ~ Pagoda
Volume capacity180mL
Maximum0.3Mpa
Dimensions90x90x90mm
House materialPEPTFE
SealingEPDMFFKM
Fluid temperature0~40℃0~80℃
Temperature change<5°C/min<5°C/min
Weight220g510g

Additional Information

WeightN/A
