Function and Feature
• It can be installed a variety of pump head
• This pump is suitable for transmission more viscous, high pressure liquid
• No pulse transmission, low noise
• Magnetic coupling is designed, easy to maintain
• Brushless drive, high efficiency, no maintenance
• The digital tube display, keystrokes
• Speed display
• Regularly repackaging or dispensing
• External control signal control, physical isolation, analog control
• RS485 communication, support the MODBUS protocol
• Stainless steel shell
• wide range power input, adapted to different environment
The parameters
Main function
| Pump head | MS204,MS209,MS213 |
| Functions | keypad control Start-stop, speed and state memory (power lost memory);Foot switch control, external start-stop and external control direction, input physical isolation, level 5 v / 12 v / 24 v input is optional; 0 to 5 v / 0 to 10 v / 4-20 ma speed optional; Time dispensing function |
| Communication | RS485，Support Modbus communication protocol |
| Display | display speed and mode |
| Direction | CW/CCW |
Main performance
| Flow range | 90-2700ml/min |
| Speed range | 300-3000rpm/min |
| Speed resolution | 1rpm/min; accuracy 3% |
| Adjusting way | Keypad |
| Display mode | 4 LED digital display |
| Power supply | AC 88-264V 50Hz/60Hz（standard） |
| consumption | <150W |
| Working environment | Environment 0~ 40℃ humidity <80% |
| Dimension size | 320X150X 237 mm |
| Drive weight | 5.5kg |
| IP standard | IP31 |

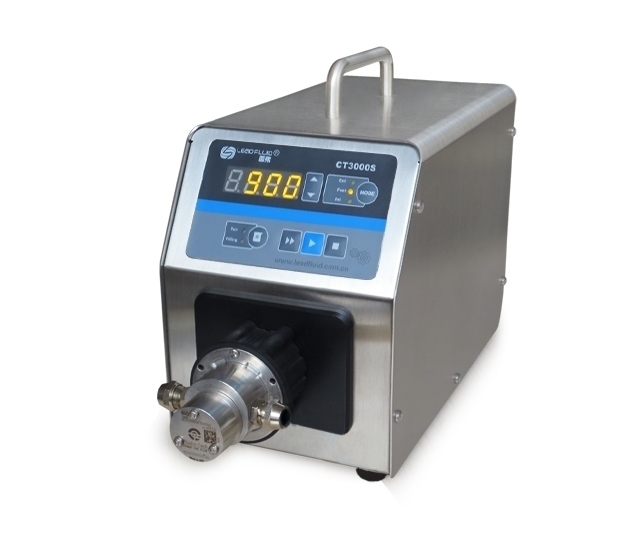

CT3000S suitable Pump head
| Pump head | Gear material | Pressure (mPa) | Flow range (mPa) | Liquid temperature ℃ |
| MS204 | PEEK | ≤1.4 | 90-900 | -45-120 |
| MS209 | PEEK | ≤0.9 | 180-1800 | -45-120 |
| MS213 | PEEK | ≤0.8 | 270-2700 | -45-120 |
