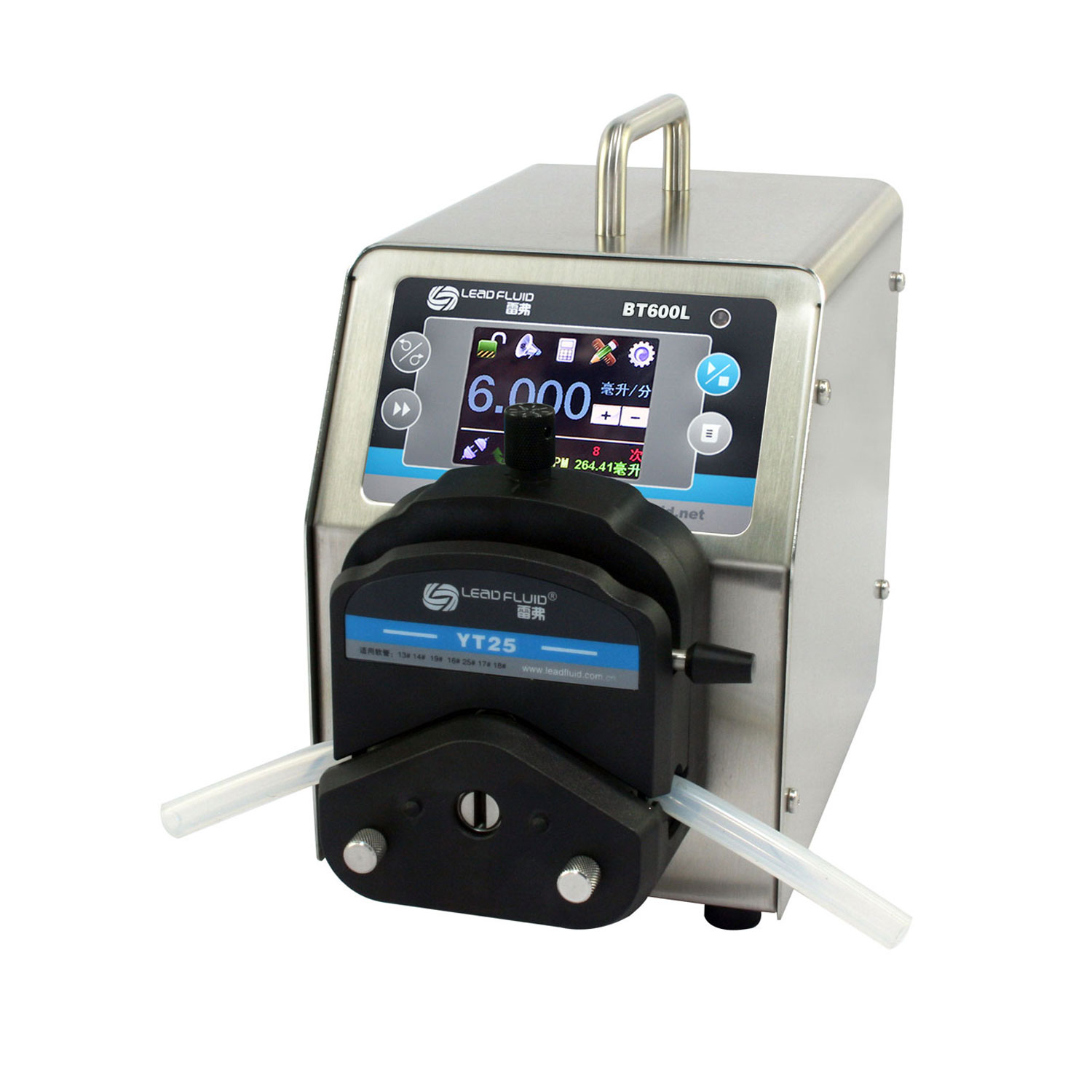

BT600L Intelligent Flow Peristaltic Pump

$1,370.00$1,675.00

BT600L intelligent peristaltic pump provides flow range from 0.006 to 2900 mL/min. It offers not only intuitive and clear interface with color LCD touch screen, but also advanced features such as flow rate calibration and anti-drip function for accurate flow transfer. Easy Dispense Mode is available to dispense the recorded volume by pressing the DISPENSE key or using a footswitch. The system minimizes working noise due to the intelligent cooling fan control. With RS485 MODBUS interface, the pump is easy to communicate with external device, such as PC, HMI or PLC.

Flow: 0.006-2900mL/min
Max: 2 Channels
SKU: BT600L Category:

Functions and Features

  • Color LCD displaying, touch screen and keypad.
  • Reversible direction, start/stop and adjustable speed.
  • Flow rate calibration.
  • Flow rate display and control; Cumulative dispense volume display.
  • Anti-drip function ensures dispense accuracy.
  • 0.2% high precision rotating speed control with 0.1 rpm speed resolution.
  • Precise motor control technology improves dispense accuracy compared to the traditional time dispense mode.
  • Professional operating system, configure system with setup wizard.
  • Intelligent temperature control to minimize working noise.
  • External logic level signal can control start/stop, direction and easy dispense function; external analog signal can adjust the rotating speed. Control signal is optically isolated.
  • With RS485 MODBUS interface, easy to communicate with external device.
  • Internal double-layer isolation structure, circuit board with conformal coating makes the pump dust-proof and moisture proof.
  • Anti-electromagnetic interference feature, wide input voltage range for complex power environment.
  • Stainless steel enclosure, easy to clean, resistant to the corrosion of the acid, alkali, sodium and organic solvents.
  • Drive multi-channels and various types of pump heads.
  • Optional footswitch and remote infrared control.

Specifications

  • Flow range: 0.006-2900 mL/min
  • Speed range: 0.1-600 rpm
  • Speed resolution: 0.1 rpm
  • Speed accuracy: 0.2%
  • Power supply: AC 220V±10%, 50Hz/60Hz; AC 110V±10%, 50Hz/60Hz
  • Power consumption: < 60W
  • External logic level control signal: 5V, 12V (standard), 24V (optional)
  • External analog control signal: 0-5V (standard), 0-10v, 4-20mA (optional)
  • Communication interface: RS485 MODBUS
  • Ambient temperature: 0~40°C
  • Relative humidity: < 80%
  • IP grade: IP31
  • Dimensions (L x W x H): 226 x 150 x 238 mm (8.90 x 5.91 x 9.37 inch)
  • Weight: 5.5 kg (12.1 lbs)

BT600L Suitable Pump Heads and Tubing, Flow Parameters

Drive type Pump heads Ch Tubing size Flow rate per channel (mL/min)
BT600L
(304SS case)
YZ15 1 13# 14# 16# 19# 25# 17# 0.006-1700
YZ25 1 15# 24# 0.16-1700
2 x YZ15 2 13# 14# 16# 19# 25# 17# 0.06-1700
2 x YZ25 2 15# 24# 0.16-1700
YT15 1 13# 14# 16# 19# 25# 17# 18# 0.006-2300
YT25 1 15# 24# 35# 36# 0.16-2900
2 x YT15 2 13# 14# 16# 19# 25# 17# 18# 0.006-2300

Additional Information

Weight 17 lbs
Dimensions 11 × 12 × 17 in
