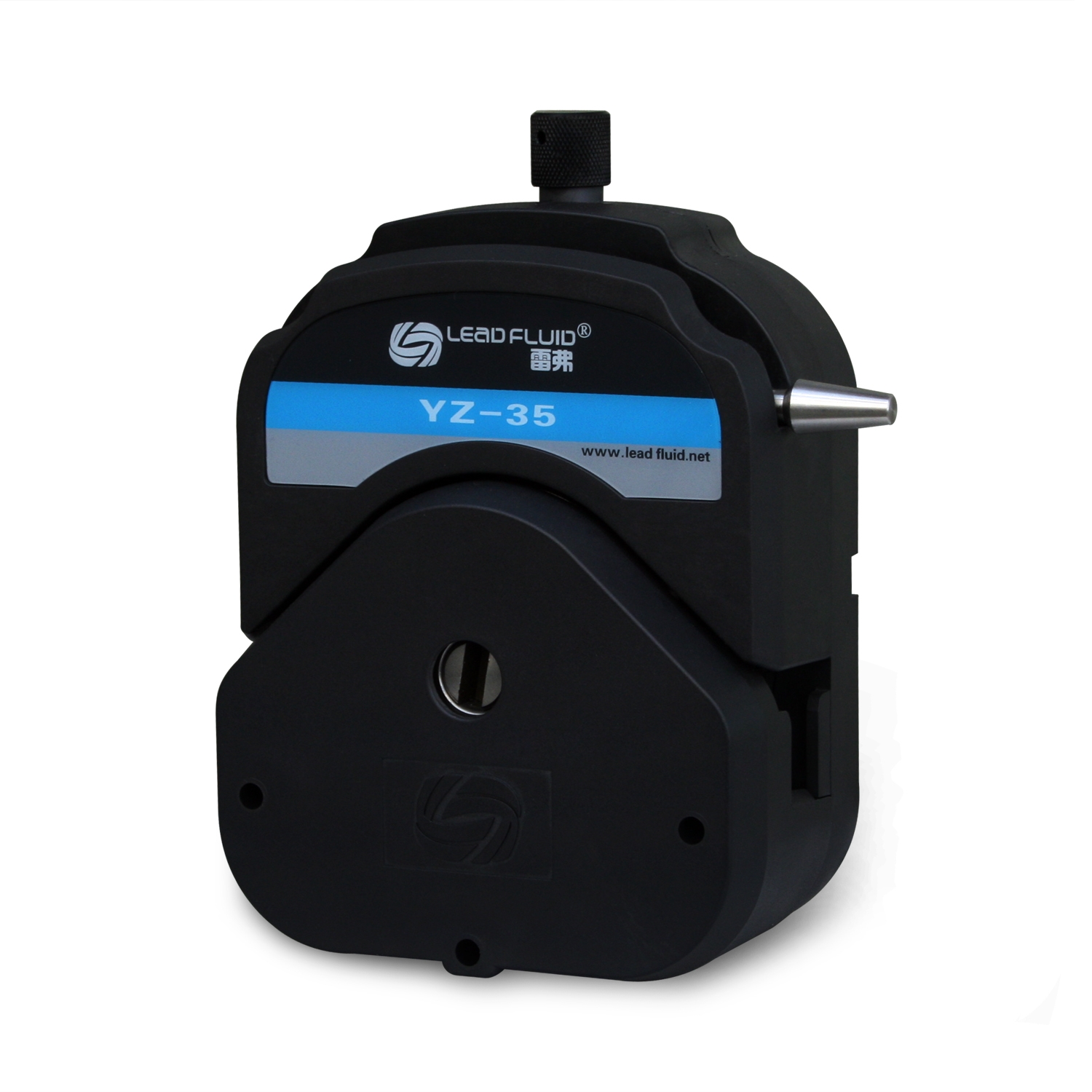

Features
Load various tubings; easy-load type, compact structure. Can be mounted in tandem(up to 2). Pump head with PPS material is resistant to organic solvents and other corrosion liquid. Solid and durable.
Specifications:
- Flow range: 100~13,000mL/min
- Applicable tubes: 73 #, 82 #
- Shell material: PPS
- Roller material: 304 stainless steel
- Roller number: 3
- Gap adjustment: Micro-adjustment
- Working temperature: work continuously under 200 °C
- Chemical compatibility: resistant to acid, alkali and organic solvent
Flow Rate vs rpm
| YZ35 (Flow rate ml/min) |
rpm | Tubing | |
| 73# | 82# | ||
| 1 | 13 | 22 | |
| 10 | 133 | 217 | |
| 30 | 400 | 650 | |
| 150 | 2000 | 3250 | |
| 350 | 4667 | 7583 | |
| 600 | 8000 | 13000 | |
